2P+E French outlet +block-device grey - 16213

Pdf
Vimar - 16213 - 2P+E French outlet +block-device grey
Vimar - 16213 - 2P+E French outlet +block-device grey

16213
Wiring devices / Traditional wiring devices / IDEA / Devices

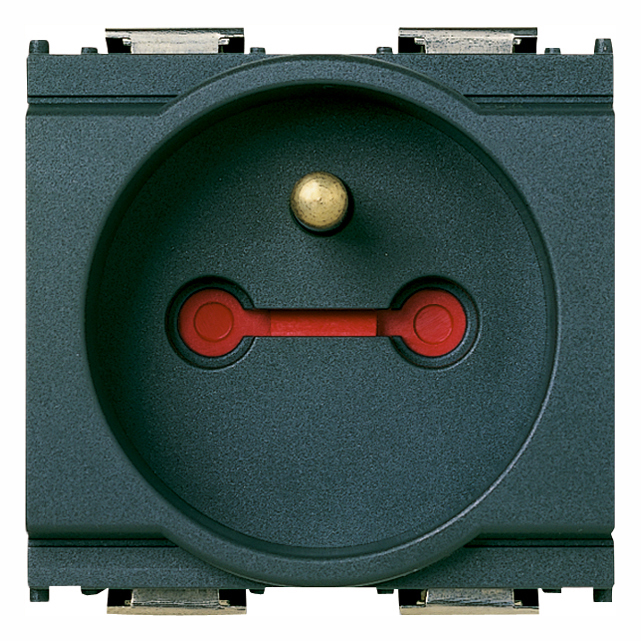

2P+E French outlet +block-device grey
2P+E 16 A 250 V~ SICURY socket outlet, French standard, with locking device for the insertion of special purpose plugs, grey - 2 modules. Provided with releasing device 01079

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Socket outlet
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
Yes
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
49,80 mm
Device height
50,10 mm
Device depth
35,50 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352088986
1 NR
5.1x4.3x5.3 [cm]
45.53 [g]
Barcode Qty 20 NR
8007352088993
20 NR
26.9x11.6x9 [cm]
988.47 [g]
