2P+E 16A P17/11 outlet grey - 16203

Pdf
Vimar - 16203 - 2P+E 16A P17/11 outlet grey
Vimar - 16203 - 2P+E 16A P17/11 outlet grey

16203
Wiring devices / Traditional wiring devices / IDEA / Devices

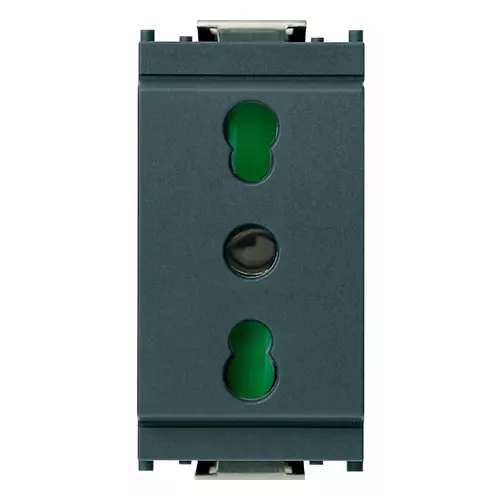

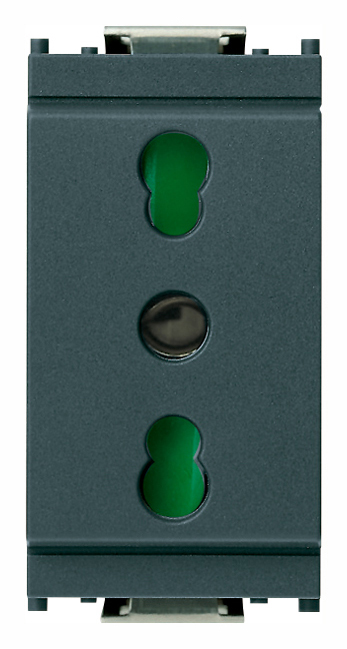

2P+E 16A P17/11 outlet grey
2P+E 16 A 250 V~ SICURY Bpresa socket outlet, Italian standard P17/11, grey

Product Status
3 - Active

Drawings

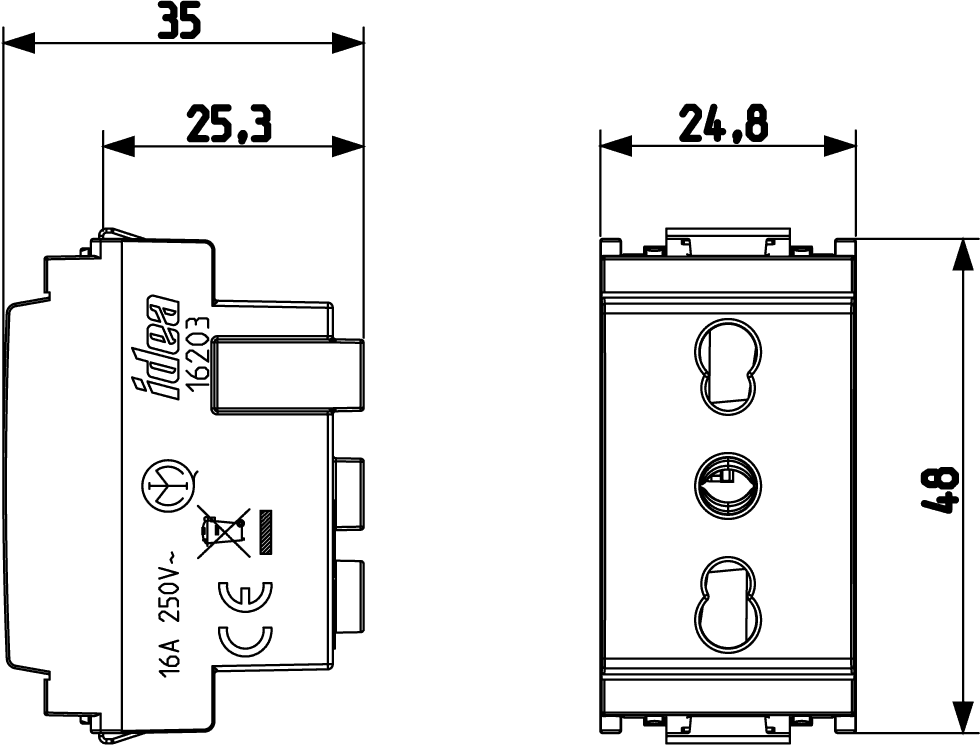

view encumbered art. 16203
PNG DXF

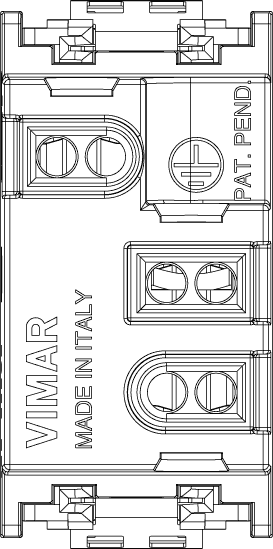

rear view art. 16203
PNG DXF

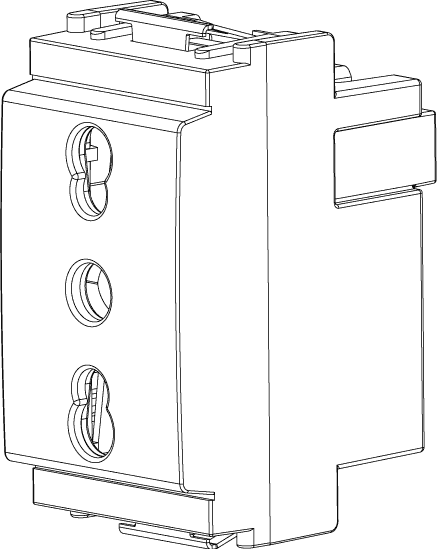

3D view art. 16203
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type Bipasso
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
24,80 mm
Device height
50,10 mm
Device depth
35,00 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352001961
1 NR
4.1x2.8x5.3 [cm]
31.67 [g]
Barcode Qty 50 NR
8007352000117
50 NR
21.4x11.6x14.2 [cm]
1,646.07 [g]
Barcode Qty 500 NR
8007352263048
500 NR
57.5x22.5x30 [cm]
16,992 [g]
Barcode Qty 10,500 NR
8007352308541
10,500 NR
80x120x103 [cm]
368,000 [g]
