2P NO 16A push +key grey - 16185

Pdf
Vimar - 16185 - 2P NO 16A push +key grey
Vimar - 16185 - 2P NO 16A push +key grey

16185
Wiring devices / Traditional wiring devices / IDEA / Devices

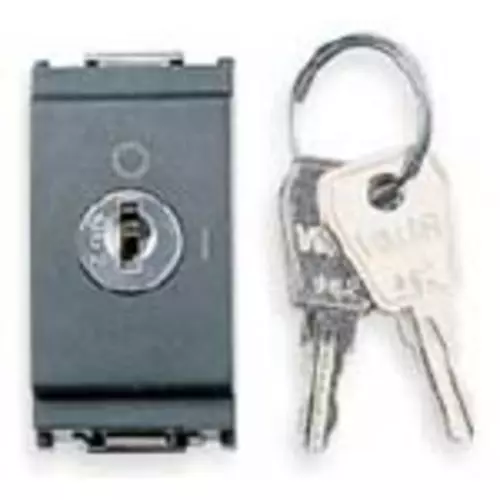

2P NO 16A push +key grey
2P NO 16 A 250 V~ key-operated push button, grey

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
0
Number of modules (module system)
100
Number of poles
2
Nominal voltage
250 V
Rated current
16,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
24,80 mm
Device height
50,10 mm
Device depth
32,80 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

20. IQC - Argentina

28. NSW - Australia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352000940
1 NR
5.1x2.8x5.3 [cm]
53.07 [g]
Barcode Qty 20 NR
8007352001534
20 NR
27x11.6x6 [cm]
1,136.27 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
