2P 16(3)A 1-way switch +key grey - 16165

Pdf
Vimar - 16165 - 2P 16(3)A 1-way switch +key grey
Vimar - 16165 - 2P 16(3)A 1-way switch +key grey

16165
Wiring devices / Traditional wiring devices / IDEA / Devices

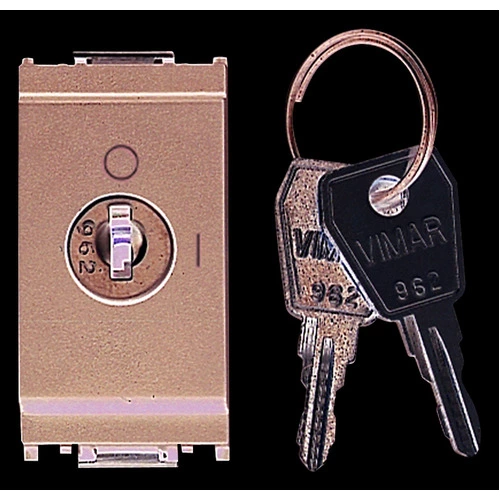

2P 16(3)A 1-way switch +key grey
Independent mounting 2P 16(3) A 250 V~ key-operated 1-way switch, grey. To be installed with the appropriate accessories from the Idea series. Protection degree: IP20, Degree of pollution: II, Overvoltage category: III, for conductors from 1.5 mm2 to 4 mm2, complete circuit disconnection, Tracking index: PTI250, Glow wire 850°C

Product Status
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Key
Assembly arrangement
Other
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
24,80 mm
Device height
50,10 mm
Device depth
32,80 mm
Built-in depth
32,80 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

20. IQC - Argentina

28. NSW - Australia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352000896
1 NR
5.1x2.8x5.3 [cm]
52 [g]
Barcode Qty 20 NR
8007352001312
20 NR
27x11.6x6 [cm]
1,107.67 [g]
