1P NO 16A push +NC contact grey - 16107

Pdf
Vimar - 16107 - 1P NO 16A push +NC contact grey
Vimar - 16107 - 1P NO 16A push +NC contact grey

16107
Wiring devices / Traditional wiring devices / IDEA / Devices

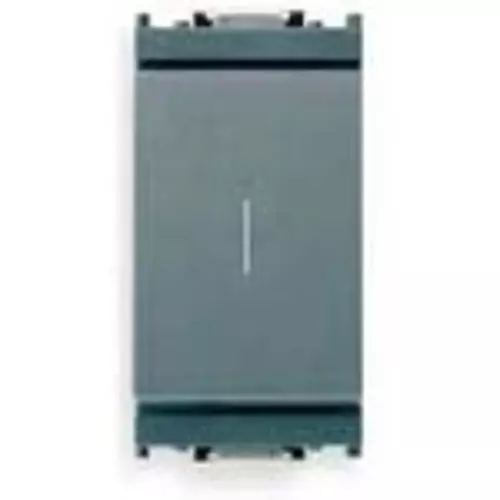

1P NO 16A push +NC contact grey
1P NO 16 A 250 V~ breaking-circuit pushbutton (ON), with NC 16 A auxiliary contact, grey

Product Status
2 - Will be discontinued

Drawings

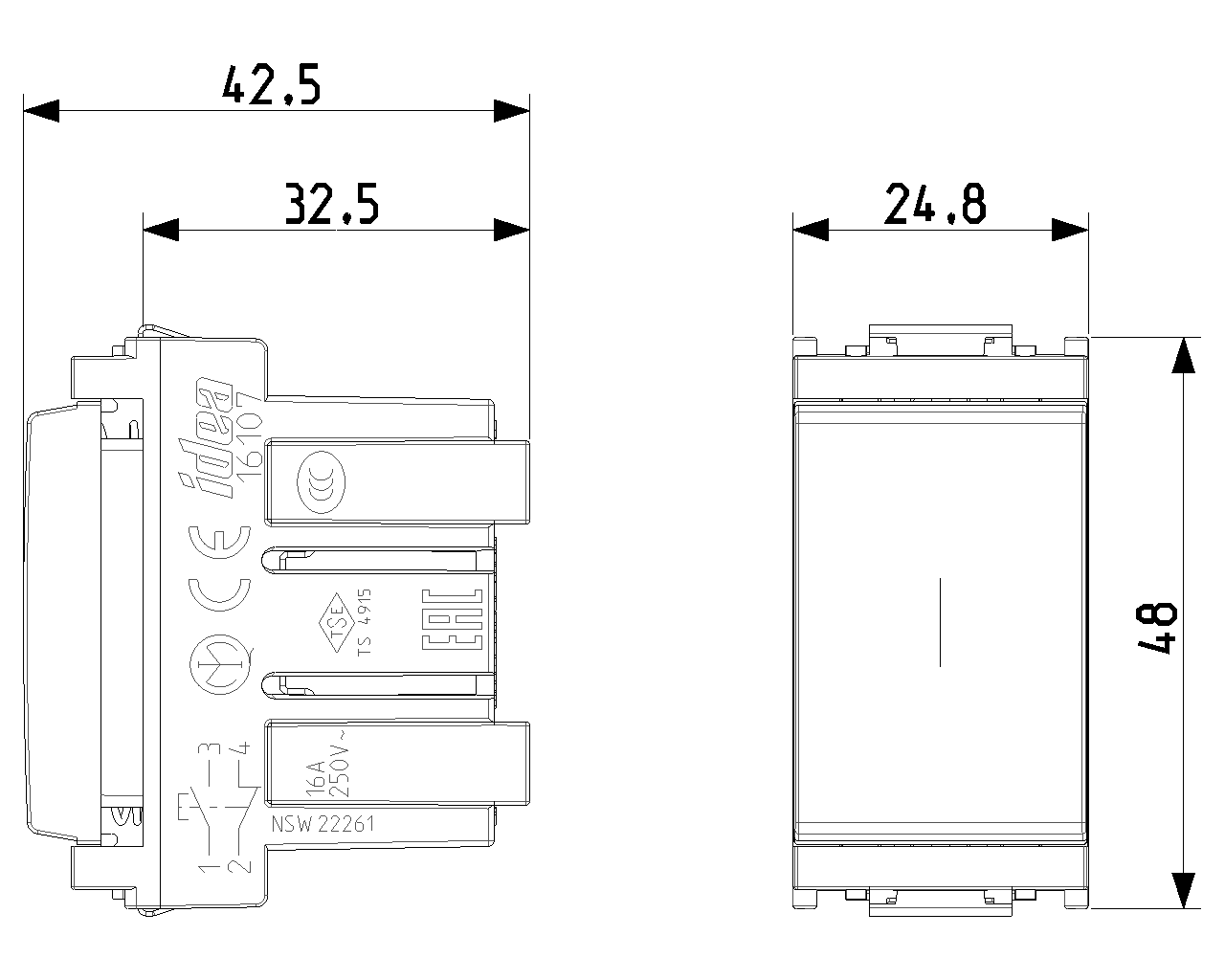

view encumbered art. 16107
PNG DXF

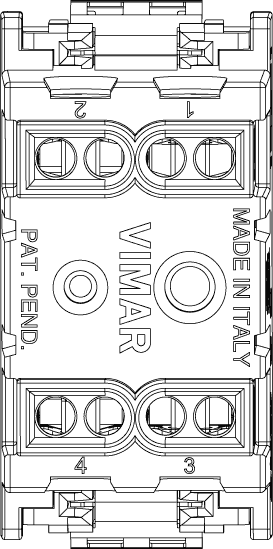

rear view art. 16107
PNG DXF

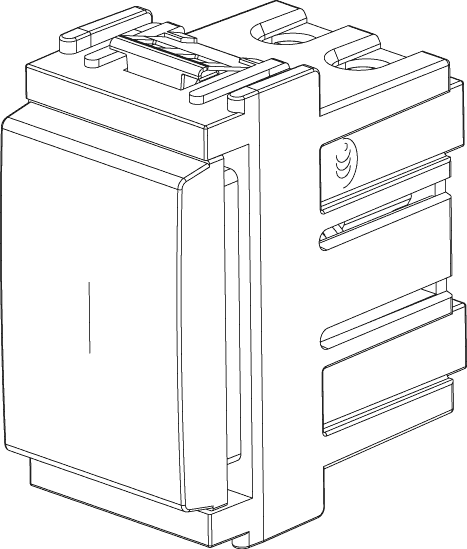

3D view art. 16107
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
16,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
24,80 mm
Device height
50,10 mm
Device depth
36,10 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

19. NOM - Mexico

28. NSW - Australia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352003712
1 NR
5.1x2.8x5.3 [cm]
33.73 [g]
Barcode Qty 20 NR
8007352000216
20 NR
27x11.6x6 [cm]
747.4 [g]
