1P NO 16A push grey - 16101

Pdf
Vimar - 16101 - 1P NO 16A push grey
Vimar - 16101 - 1P NO 16A push grey

16101
Wiring devices / Traditional wiring devices / IDEA / Devices

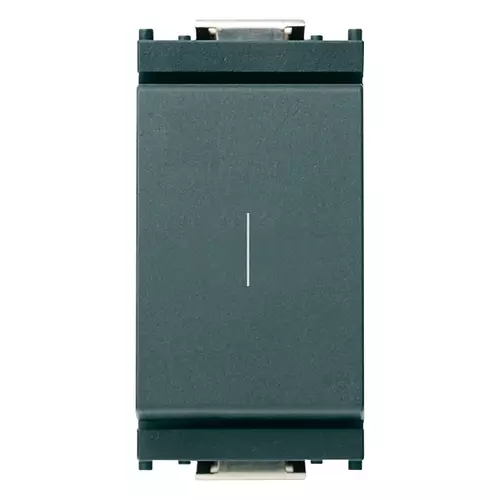

1P NO 16A push grey
1P NO 16 A 250 V~ push button (ON), grey

Product Status
3 - Active

Drawings

view encumbered art. 16101
PNG DXF

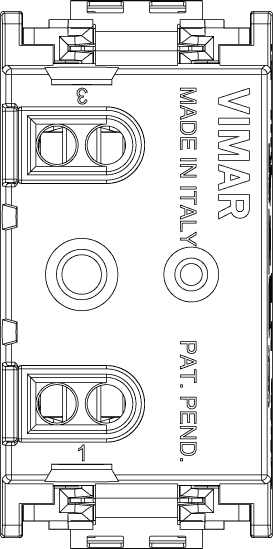

rear view art. 16101
PNG DXF

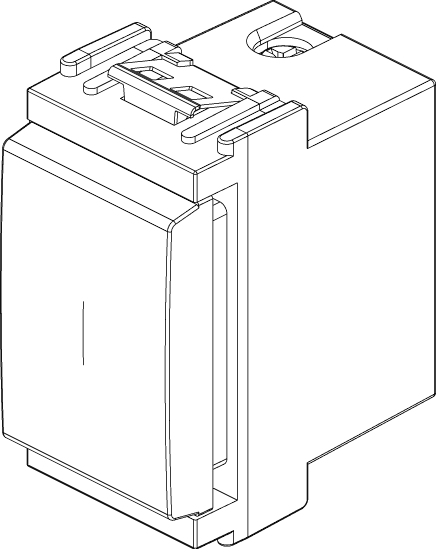

3D view art. 16101
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
16,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
24,80 mm
Device height
50,10 mm
Device depth
39,30 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352021822
1 NR
5.1x2.8x5.3 [cm]
28.13 [g]
Barcode Qty 20 NR
8007352000193
20 NR
27x11.6x6 [cm]
631.4 [g]
Barcode Qty 120 NR
8007352650411
120 NR
37.5x30x13.5 [cm]
4,140 [g]
