1P NO 10A push general symbol lums grey - 16090

Pdf
Vimar - 16090 - 1P NO 10A push general symbol lums grey
Vimar - 16090 - 1P NO 10A push general symbol lums grey

16090
Wiring devices / Traditional wiring devices / IDEA / Devices

1P NO 10A push general symbol lums grey
1P NO 10 A 250 V~ push button, general symbol, luminous, for signalling unit. Provided without signalling unit

Product Status
3 - Active

Drawings

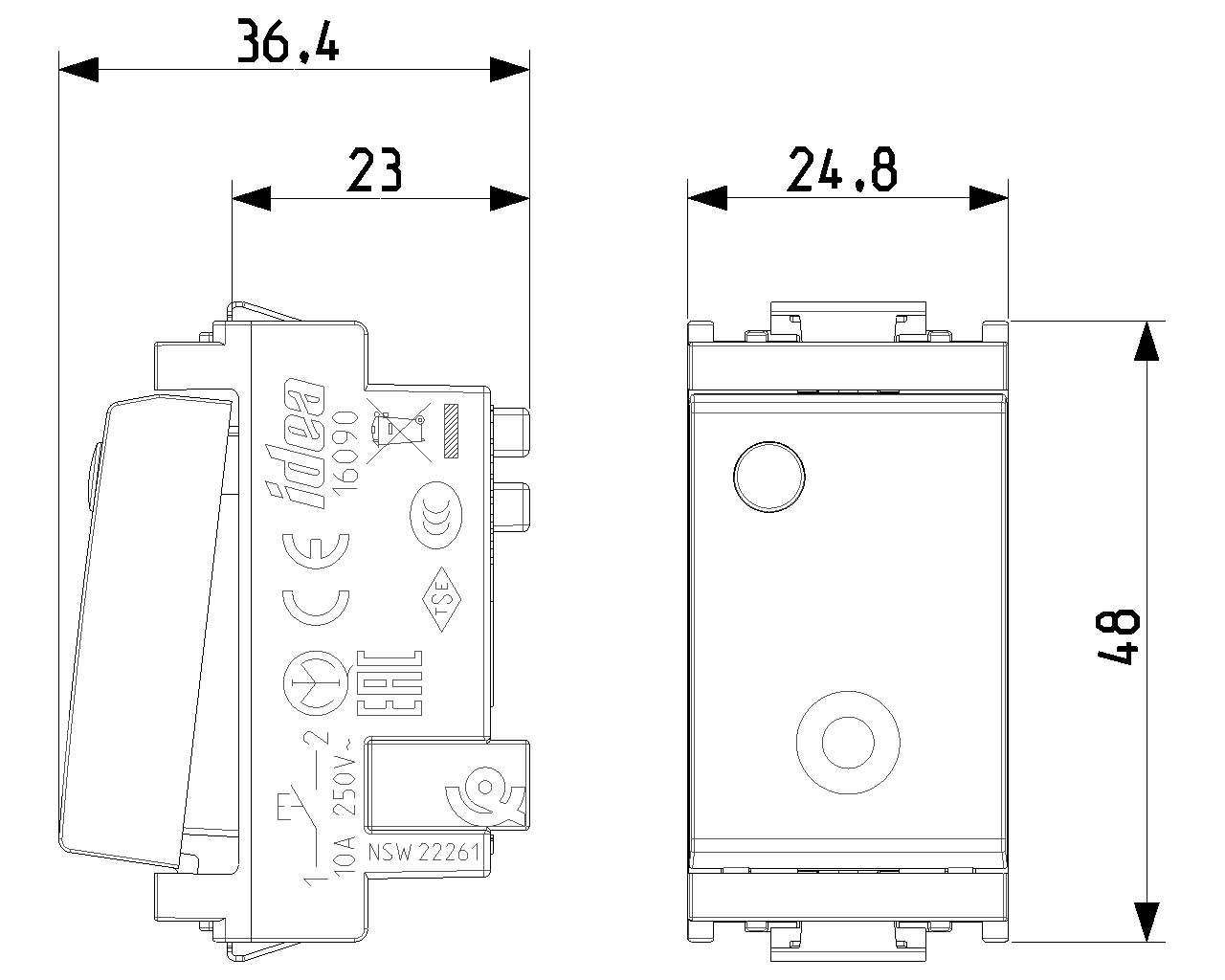

view encumbered art. 16090
PNG DXF

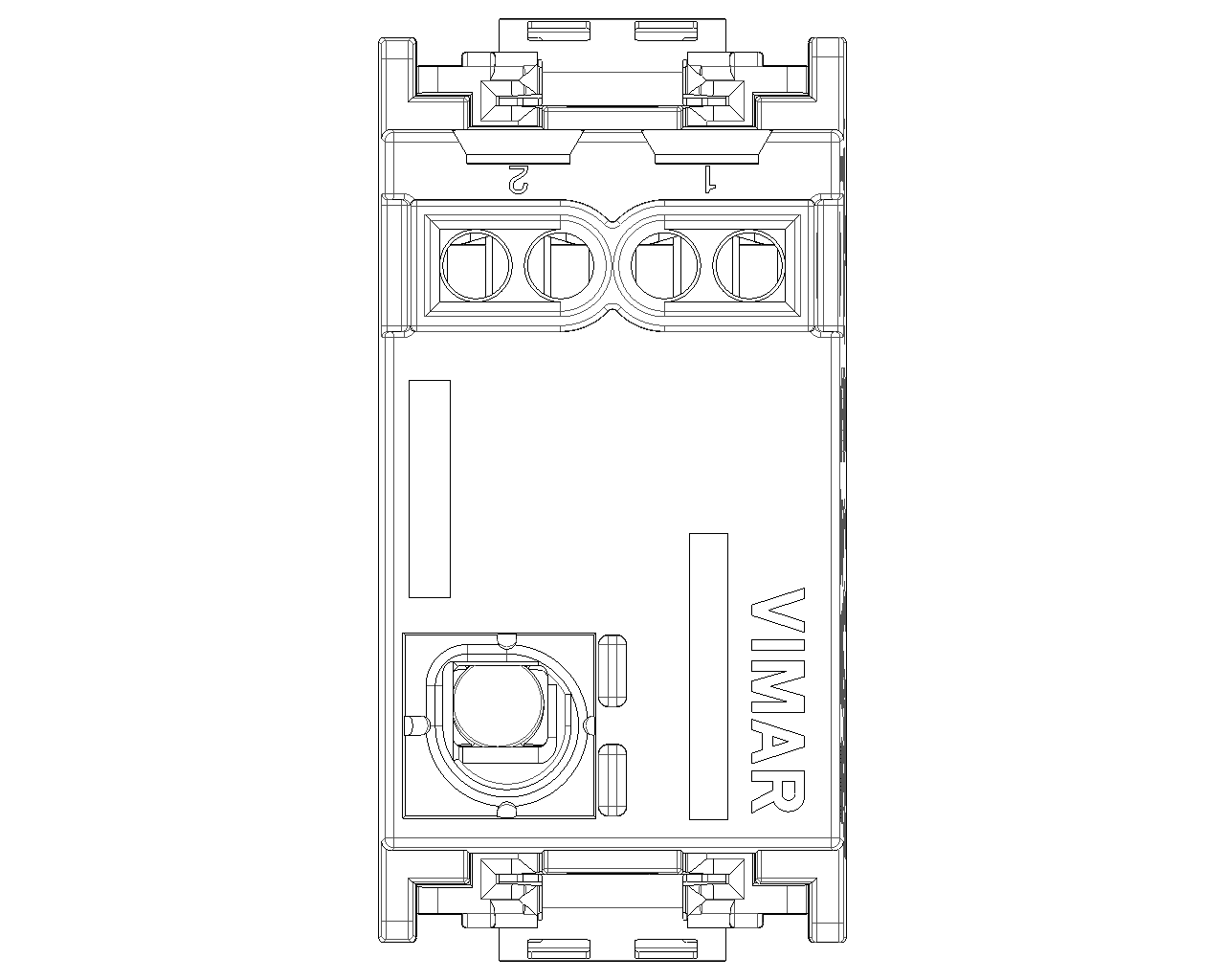

rear view art. 16090
PNG DXF
3D view art. 16090
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
24,80 mm
Device height
50,10 mm
Device depth
36,10 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352078321
1 NR
4.1x2.8x5.3 [cm]
24.73 [g]
Barcode Qty 20 NR
8007352078338
20 NR
21.4x11.6x6 [cm]
550.6 [g]
Barcode Qty 200 NR
8007352641372
200 NR
30.5x25.5x22.5 [cm]
6,180 [g]
