1P 16AX 2-way switch grey - 16005

Pdf
Vimar - 16005 - 1P 16AX 2-way switch grey
Vimar - 16005 - 1P 16AX 2-way switch grey

16005
Wiring devices / Traditional wiring devices / IDEA / Devices

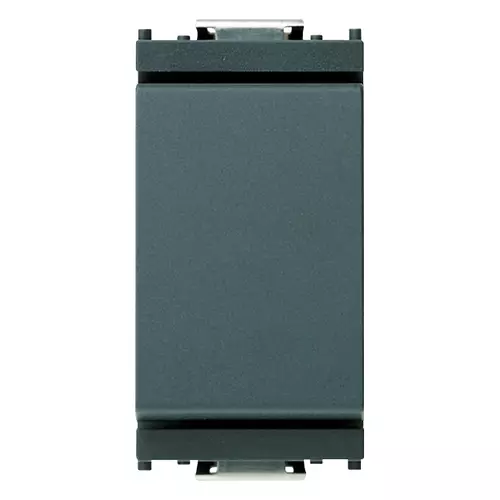

1P 16AX 2-way switch grey
1P 16 AX 250 V~ 2-way switch, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 16005
PNG DXF
rear view art. 16005
PNG DXF
3D view art. 16005
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
24,80 mm
Device height
50,10 mm
Device depth
36,50 mm
Built-in depth
23,30 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352002814
1 NR
4.1x2.8x5.3 [cm]
30 [g]
Barcode Qty 50 NR
8007352000056
50 NR
21.4x11.6x14.2 [cm]
1,582.47 [g]
Barcode Qty 500 NR
8007352263178
500 NR
57.5x22.5x30 [cm]
16,328.67 [g]
