Plate 3M BS techn. fir - 14648.32

Pdf
Vimar - 14648.32 - Plate 3M BS techn. fir
Vimar - 14648.32 - Plate 3M BS techn. fir

14648.32
Wiring devices / Traditional wiring devices / PLANA / Cover plates

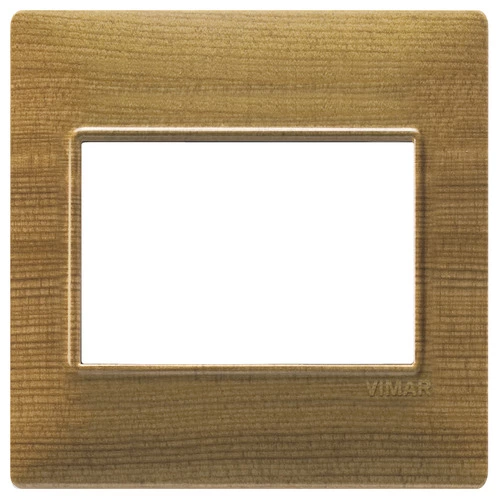

Plate 3M BS techn. fir
3-module cover plate, British Standard, technopolymer, fir

Product Status
2 - Will be discontinued

You may also be interested in

14608
14608 - Frame 3M BS

Drawings

view encumbered art. 14648.32
PNG DXF
rear view art. 14648.32
PNG DXF
3D view art. 14648.32
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Other
RAL-number (similar)
1011
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
95,00 mm
Height
95,00 mm
Depth
9,00 mm
Built-in width
95,00 mm
Built-in height
95,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

08. ASTA - UK

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352371958
1 NR
14.5x9.5x0.9 [cm]
15.2 [g]
Barcode Qty 10 NR
8007352376441
10 NR
11.7x9.8x10.3 [cm]
193.8 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
