Plate 4M (2+2) 71mm Reflex mint - 14643.44

Pdf
Vimar - 14643.44 - Plate 4M (2+2) 71mm Reflex mint
Vimar - 14643.44 - Plate 4M (2+2) 71mm Reflex mint

14643.44
Wiring devices / Traditional wiring devices / PLANA / Cover plates

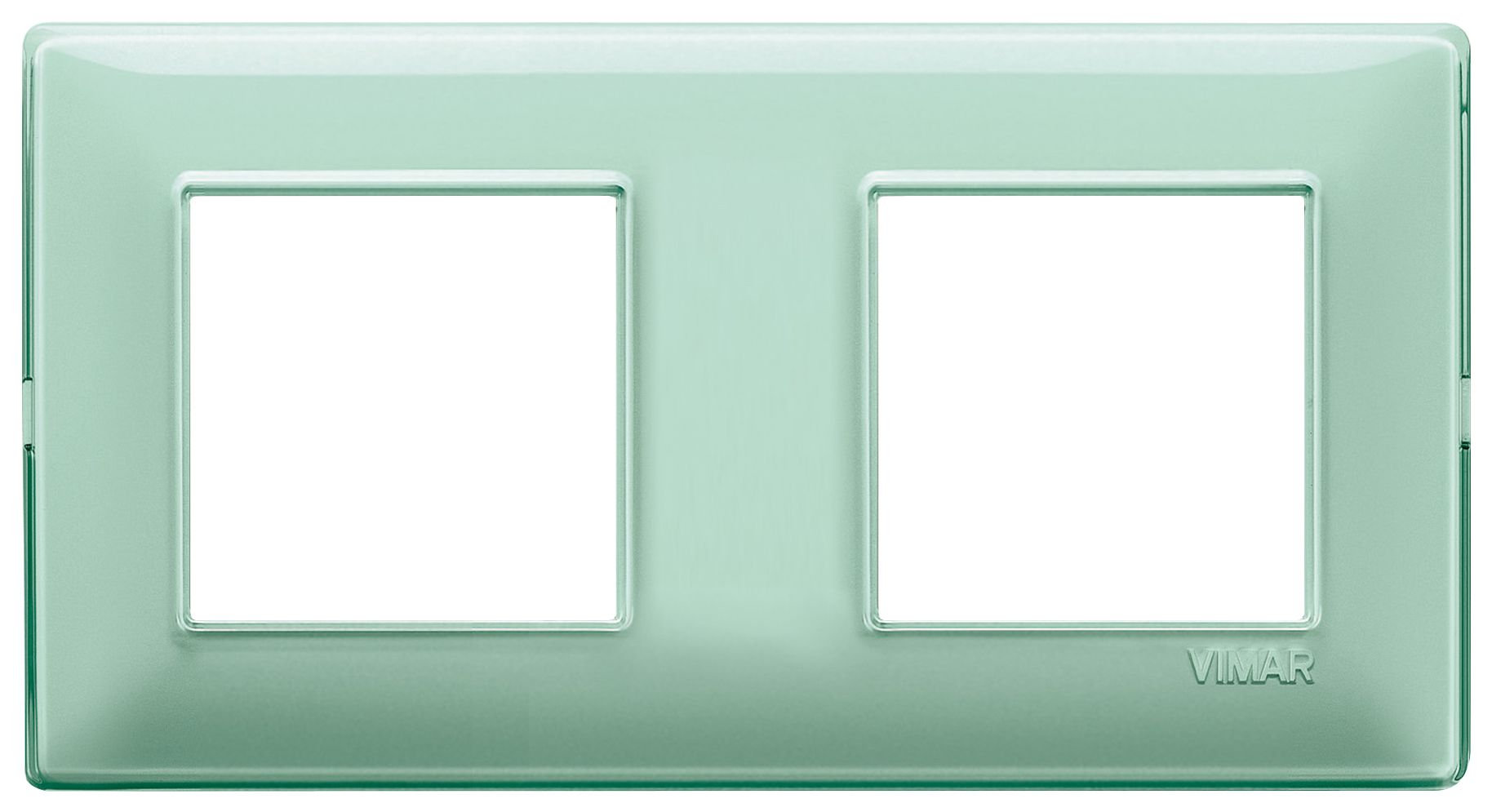

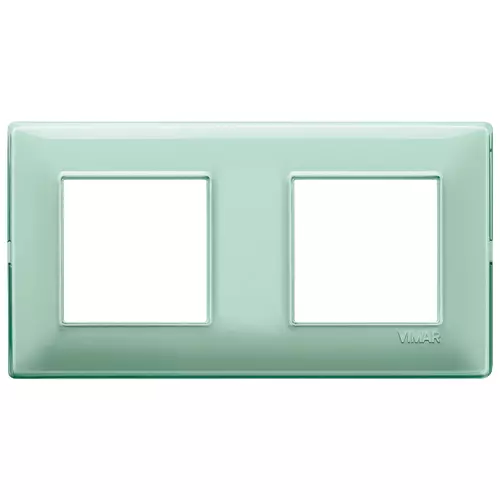

Plate 4M (2+2) 71mm Reflex mint
4-module cover plate (2+2, 71 mm distance between centres), technopolymer, Reflex mint

Product Status
3 - Active

You may also be interested in

14603
14603 - Frame 2M without screws 71mm

Drawings

view encumbered art. 14643.44
PNG DXF
rear view art. 14643.44
PNG DXF
3D view art. 14643.44
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Plastic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Green
RAL-number (similar)
6019
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
151,00 mm
Height
80,00 mm
Depth
9,30 mm
Built-in width
151,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352433083
1 NR
20x8x0.9 [cm]
32 [g]
Barcode Qty 5 NR
8007352433090
5 NR
21.6x9x5.3 [cm]
202.4 [g]
