Frame 21M +screws - 14621

Pdf
Vimar - 14621 - Frame 21M +screws
Vimar - 14621 - Frame 21M +screws

14621
Wiring devices / Traditional wiring devices / PLANA / Mounting frames

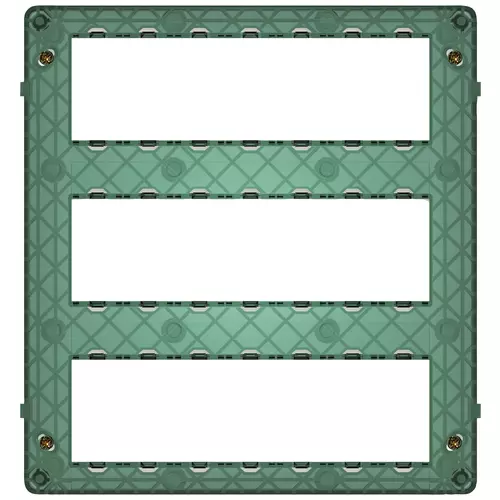

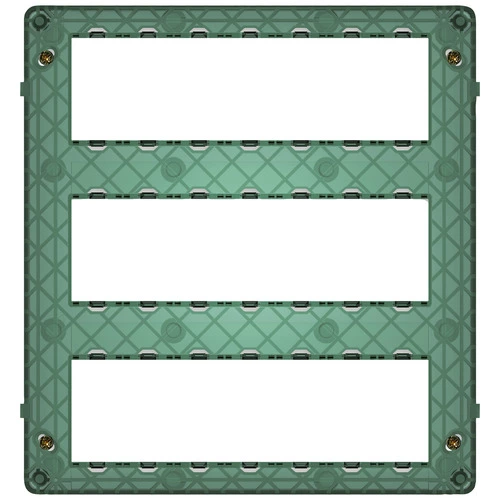

Frame 21M +screws
21(7+7+7)-module mounting frame, with screws, for flush mounting box V71321 or for surface mounting boxes 09921

Product Status
3 - Active

You may also be interested in

07937
07937 - Screw for frame fixing - 35mm
07939
07939 - Screw for frame fixing - 50 mm

Drawings

view encumbered art. 14621
PNG DXF

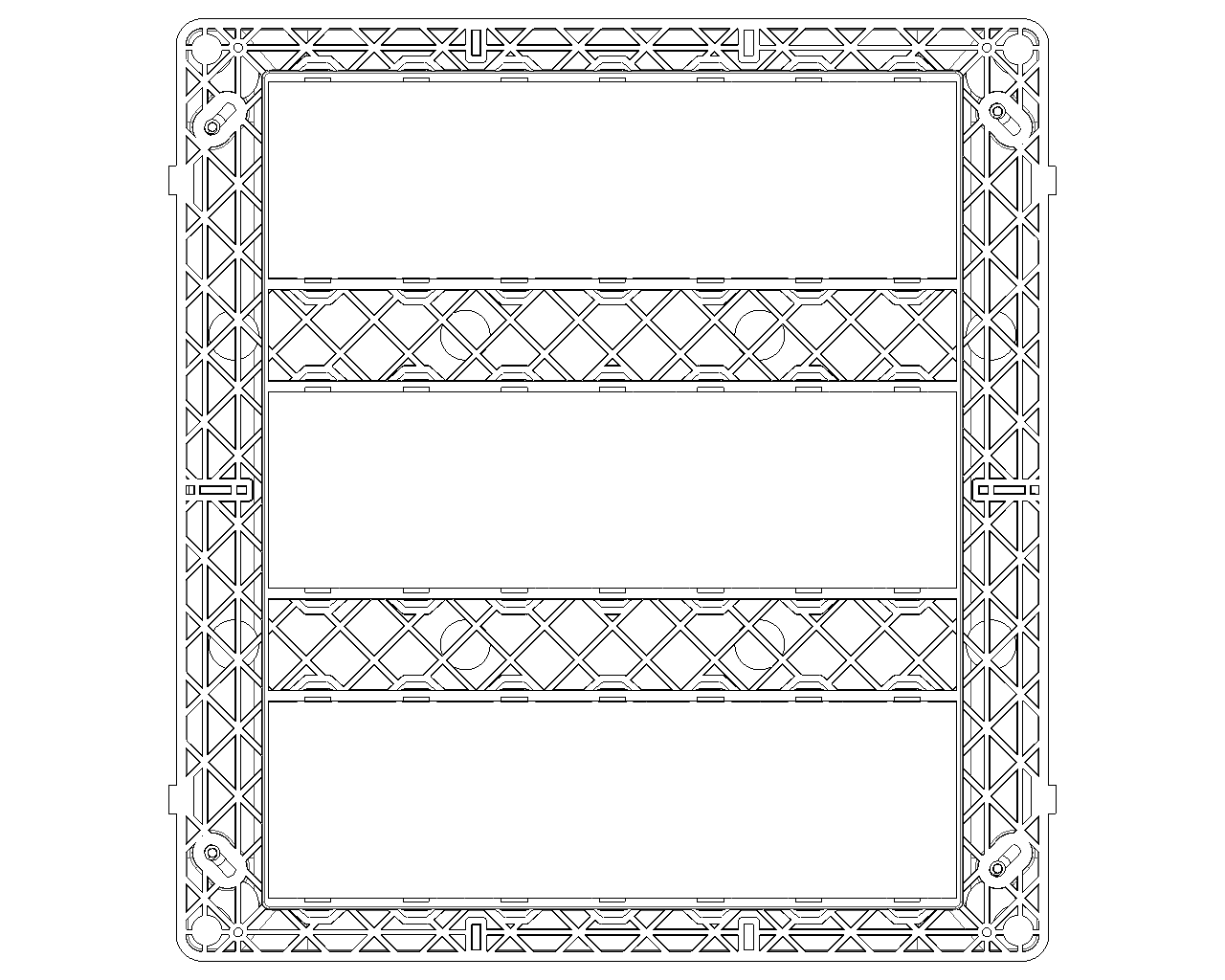

rear view art. 14621
PNG DXF

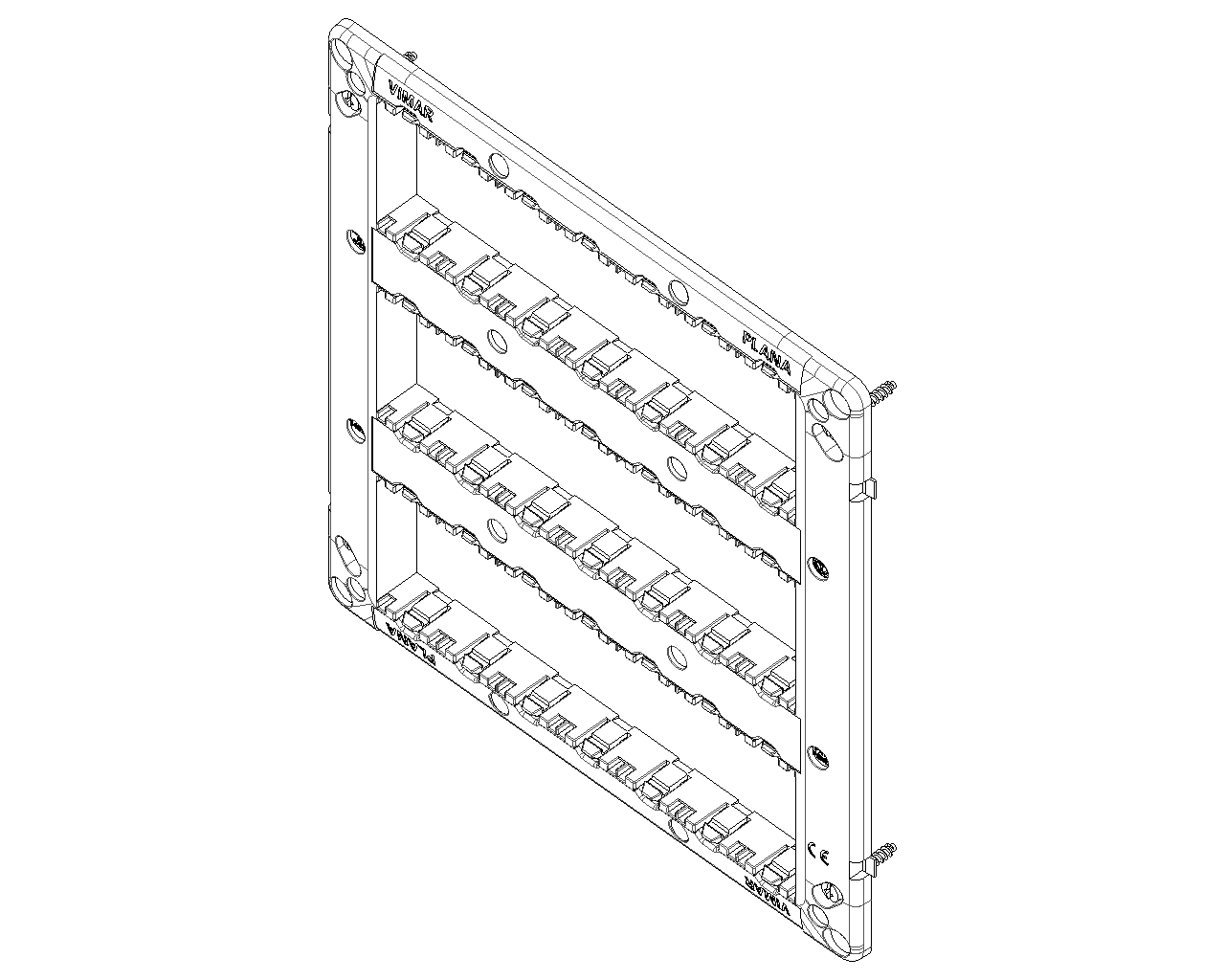

3D view art. 14621
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
3
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352116979
1 NR
19x22x2 [cm]
130.2 [g]
Barcode Qty 10 NR
8007352116986
10 NR
28.4x24.4x16.4 [cm]
1,513.47 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
