Frame 14M +screws - 14620

14620
Wiring devices / Traditional wiring devices / PLANA / Mounting frames

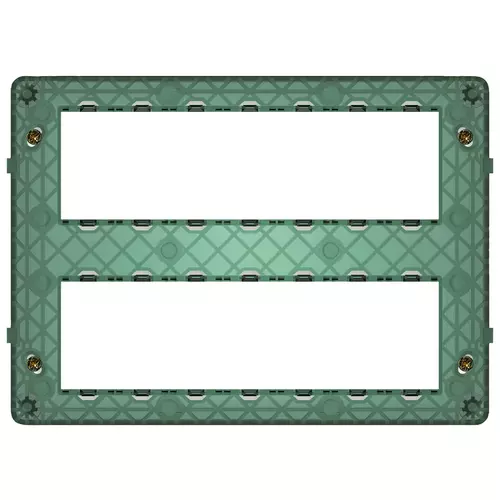

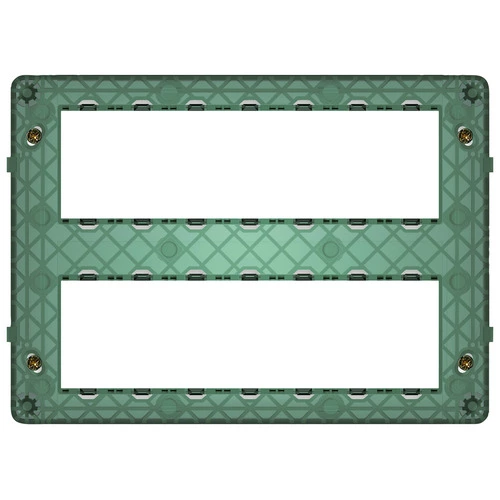

Frame 14M +screws
14 (7+7)-module mounting frame, with screws, for V71320, V71620 and V71720 flush or 09920 surface mounting boxes

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

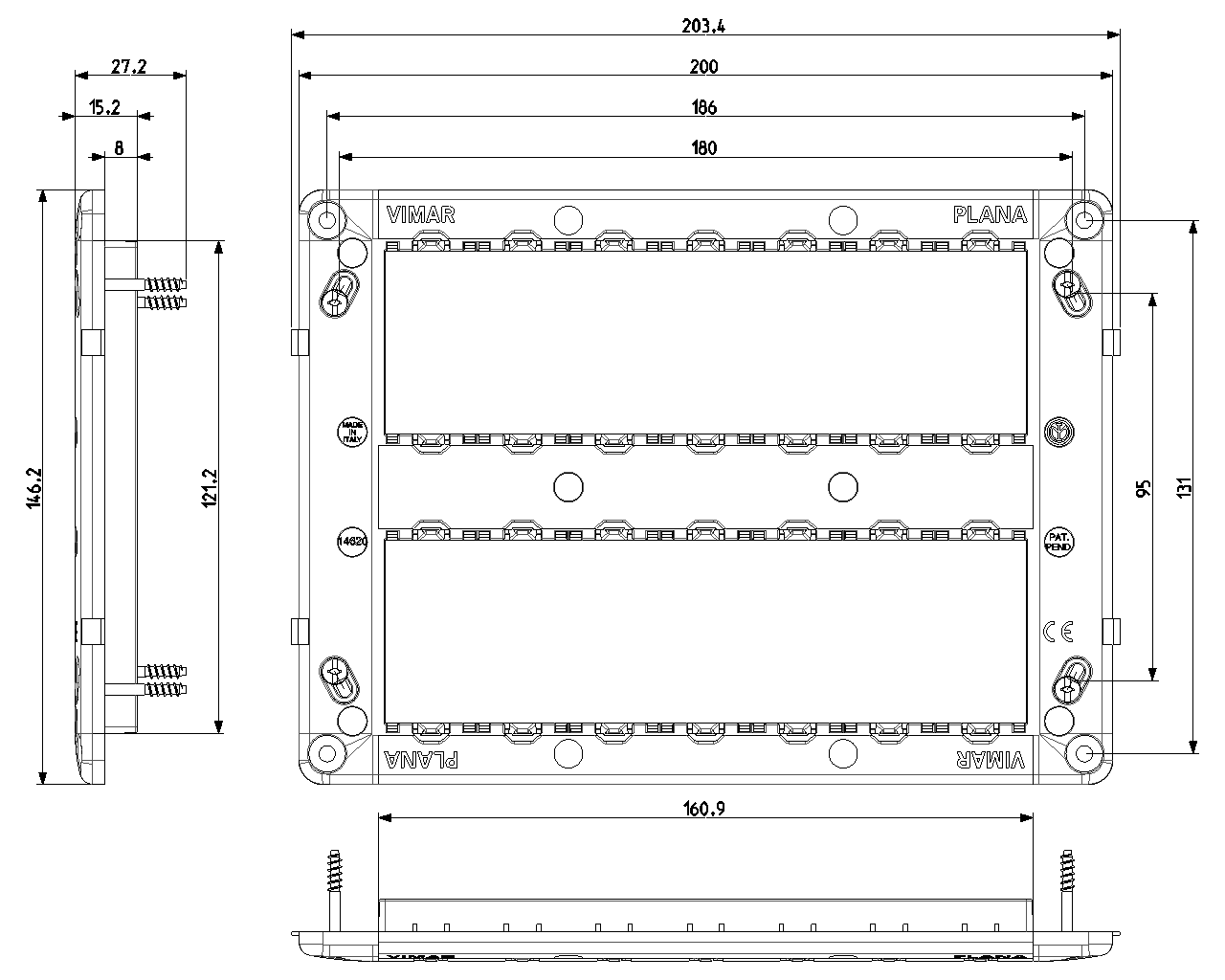

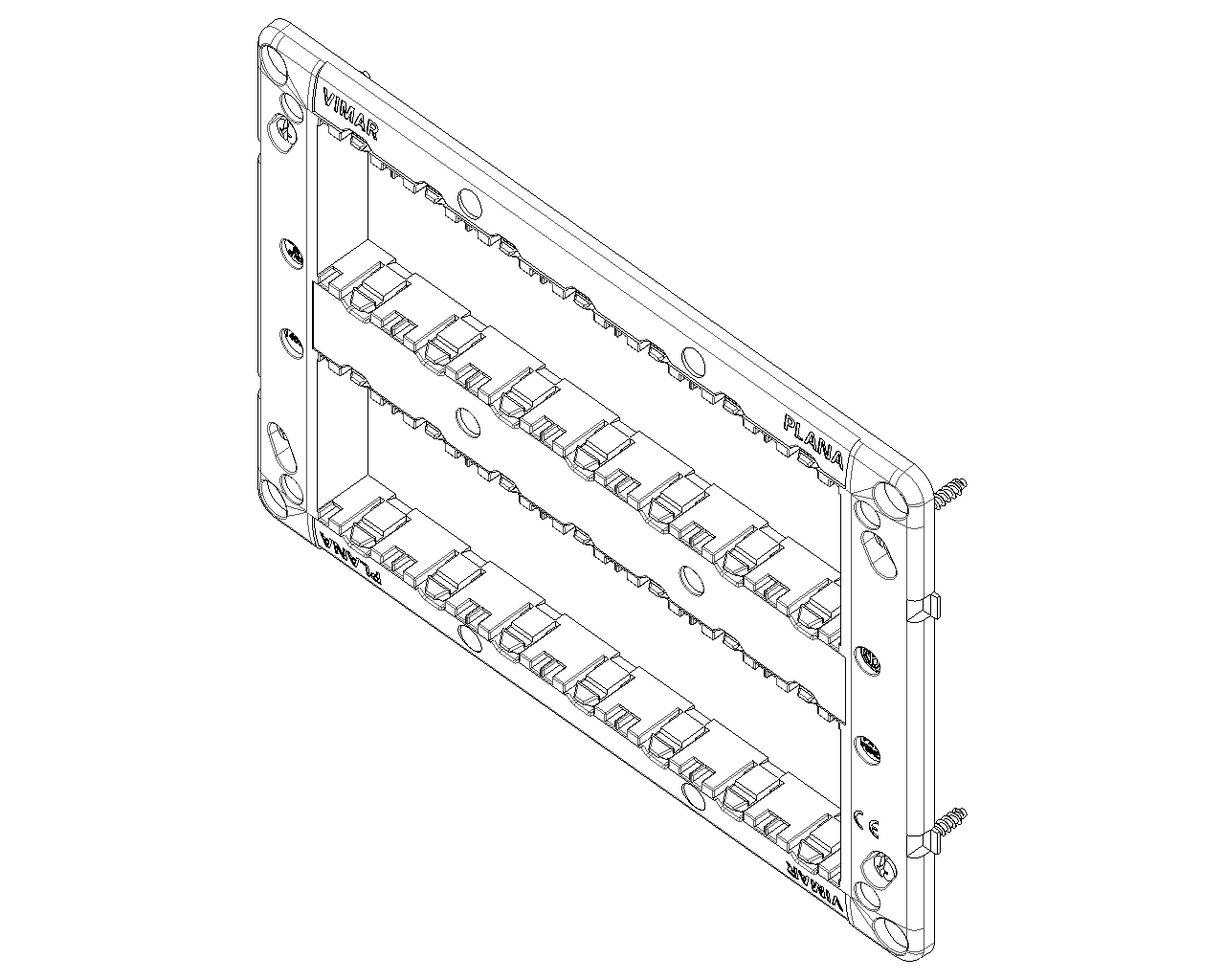

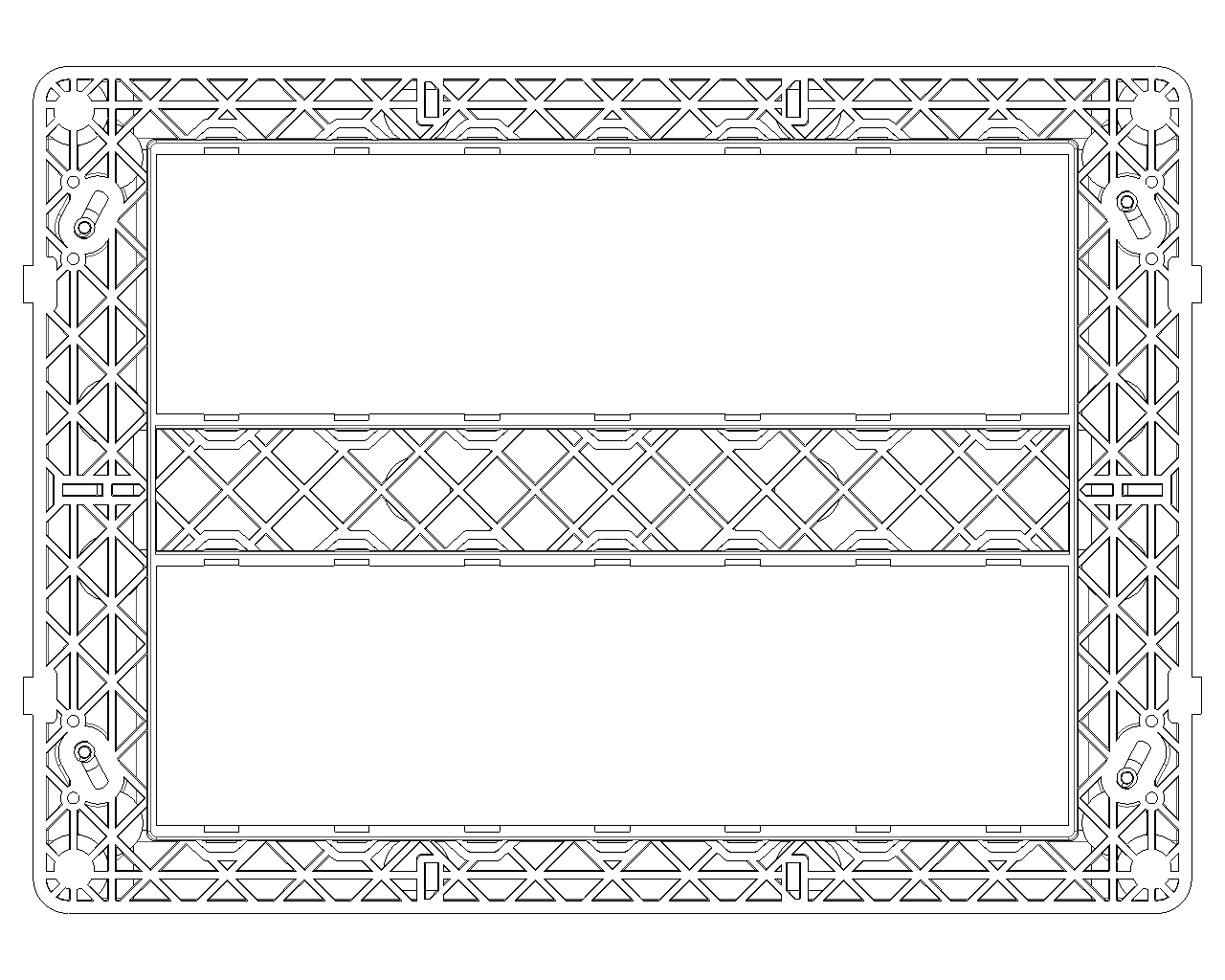

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
7

Number of modules vertical (module system)
2

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352116955

1 NR

20.34x14.6x2.7 [cm]

91.21 [g]

8007352116962

10 NR

28.4x24.4x13.4 [cm]

1,081.73 [g]
