Frame 4M +screws - 14614

14614
Wiring devices / Traditional wiring devices / PLANA / Mounting frames

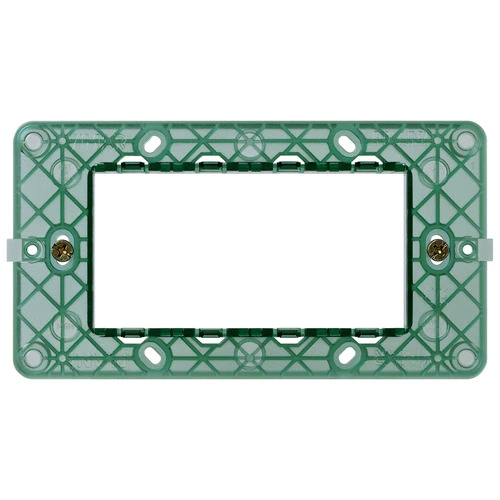

Frame 4M +screws
4-module mounting frame, with screws, for 4-module mounting boxes

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
4

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 40 NR

---

Barcode

8007352108240

1 NR

14.05x7.43x2.17 [cm]

26.93 [g]

8007352108257

40 NR

28.4x24.4x16.4 [cm]

1,268.27 [g]

8007352361430

160 NR

59.5x38.5x26.5 [cm]

5,873.08 [g]

8007352482470

1,920 NR

80x120x93.5 [cm]

70,476.96 [g]
