Frame 1M BS white

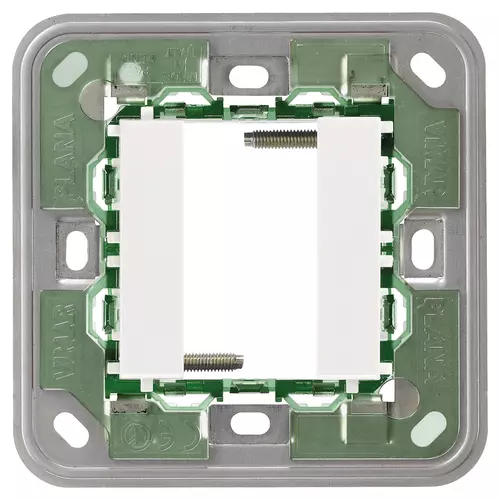

1-module mounting frame, with screws, for British standard mounting boxes, white

  • The transparency helps the installation and the wiring of devices
  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • Thanks to the central slots, the support can be fixed onto the wall level

Product Status
3 - Active

Drawings

view encumbered art. 14606
PNG DXF

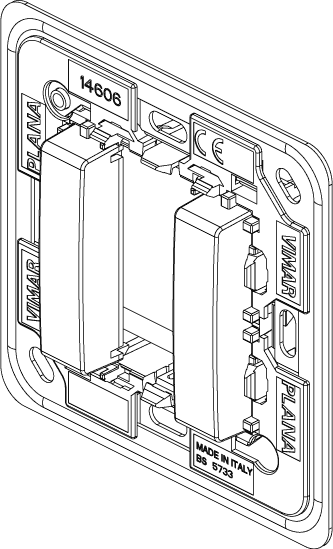

rear view art. 14606
PNG DXF
3D view art. 14606
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

08. ASTA - UK

15. CCC - China

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 40 NR

Barcode

Barcode Qty 1 NR
8007352383432
1 NR
8.25x8.25x2.15 [cm]
44.95 [g]
Barcode Qty 2 NR
8007352472013
2 NR
8.25x8.25x4.5 [cm]
89.9 [g]
Barcode Qty 40 NR
8007352383449
40 NR
29.5x24.8x8.7 [cm]
1,950 [g]
