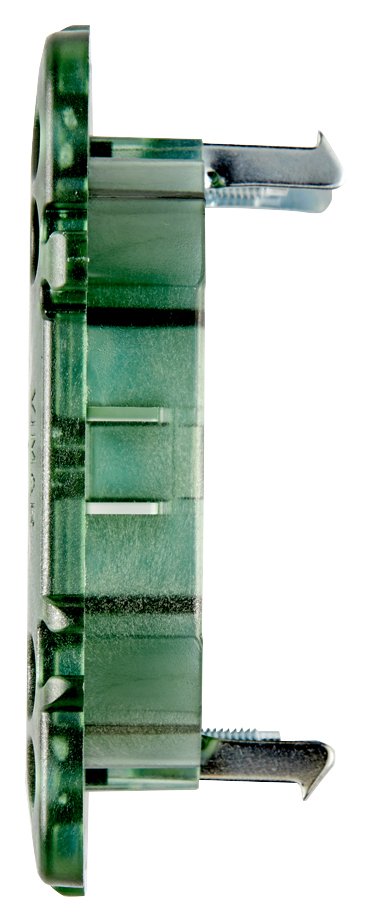

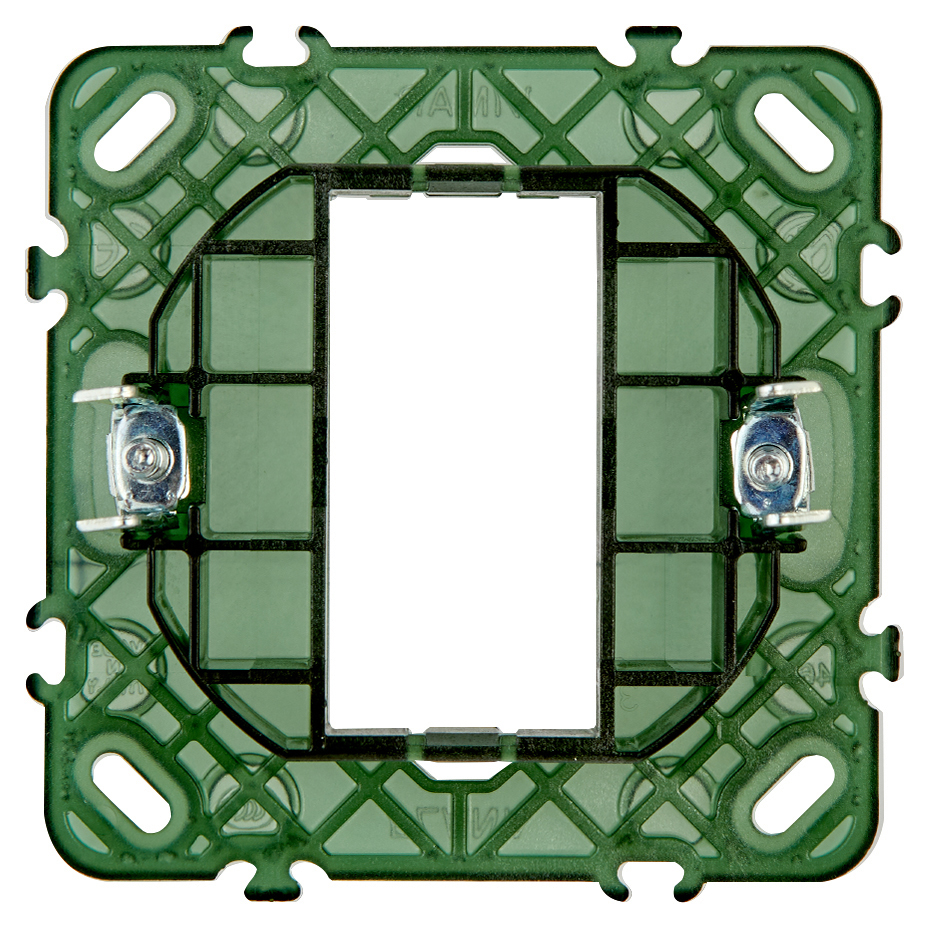

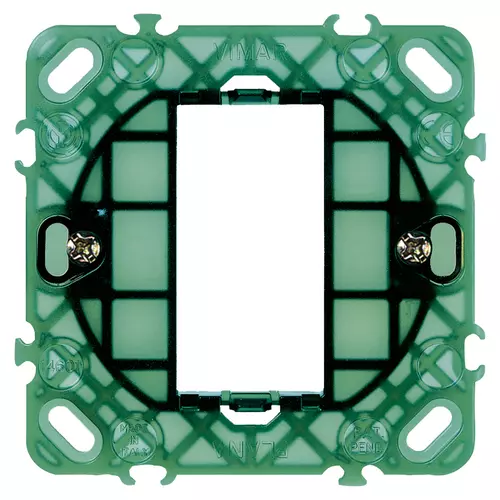

Frame 1M +claws
1-module mounting frame, with claws, for ø 60 mm mounting boxes

• The transparency helps the installation and the wiring of devices
• The honeycomb structure gives structural strength
• The slots in the corners enable fixing to the panel
• The hooking teeth encourage fixing in series for the installation of multiple modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

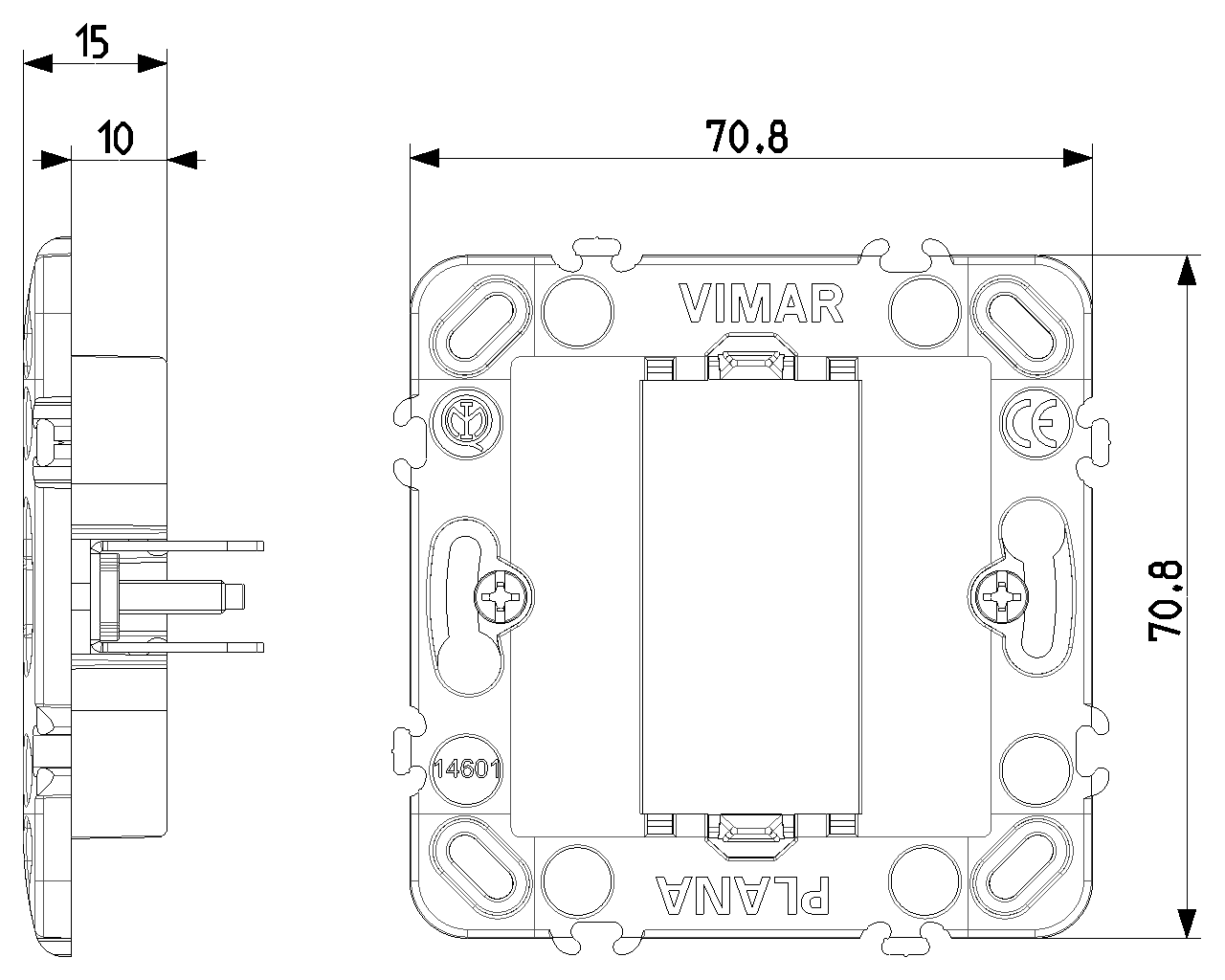

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with claw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
1

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
Yes

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 20 NR

---

Barcode

8007352123045

1 NR

7.4x7.4x1.5 [cm]

26.87 [g]

8007352123052

20 NR

24.4x13.9x10.1 [cm]

630.31 [g]

8007352368873

260 NR

59.5x38.5x26.5 [cm]

8,940.6 [g]
