Frame 1M without screws

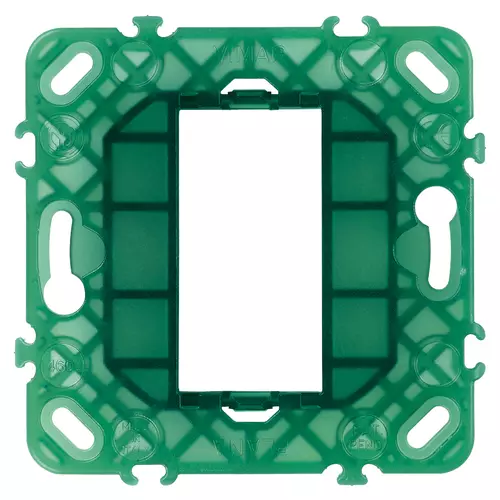

1-module mounting frame, without screws, for 60 mm fixing centres or 56x56 mm flush mounting boxes

  • The transparency helps the installation and the wiring of devices
  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • The hooking teeth encourage fixing in series for the installation of multiple modules
  • Thanks to the central slots, the support can be fixed onto the wall level

Product Status
3 - Active

Drawings

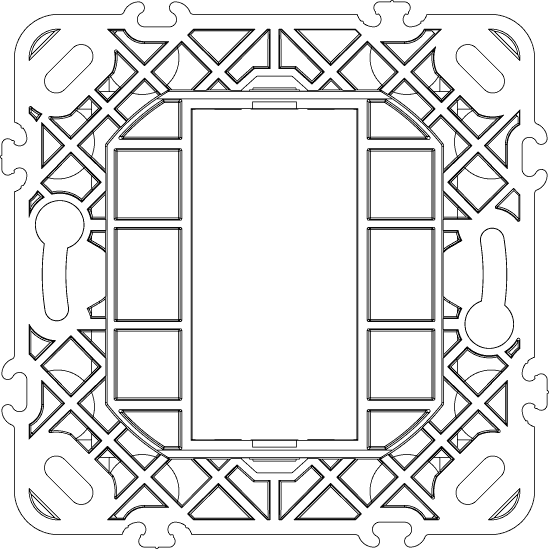

view encumbered art. 14600
PNG DXF

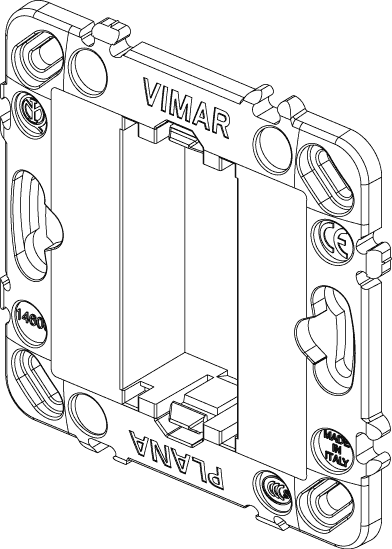

rear view art. 14600
PNG DXF
3D view art. 14600
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352132290
1 NR
7.4x7.4x1.5 [cm]
19.2 [g]
Barcode Qty 20 NR
8007352132306
20 NR
24.4x13.9x8.4 [cm]
444.6 [g]
Barcode Qty 200 NR
8007352642201
200 NR
47.5x27x29 [cm]
4,883 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
