Logo Vimar payoff positivoLogo Vimar positivo

BUS EnOcean interface white - 14508

Pdf
Vimar - 14508 - BUS EnOcean interface white
Vimar - 14508 - BUS EnOcean interface white

14508
Smart systems&products / By-me Plus / PLANA / Devices

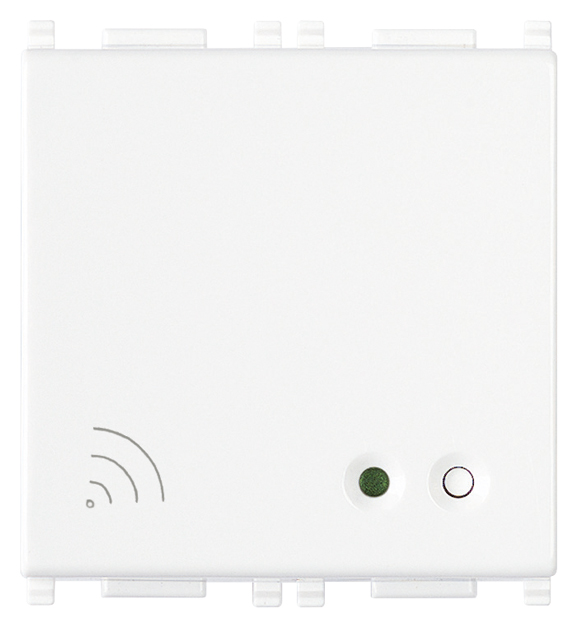

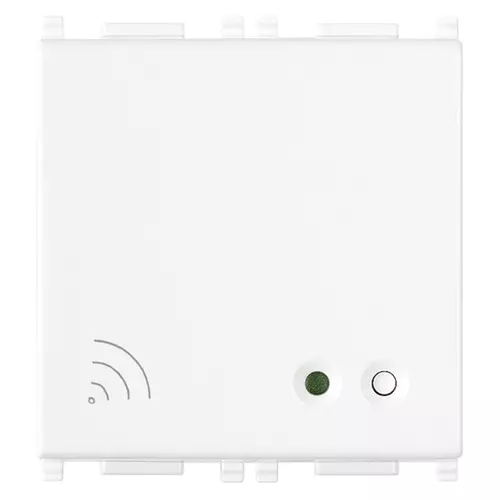

BUS EnOcean interface white
EnOcean Bus interface, white - 2 modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Interface for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Model
Other
Mounting method
Flush-mounted
Width in number of modular spacings
2
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
With bus connection
Yes
With LED indication
Yes
Degree of protection (IP)
IP40

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352362642
1 NR

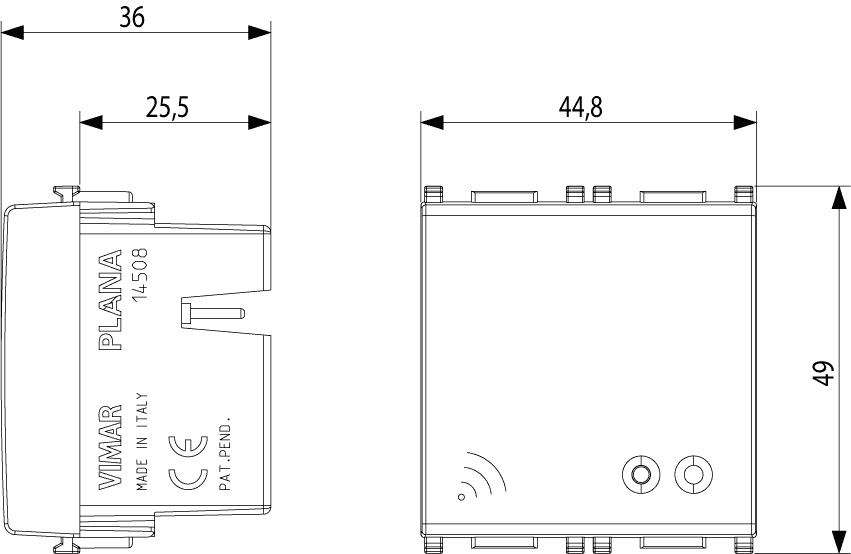

11.2x9.6x9.8 [cm]
123.2 [g]
