Pocket switch NFC/RFID AGB white - 14468

Pdf
Vimar - 14468 - Pocket switch NFC/RFID AGB white
Vimar - 14468 - Pocket switch NFC/RFID AGB white

14468
Wiring devices / Traditional wiring devices / PLANA / Devices

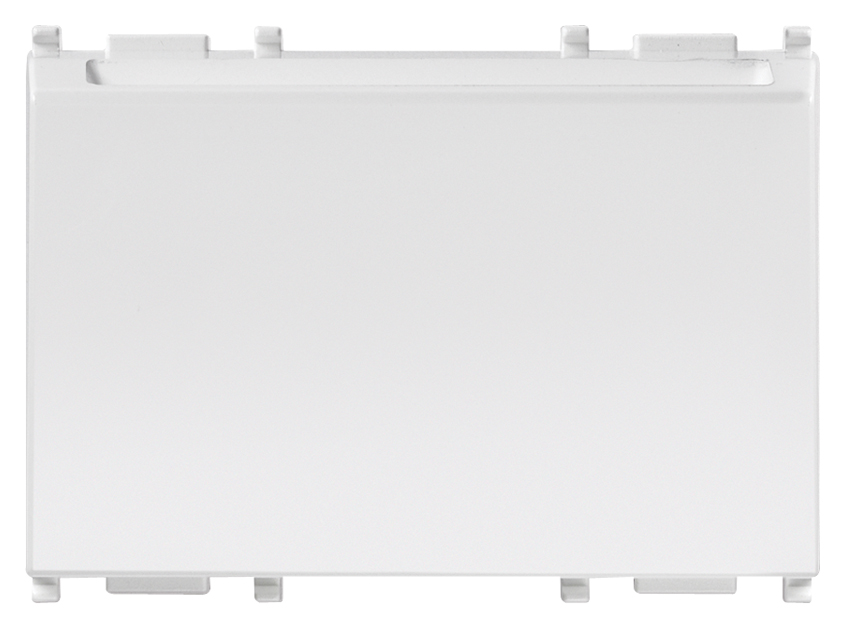

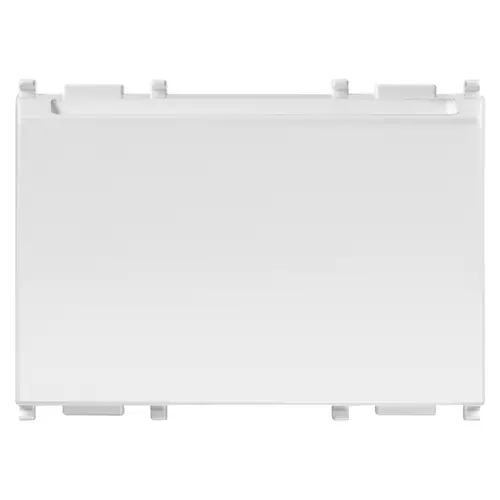

Pocket switch NFC/RFID AGB white
NFC/RFID electronic transponder card reader for installation inside the room, compatible with AGB Electronic Solutions for Hotels, vertical pocket, 1 (one) 10 A 230 V~ NO (NON SELV) relay output, 1 (one) 4 A 230 V~ NO (NON SELV) relay output, 120-230 V~ 50/60 Hz power supply, pocket lighting to be visible in darkness, white - 3 modules. Supplied without Mifare card (badge)

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 14468
PNG DXF
rear view art. 14468
PNG DXF
3D view art. 14468
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
Buzzer
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
120,00 - 230,00 V
Operating voltage AC 60 Hz
120,00 - 230,00 V
Operating temperature
0 - 40 °C
Degree of protection (IP)
IP20
Colour
White
Material
Plastic
Width
67,30 mm
Height
49,00 mm
Depth
50,00 mm

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352573338
1 NR
5.2x5.7x7.6 [cm]
98.2 [g]
Barcode Qty 5 NR
8007352573345
5 NR
21.4x11.6x6 [cm]
551.1 [g]
