Badge switch 230V white - 14466

Pdf
Vimar - 14466 - Badge switch 230V white
Vimar - 14466 - Badge switch 230V white

14466
Wiring devices / Traditional wiring devices / PLANA / Devices

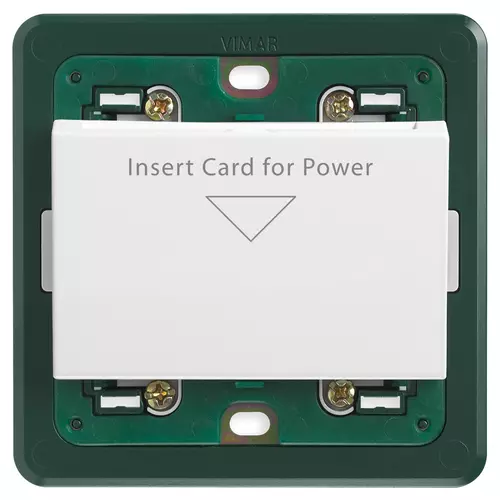

Badge switch 230V white
Electronic badge switch with vertical pocket, 16 A 230 V~ change-over relay output, supply voltage 230 V~ 50-60 Hz, with built-in mounting frame for British standard square mounting boxes, to complete with 3-module British standard cover plate, white. Provided without ISO card (badge)

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

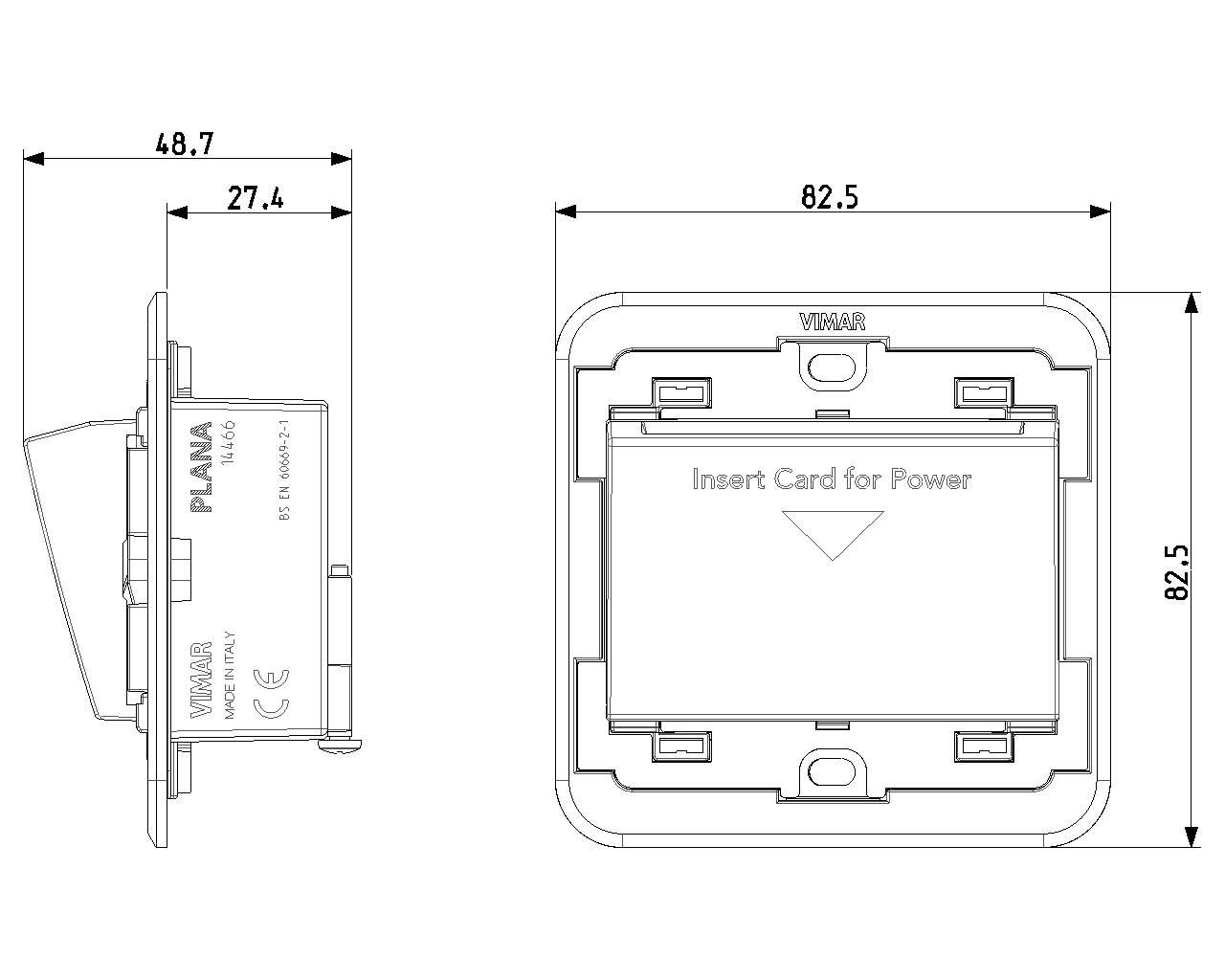

view encumbered art. 14466
PNG DXF

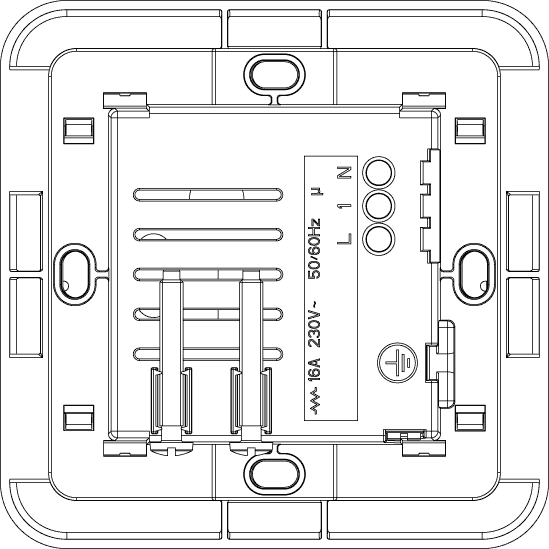

rear view art. 14466
PNG DXF

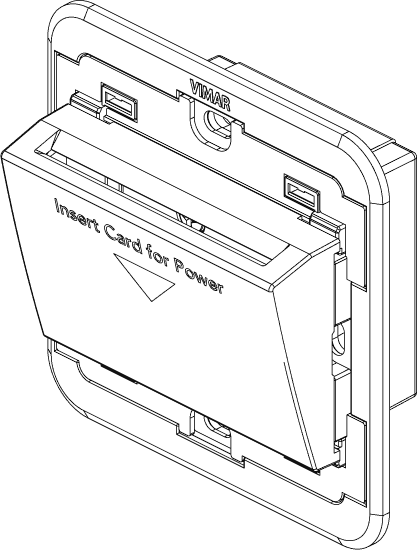

3D view art. 14466
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
None
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
230,00 - 230,01 V
Operating voltage AC 60 Hz
230,00 - 230,01 V
Operating temperature
5 - 45 °C
Degree of protection (IP)
IP20
Colour
White
Material
Plastic
Width
82,50 mm
Height
82,50 mm
Depth
48,70 mm

00. CE Marking - EU

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352403291
1 NR
11.7x10.8x7.1 [cm]
155.8 [g]
