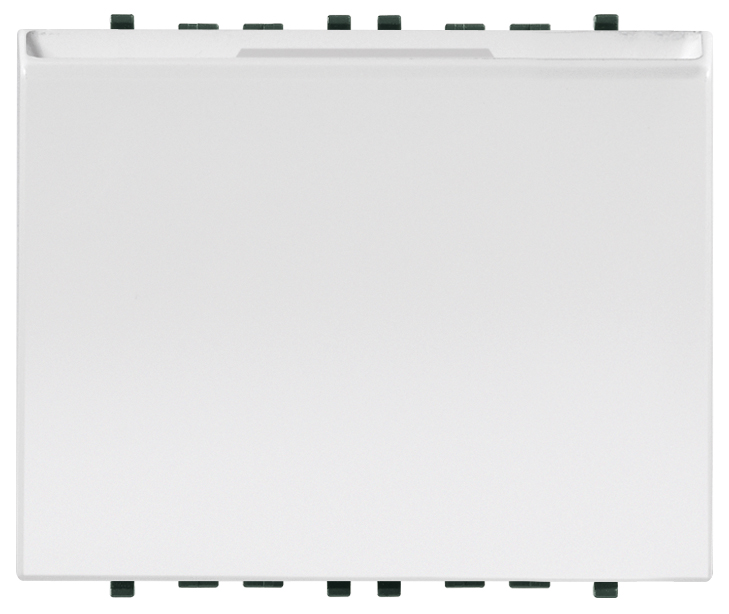

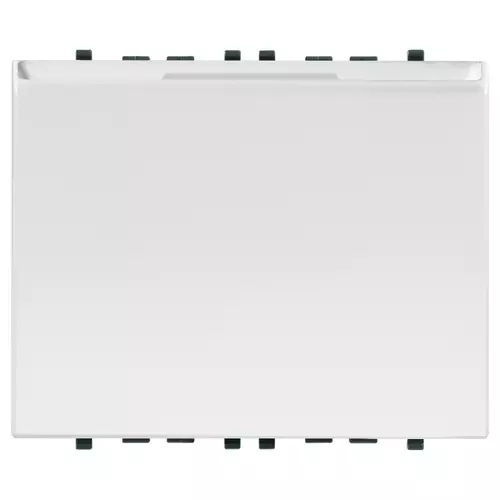

Vertical badge switch 2M white

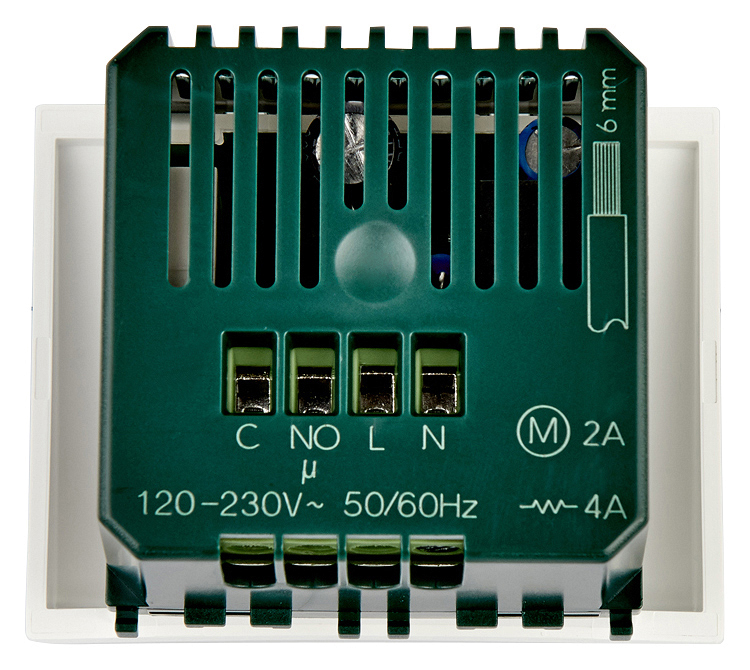

Upright electronic badge switch, 4 A 250 V~ NO (NON SELV) change-over relay output, power supply 120-230 V~ 50-60 Hz, slot lighting for location in the dark, trimmer for regulating switch-off time after removing the card, white - 2 modules. Supplied without ISO card (badge)

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (1182 kb)

---

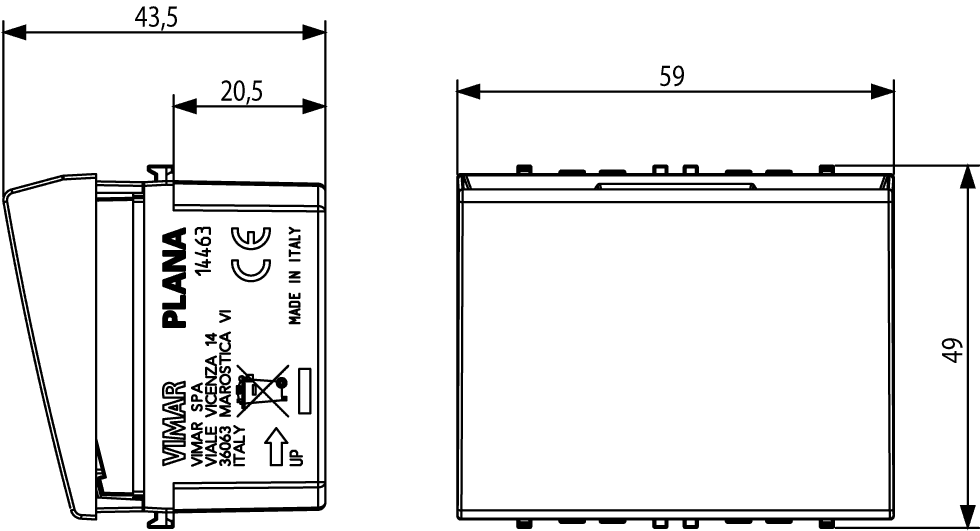

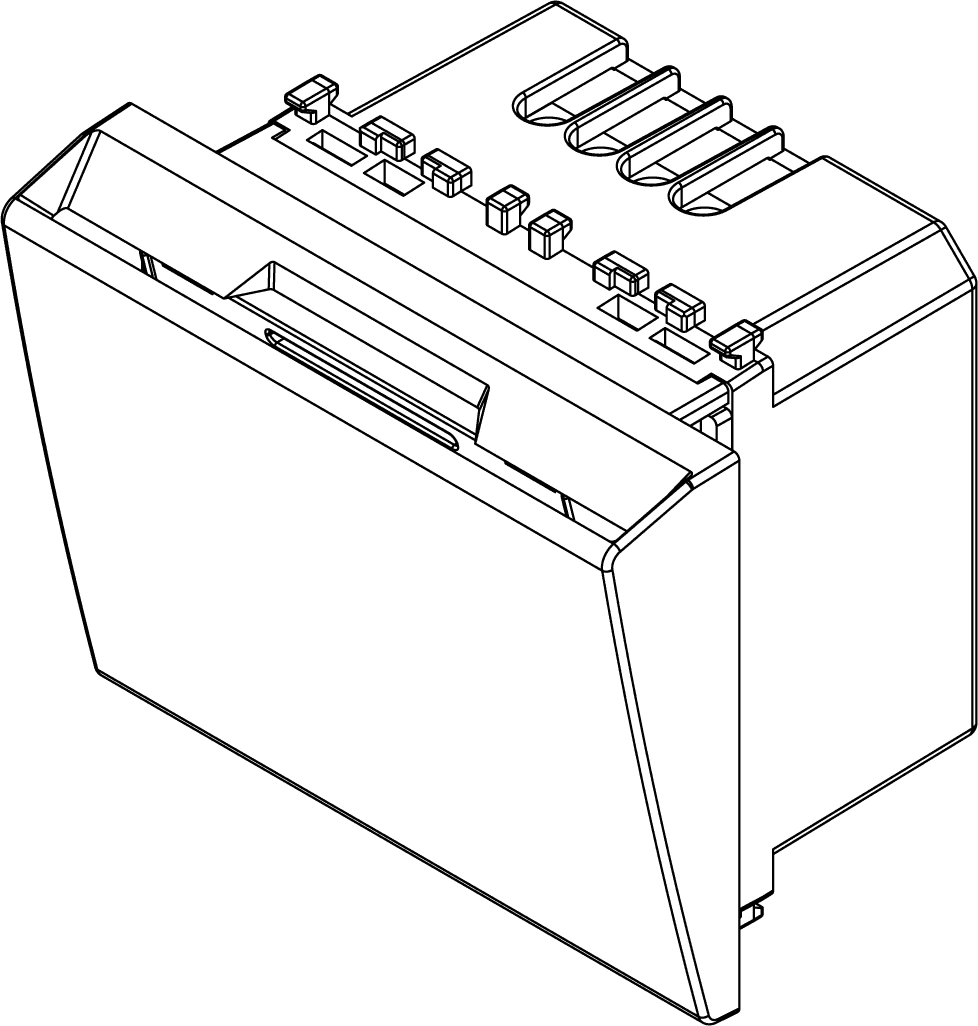

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Access control system

Standalone
Yes

Networkable
No

PC-binding
No

Type of interface
None

Reading strategy
Data medium

Signalling
None

Mounting method
Flush-mounted

Operating voltage AC 50 Hz
250,00 - 250,01 V

Operating voltage AC 60 Hz
250,00 - 250,01 V

Operating temperature
5 - 35 °C

Degree of protection (IP)
IP20

Colour
White

Material
Plastic

Width
44,80 mm

Height
49,00 mm

Depth
43,50 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352561373

1 NR

5.2x5.7x7.6 [cm]

70.1 [g]

8007352563759

5 NR

21.4x11.6x6 [cm]

407.1 [g]

8007352726079

50 NR

30.5x25.5x22.5 [cm]

4,071 [g]
