Connected RFID outer switch white - 14462

14462
Wiring devices / View Wireless wiring devices / PLANA / Devices

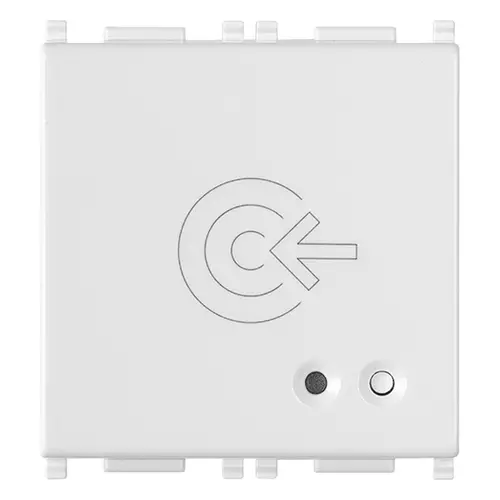

Connected RFID outer switch white
RFID smart card landing reader, card configuration using View Wireless App, Bluetooth technology standard, IoT technology on Bluetooth technology 5.0 standard for the creation of View Wireless mesh system, 1 relay output NO 16 A 100-240 V~ 50/60 Hz, 1 DND input, LED with brightness control, 100-240 V~ 50/60 Hz power supply, white - 2 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (780 kb)
• Full Multilanguage instructions sheet (1333 kb)
• Manuale app View Wireless (16695 kb)
• Manuel appli View Wireless (36896 kb)
• Manual app View Wireless (36835 kb)
• Manual View Wireless app (36774 kb)
• Εγχειρίδιο τεχνικού εγκατάστασης (37151 kb)
• Installationsanleitung View Wireless (36685 kb)
• Manuale Portale View Vimar (3241 kb)
• Manuel Portail View Vimar (1975 kb)
• Manual Portal Vimar View (1943 kb)
• Vimar View Portal manual (2047 kb)
• Εγχειρίδιο χρήσης Πύλη View Vimar (2085 kb)
• Bedienungsanleitung Portal View Vimar (2057 kb)

---

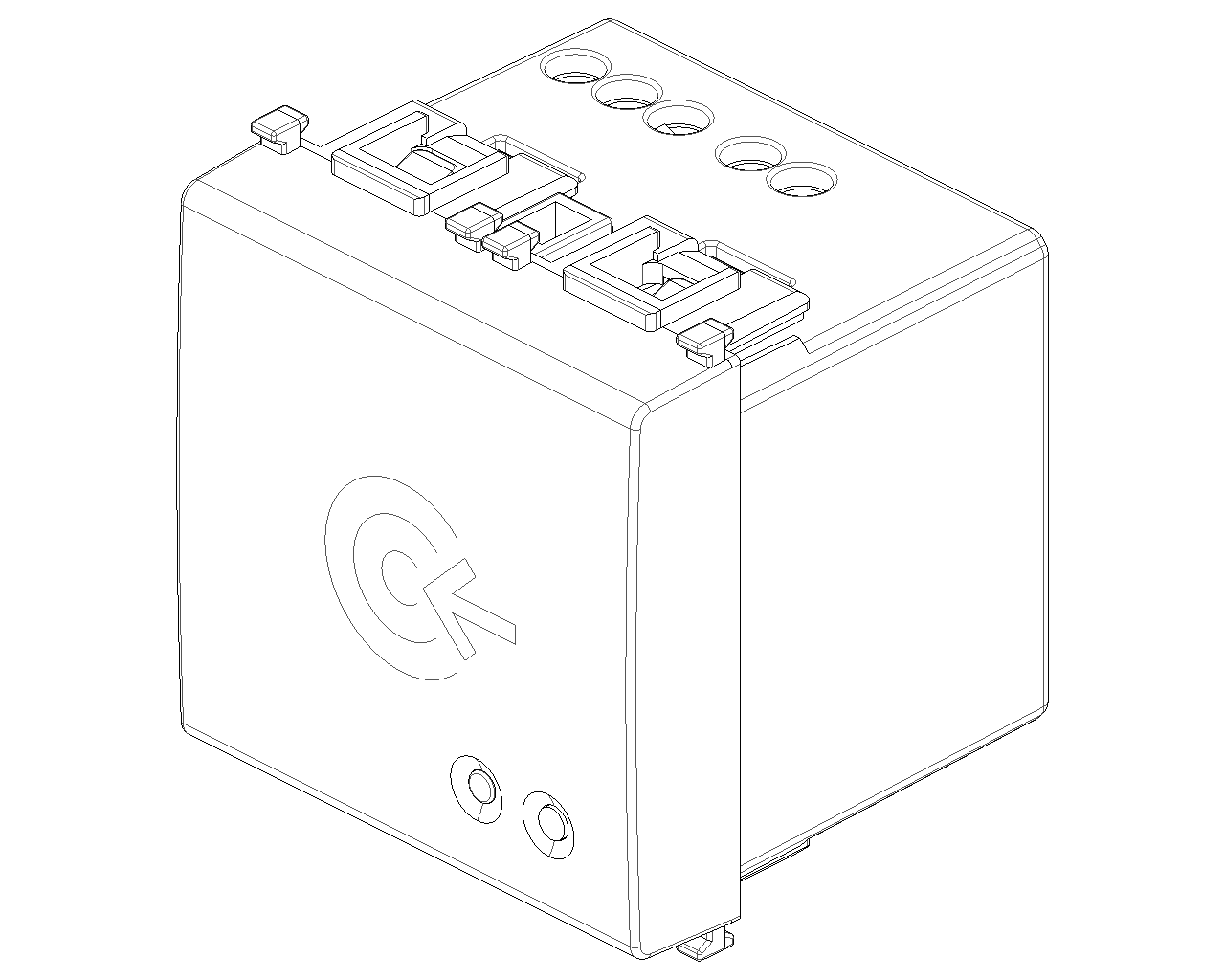

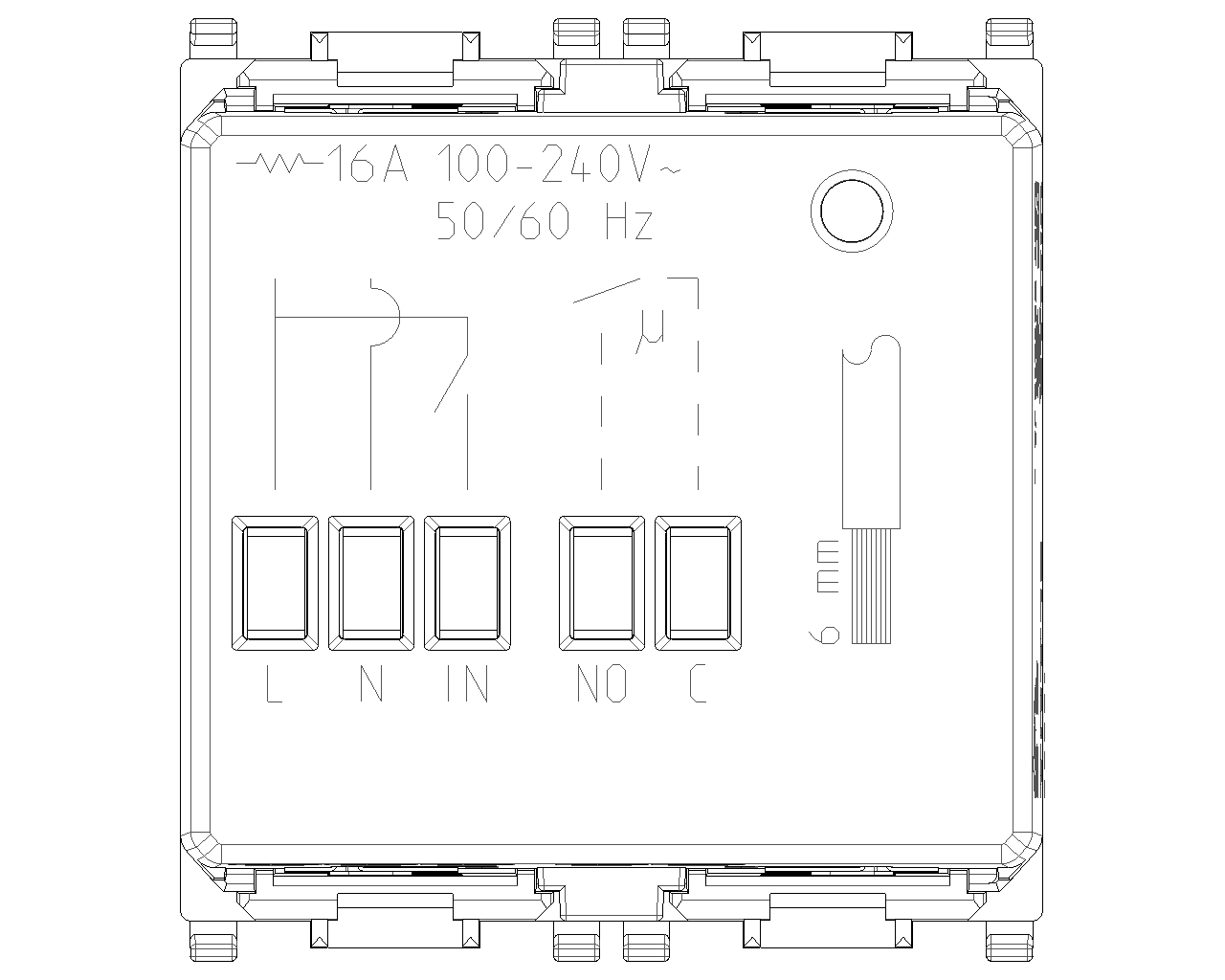

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Access control system

Standalone
Yes

Networkable
No

PC-binding
No

Type of interface
Other

Max. number of persons
200

Reading strategy
Code

Signalling
Light signal

Mounting method
Flush-mounted

Operating voltage AC 50 Hz
230,00 - 230,01 V

Operating voltage AC 60 Hz
230,00 - 230,01 V

Degree of protection (IP)
IP20

Colour
White

Model
Reader

Material
Plastic

Power over Ethernet (PoE)
Other

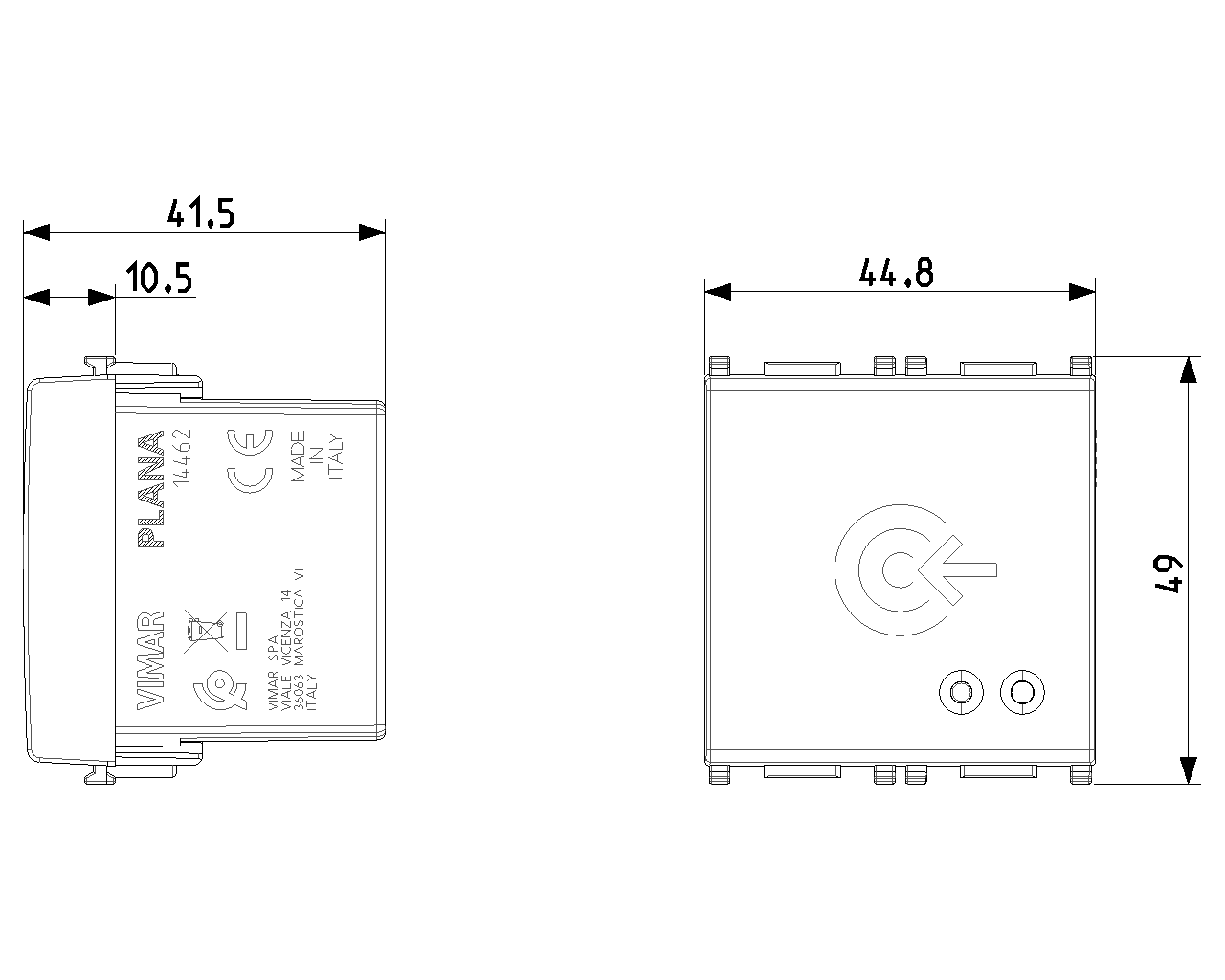

Width
44,80 mm

Height
49,00 mm

Depth
41,50 mm

00. CE Marking - EU

37. Marking - Morocco

40. Bluetooth technology

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352659711

1 NR

6x5.4x5.2 [cm]

74.6 [g]

8007352663077

10 NR

28.1x13.1x6 [cm]

822.6 [g]
