KNX outdoor transponder reader white - 14457

14457
Smart systems&products / KNX / PLANA / Devices

KNX outdoor transponder reader white

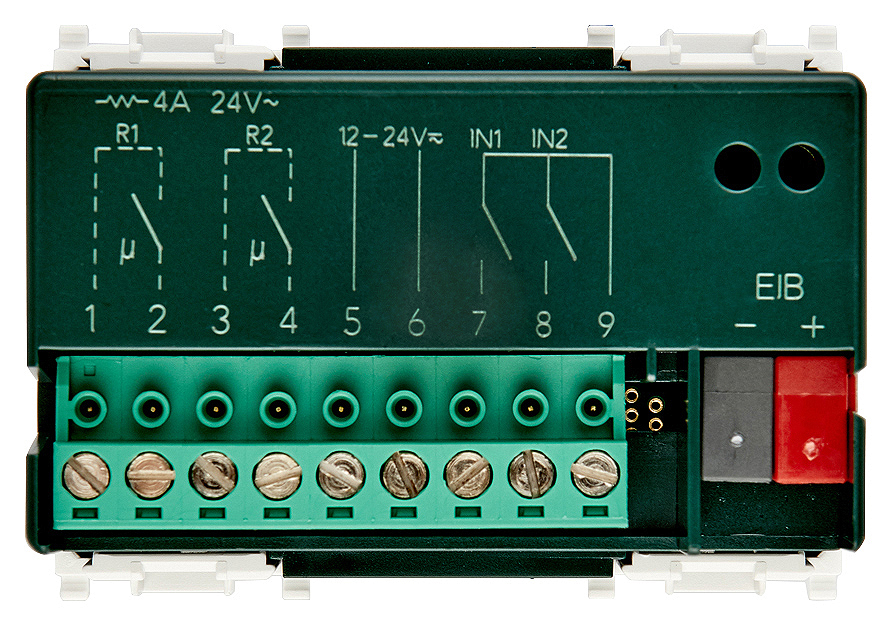

Transponder card reader for installation outside rooms, KNX standard, 2 NO 4 A 24 V~ relay outputs, 2 inputs, power supply 12-24 V~ 50-60 Hz and 12-24 Vdc (SELV), white - 3 modules.Supplied without transponder card

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Full Multilanguage instructions sheet (1432 kb)
• Light multilanguage instructions sheet (713 kb)
• Manuale installatore (1126 kb)
• Installer manual (961 kb)

Product Software

• DB_ControlloAccessi _KNX_REL-01.08_20181217.zip
• DB_ControlloAccessi _KNX_REL-01.09_20221025.zip

---

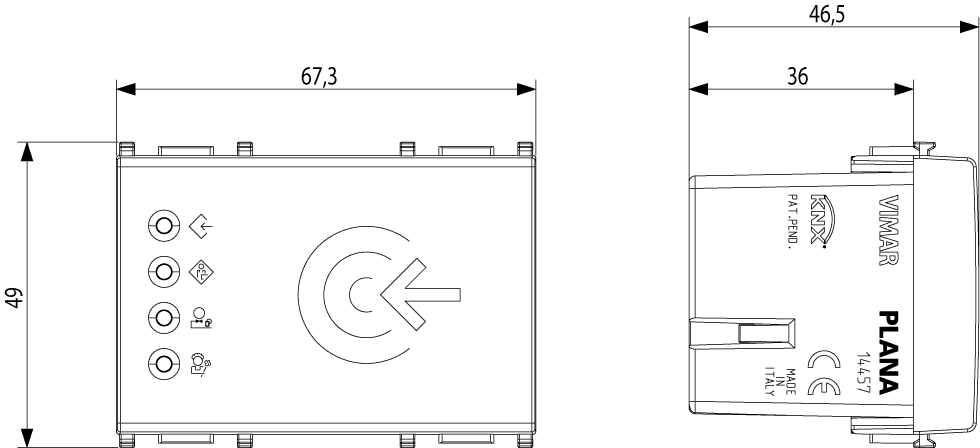

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Access control unit for bus system

Bus system KNX
Yes

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Transparent
No

With bus connection
Yes

00. CE Marking - EU

27. KNX

37. Marking - Morocco

46. UK PSTI compliance

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352373495

1 NR

11.2x9.6x9.8 [cm]

155 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
