KNX vertical transponder reader white - 14453

14453
Smart systems&products / KNX / PLANA / Devices

KNX vertical transponder reader white
Transponder card reader with vertical pocket for installation inside rooms, KNX standard, 2 NO 4 A 24 V~ relay outputs, 2 inputs, supplementary power supply 12-24 V~ 50-60 Hz and 12-24 V d.c. (SELV), white - 3 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (608 kb)
• Full Multilanguage instructions sheet (678 kb)
• Manuale installatore (1081 kb)
• Installer manual (961 kb)

Product Software

• DB_ControlloAccessi _KNX_REL-01.08_20181217.zip
• DB_ControlloAccessi _KNX_REL-01.09_20221025.zip

---

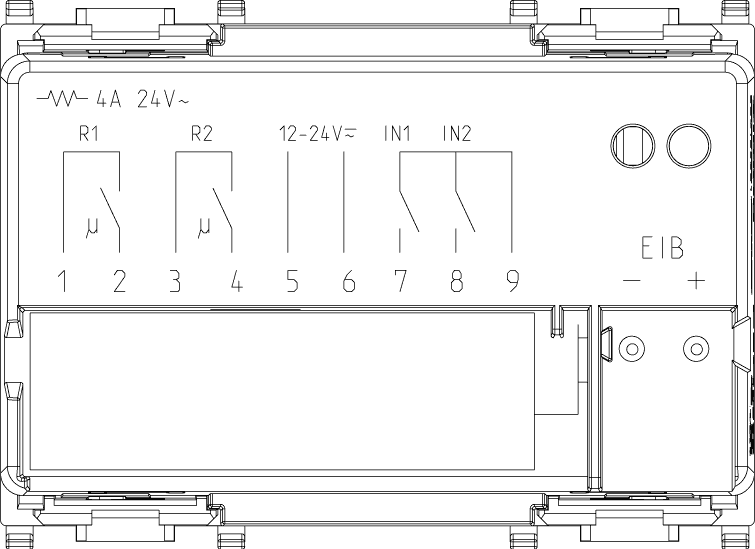

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Access control unit for bus system

Bus system KNX
Yes

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Transparent
No

With bus connection
Yes

00. CE Marking - EU

27. KNX

37. Marking - Morocco

46. UK PSTI compliance

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352373471

1 NR

11.2x9.6x9.8 [cm]

164.6 [g]
