Thermostat 230V white - 14440

Pdf

14440
Wiring devices / Traditional wiring devices / PLANA / Devices

Thermostat 230V white
Electronic thermostat for ON/OFF ambient temperature control (heating and air-conditioning), summer/off/winter switch, class I temperature control device (contribution 1%), input for remote activation of energy-saving function, change-over relay output 6(2) A 230 V~, power supply 230 V~ 50/60 Hz, white - 2 modules

Product Status
3 - Active

Sheets, Manuals, Documentation


Drawings

Class group
Stats, switches and controllers
Class
Room thermostat
Temperature readable
No
Mounting method
Flush-mounted
Max. contact voltage
230 V
Degree of protection (IP)
IP40
Colour
White

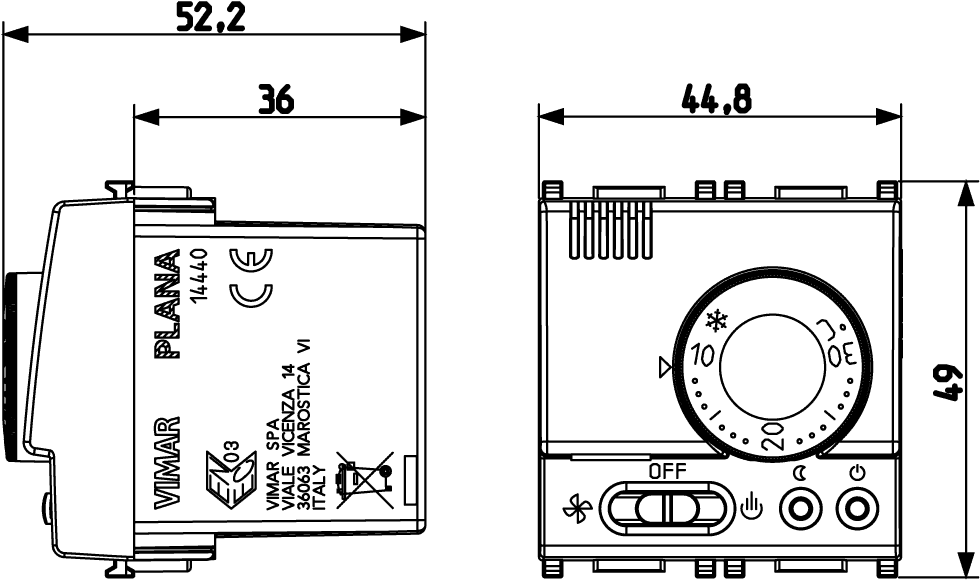

Height
49,00 mm
Width
44,80 mm
Depth
52,20 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352117761
1 NR
11.2x9.6x9.8 [cm]
144.6 [g]
Barcode Qty 5 NR
8007352263956
5 NR
30.5x21.2x11.4 [cm]
899.33 [g]
Barcode Qty 15 NR
8007352368859
15 NR
38x34x24 [cm]
2,960 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
