LPG detector 230V white - 14421

Pdf

14421
Wiring devices / Traditional wiring devices / PLANA / Devices

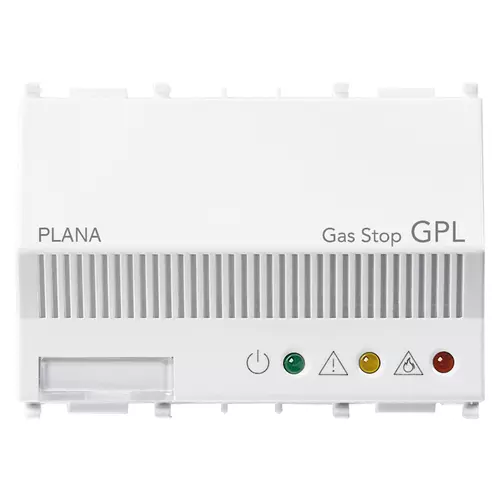

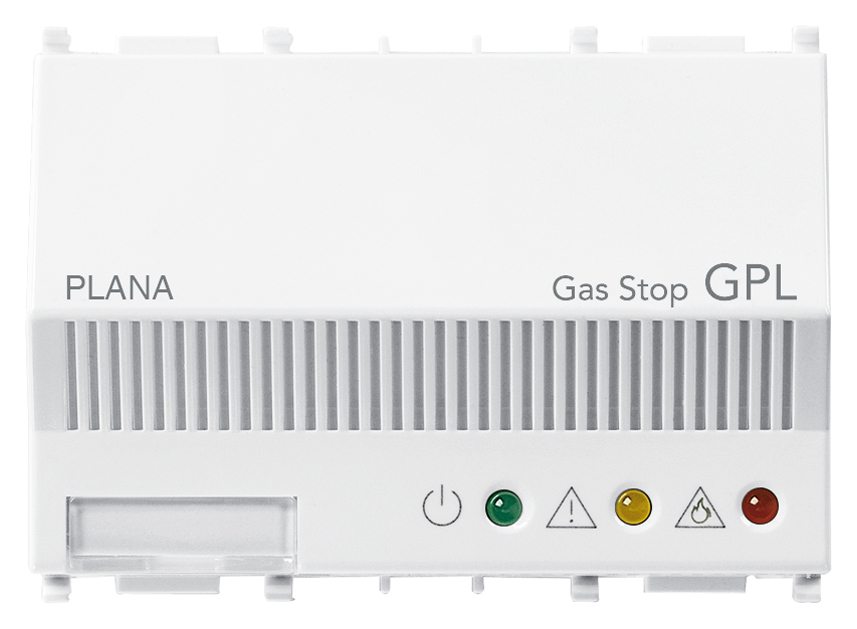

LPG detector 230V white

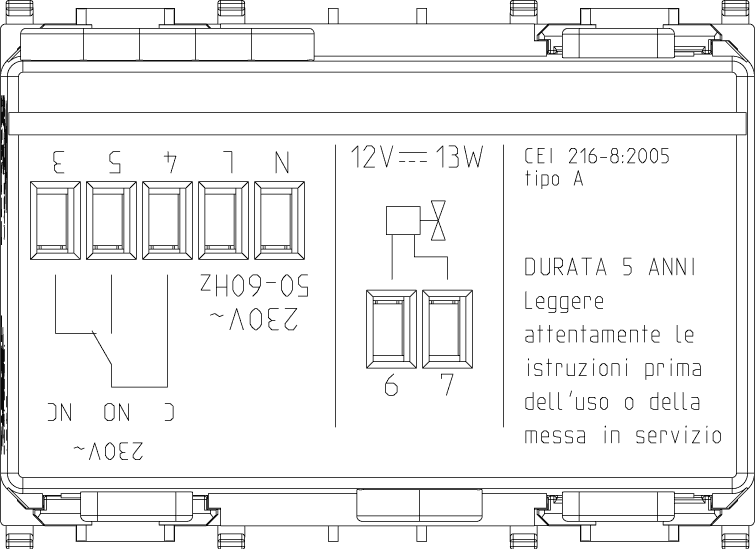

Gas Stop GPL, electronic LPG gas detector with acoustic and optical signalling and control on a solenoid valve, supply voltage 230 V~ 50-60 Hz, white - 3 modules. Provided with cylinder 01899 for testing the installation

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

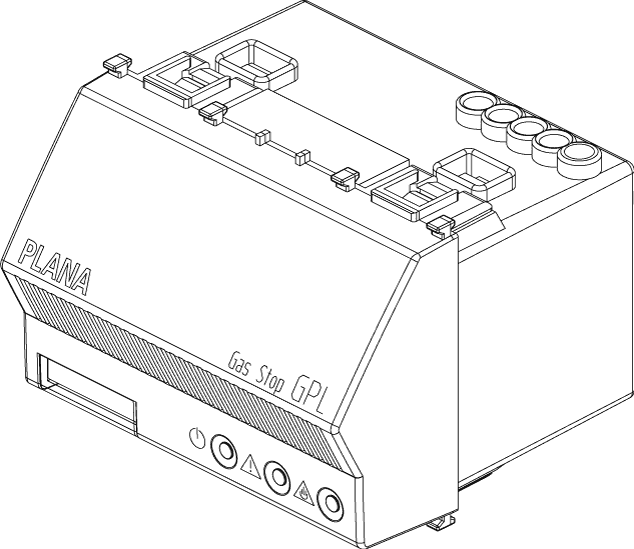

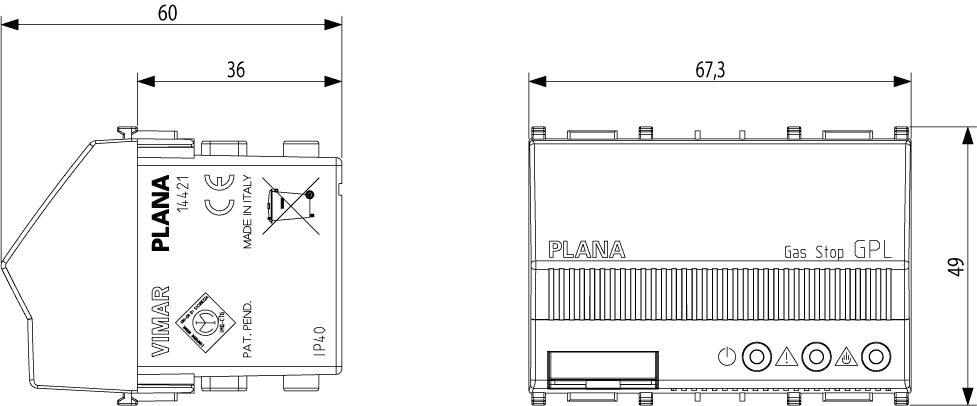

Drawings

Class group
Alarm installations, emergency call and signalling
Class
Gas detector
Detect butane (C4H10)
Yes
Detect methane (CH4)
No
Detect other gas species
Yes
Detect embroidering gas
Yes
Detect explosive gas
Yes
Detect flammable gas
Yes
Detect toxic gas
No
Mounting method
Built-in
Type of messaging
Optical/acoustic
Colour
White
Width
67,50 mm
Height/depth
49 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352117754
1 NR
11.2x9.6x9.8 [cm]
329 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
