14397
Wiring devices / Traditional wiring devices / PLANA / Devices

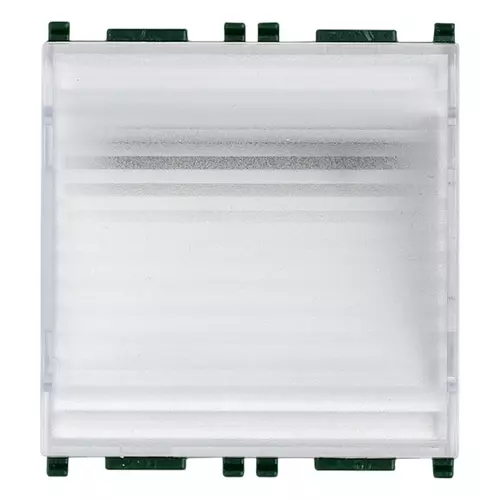

TORCIA LED emergency lamp 2M
Product Status
3 - Active
Sheets, Manuals, Documentation

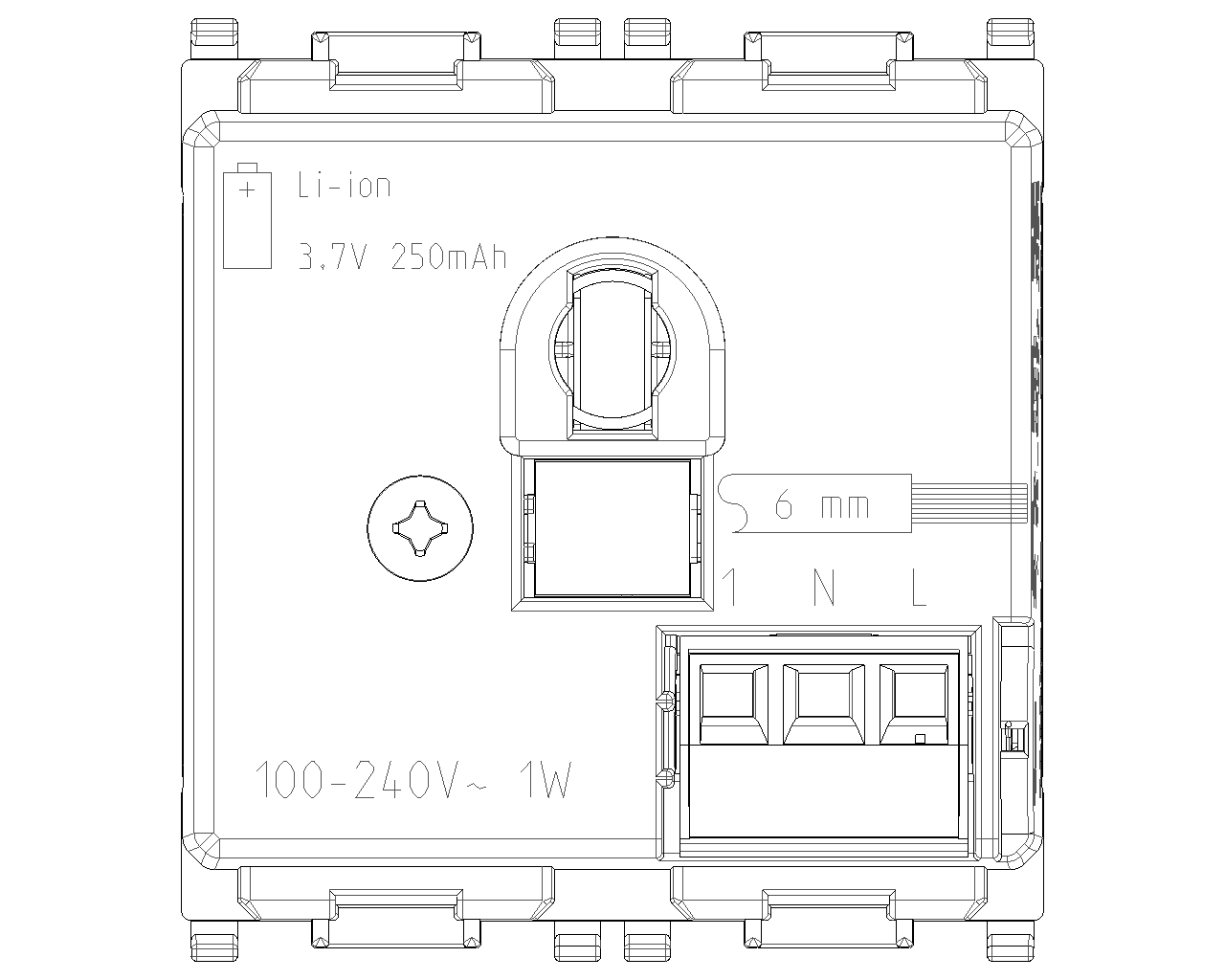

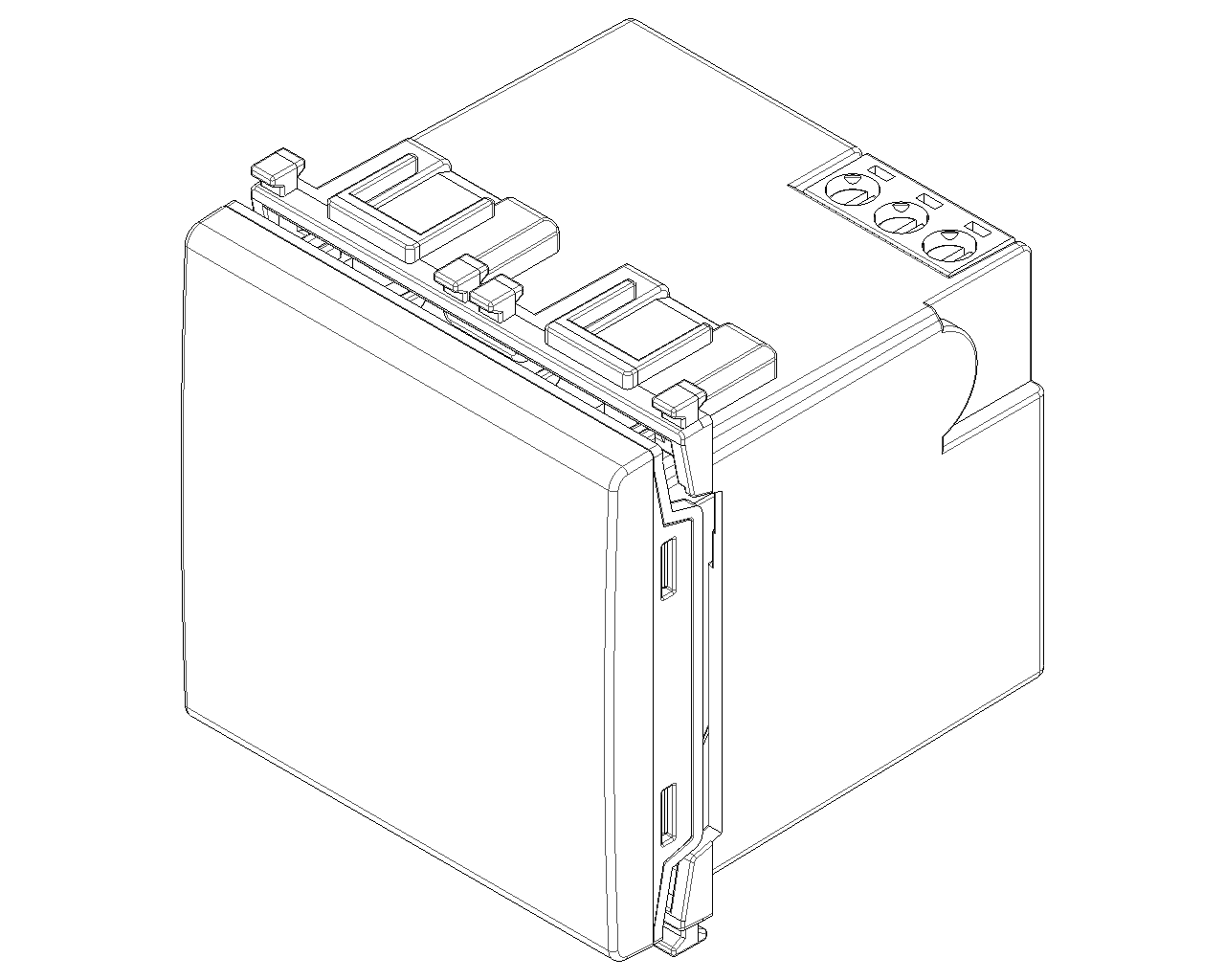

Drawings
Class group
Luminaires
Luminaires
Class
Emergency luminaire
Emergency luminaire
Mounting method
Surface mounting/recessed mounting
Surface mounting/recessed mounting
Function
Escape route lighting
Escape route lighting
Suitable for labelling type
Other
Other
With pictogram
No
No
Monitoring equipment
None
None
With remote switch connection
Yes
Yes
With remote control
No
No
Power supply system
Peripheral (individual battery)
Peripheral (individual battery)
Battery quality
Lithium-ions
Lithium-ions
Lamp type
LED not exchangeable
LED not exchangeable
With light source
Yes
Yes
Suitable for number of light sources
1
1
Lamp holder
Other
Other
Number of lighting heads
2
2
Housing colour
Colourless
Colourless
Material cover
Without cover
Without cover
Voltage type
AC
AC
Nominal voltage
100,00 - 240,00 V
100,00 - 240,00 V
Type of control gear
Not required
Not required
Exchangeable control gear
No
No
Light distributor
Other
Other
Degree of protection (IP)
IP40
IP40
Degree of protection (NEMA)
Other
Other
Protection class
II
II
Max. system power
1,00 W
1,00 W
Nominal operation time
250,00 - 251,00 h
250,00 - 251,00 h
Width
44,80 mm
44,80 mm
Height/depth
46,90 mm
46,90 mm
Length
49,00 mm
49,00 mm
Built-in width
44,80 mm
44,80 mm
Built-in height/depth
36,40 mm
36,40 mm
Built-in length
49,00 mm
49,00 mm
Built-in diameter
0 mm
0 mm
Type of wiring
Ending
Ending
Number of poles
0
0
Conductor cross section
250
250
Connection type
Screw connection
Screw connection
Minimum order quantity: 10 NR
Barcode
8007352721357
1 NR
6x5.4x5.2 [cm]
68 [g]
8007352721364
10 NR
28.1x13.1x6 [cm]
753.8 [g]
8007352721371
120 NR
38.5x29x30 [cm]
9,480 [g]
