TORCIA hand lamp 120V white - 14396

Pdf

14396
Wiring devices / Traditional wiring devices / PLANA / Devices

TORCIA hand lamp 120V white

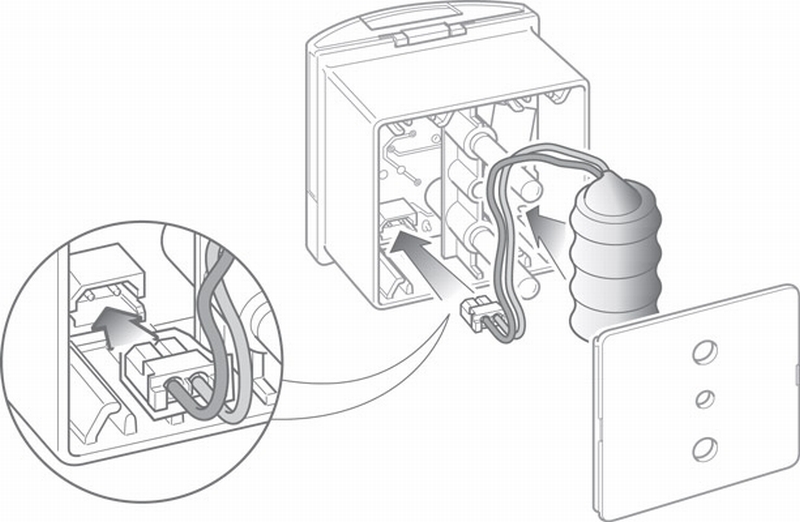

TORCIA, electronic hand lamp with high-efficiency LED, supply voltage 120 V~ 50-60 Hz, automatic emergency device, reaplaceable rechargeable Ni-MH battery, 2 hours of operating, ø 4 mm pins, 19 mm distance between centres + charging socket outlet, white - 2 modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

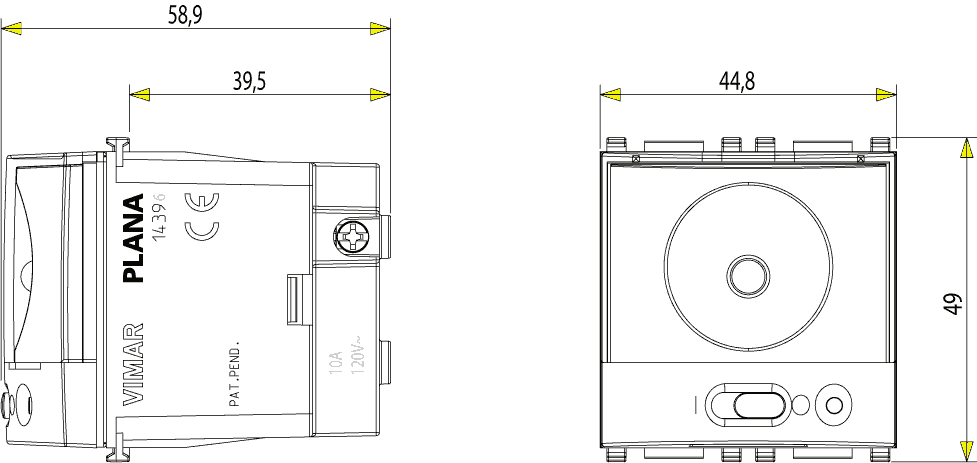

Drawings

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Housing material
Plastic
Housing colour
White
Material cover
Without cover
Voltage type
AC
Nominal voltage
120,00 - 120,01 V
Degree of protection (IP)
IP40
Protection class
II
Max. system power
1,00 W
Width
44,80 mm
Height/depth
49,00 mm
Built-in width
44,80 mm
Built-in height/depth
39,50 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352147539
1 NR
6x5.4x5.3 [cm]
91.8 [g]
Barcode Qty 10 NR
8007352147546
10 NR
28.1x13.1x6 [cm]
993.67 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
