Emergency lighting device 230V - 14394

Pdf

14394
Wiring devices / Traditional wiring devices / PLANA / Devices

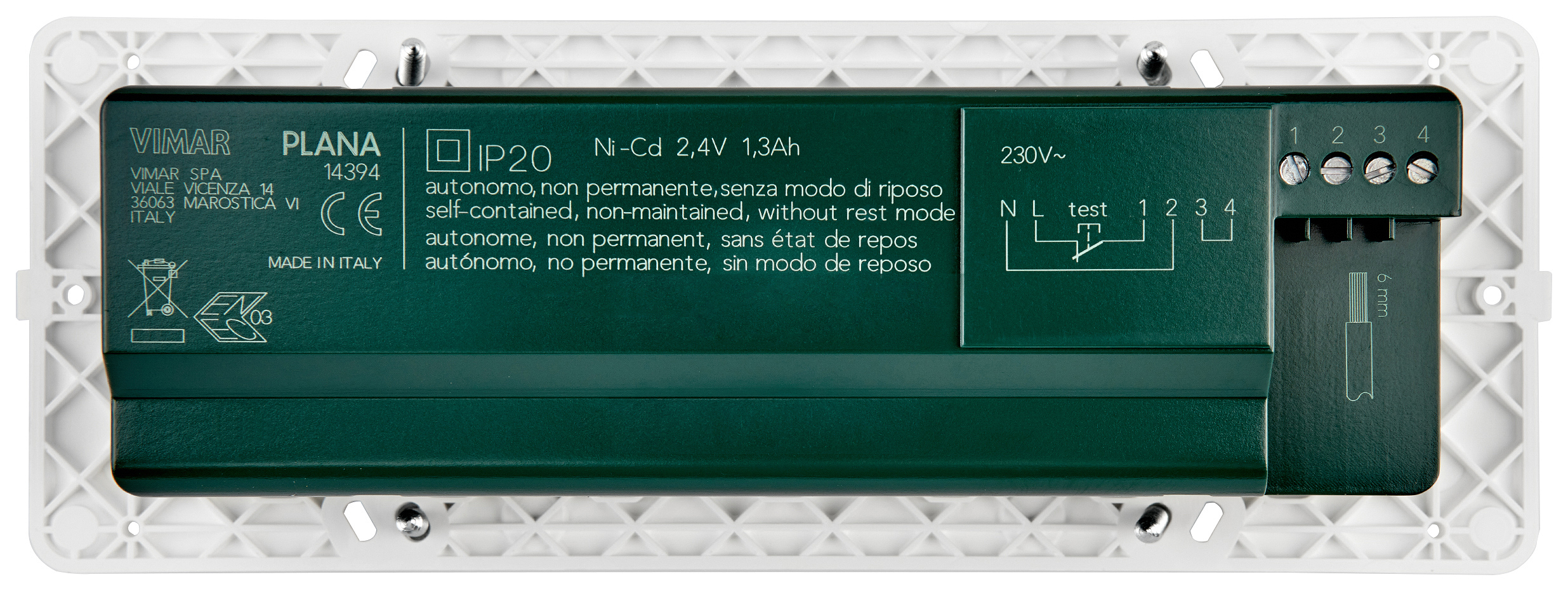

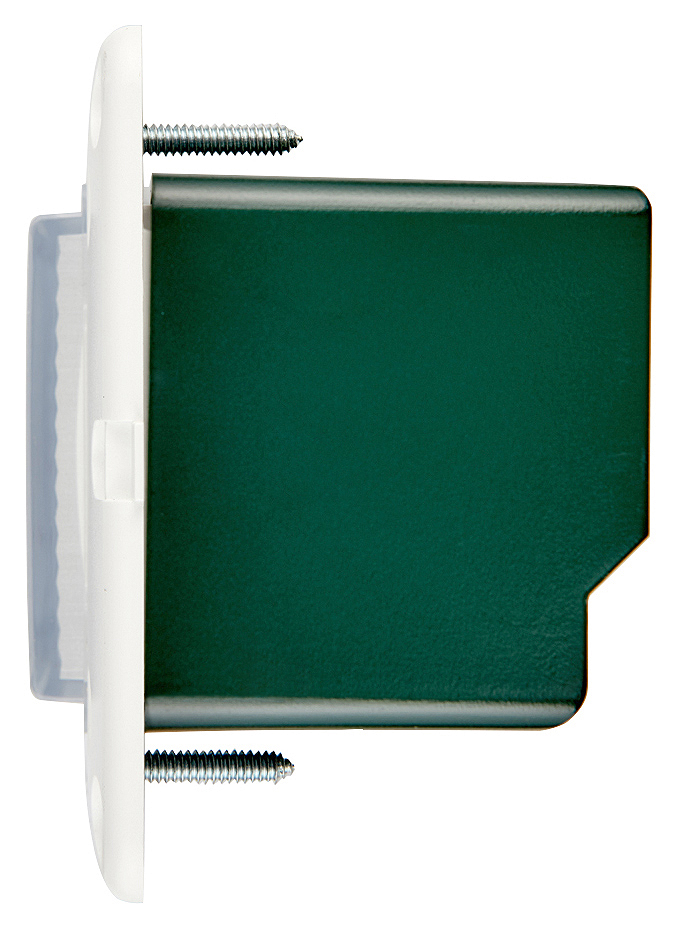

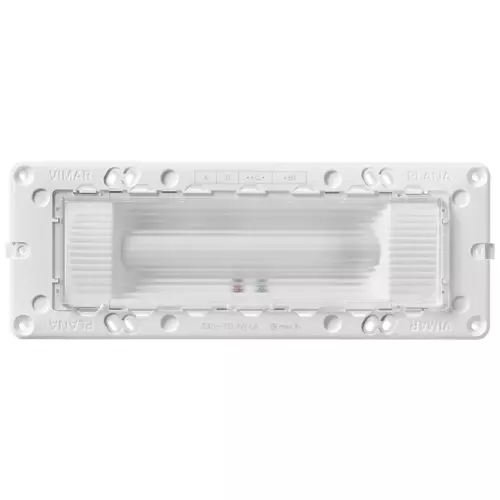

Emergency lighting device 230V
Emergency lighting fitting, 230 V~ 50-60 Hz, Ni-Cd rechargeable battery, FD 4W G5 fluorescent lamp and mounting frame for 6/7-module flush mounting boxes. To complete with 7-module cover plate

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

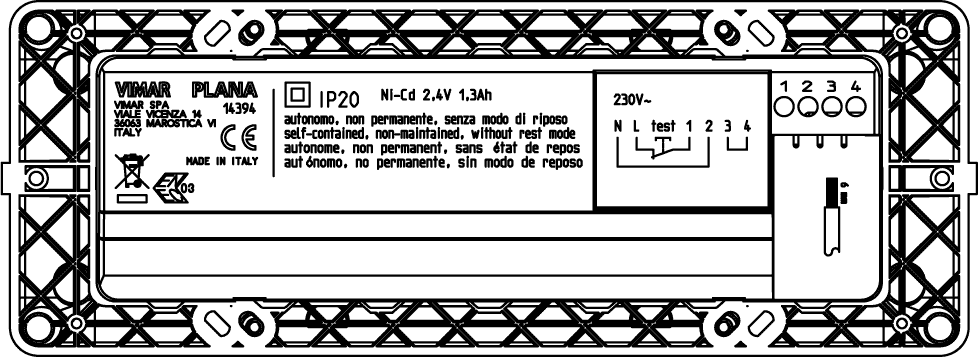

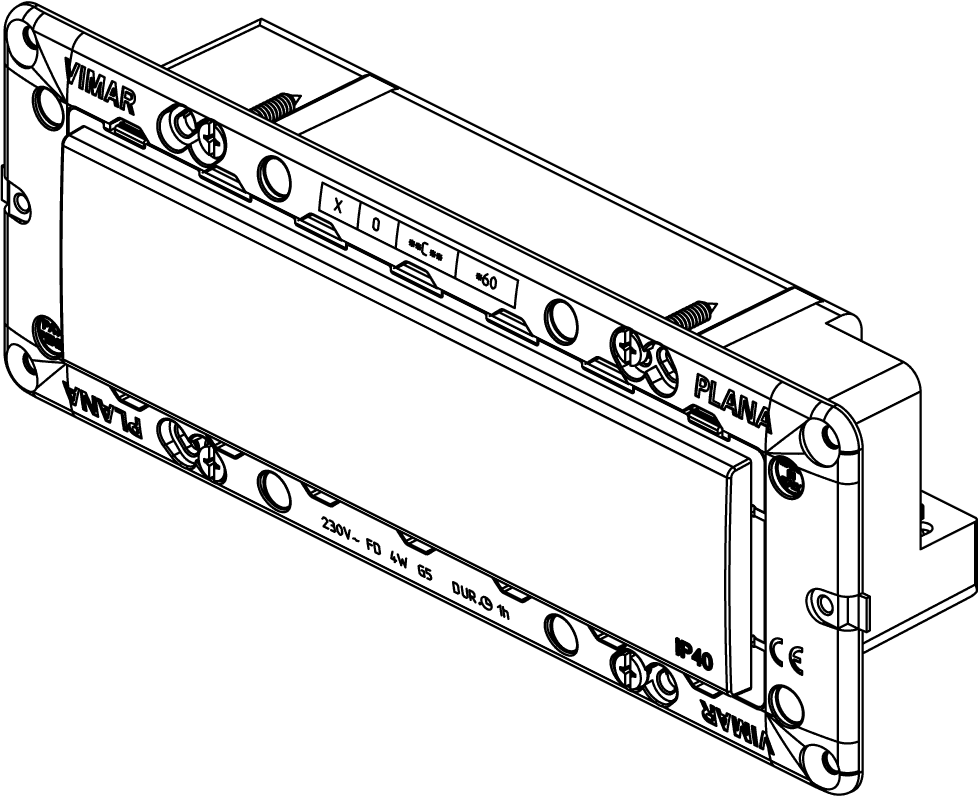

Drawings

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiCd
Lamp type
Fluorescent lamp
With light source
Yes
Housing material
Plastic
Housing colour
White
Material cover
Without cover
Voltage type
AC
Nominal voltage
230,00 - 230,01 V
Degree of protection (IP)
IP40
Protection class
II
Max. system power
4,00 W
Rated luminous flux according to IEC 62722-2-1
26
Width
203,40 mm
Height/depth
74,00 mm
Built-in width
203,40 mm
Built-in height/depth
47,10 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352117693
1 NR
21.4x6.6x9.3 [cm]
470.34 [g]
Question: On the 16440 Idea and 14394 Plana emergency lighting fitting, the green LED occasionally flashes, is this normal?
Answer: Yes, the operation of this device is such that the green LED flashes for about three minutes every hour to indicate that rapid battery recharging is in progress, in order to maintain the maximum degree of efficiency.
