LED-step marker lamp 230V white - 14389

Pdf

14389
Wiring devices / Traditional wiring devices / PLANA / Devices

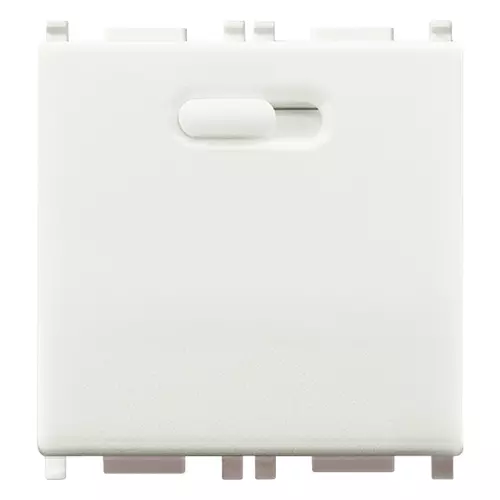

LED-step marker lamp 230V white
Step marker lamp with high-efficiency LED, supply voltage 230 V~ 50-60 Hz, adjustable 3-level beam, white - 2 modules

Product Status
3 - Active

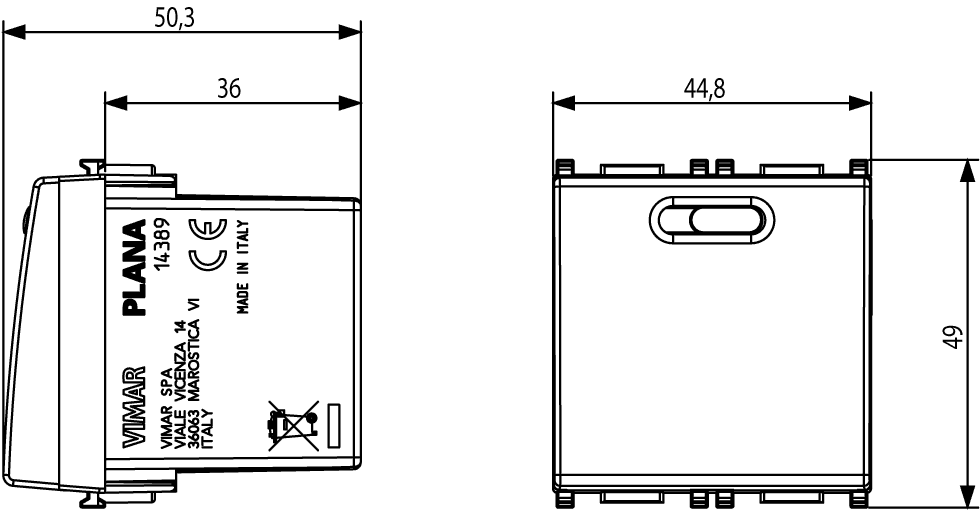

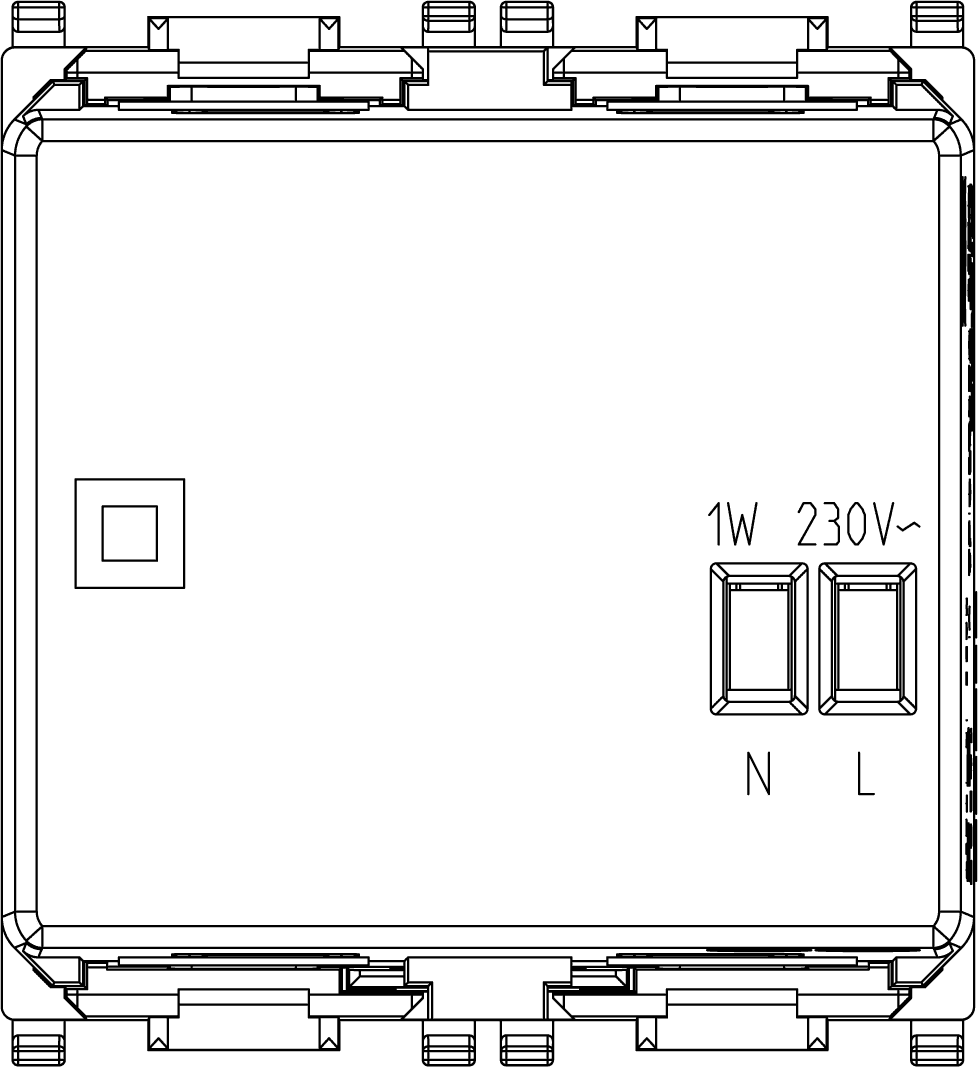

Drawings

Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Number of modules (module system)
2
With light source
Yes
Lamp type
LED not exchangeable
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Colour light source
White
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 V

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352303027
1 NR
6x5.4x5.3 [cm]
50.8 [g]
Barcode Qty 5 NR
8007352303034
5 NR
17.2x13.1x6 [cm]
312.87 [g]
