3-sound-sequence chime 12V white - 14380

Pdf

14380
Wiring devices / Traditional wiring devices / PLANA / Devices

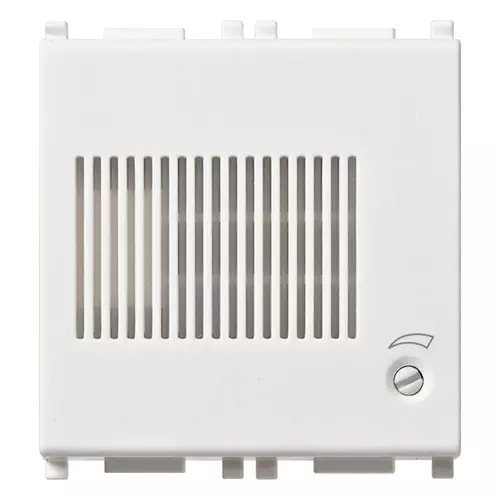

3-sound-sequence chime 12V white

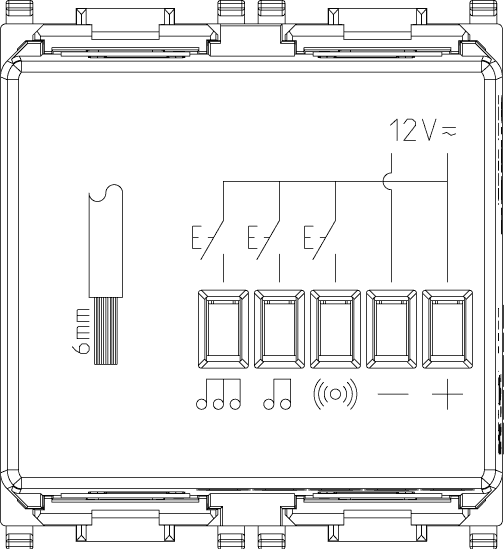

3-sound-sequence electronic chime (three-tone, two-tone, buzzer), adjustable volume, supply voltage 12 V~ 50-60 Hz or 12 Vdc (SELV), white - 2 modules

Product Status
3 - Active

Class group
Optical and acoustic signalling equipment
Class
Bell
Housing colour
White
Housing material
Plastic
Loudness
70 dB
Nominal voltage
12,00 - 12,01 V
Degree of protection (IP)
IP40
Type of current
AC/DC
Built-in battery
No
Mounting method
Flush-mounted
Width in number of modular spacings
2
Wireless
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352117648
1 NR
6x5.4x5.3 [cm]
82.3 [g]
Barcode Qty 5 NR
8007352117655
5 NR
17.2x13.1x6 [cm]
476 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
