120V 50-60Hz buzzer white - 14377

Pdf

14377
Wiring devices / Traditional wiring devices / PLANA / Devices

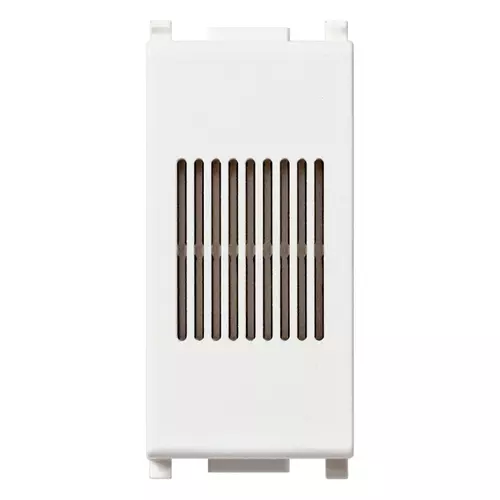

120V 50-60Hz buzzer white
Buzzer, 120 V~ 50-60 Hz, white

Product Status
2 - Will be discontinued

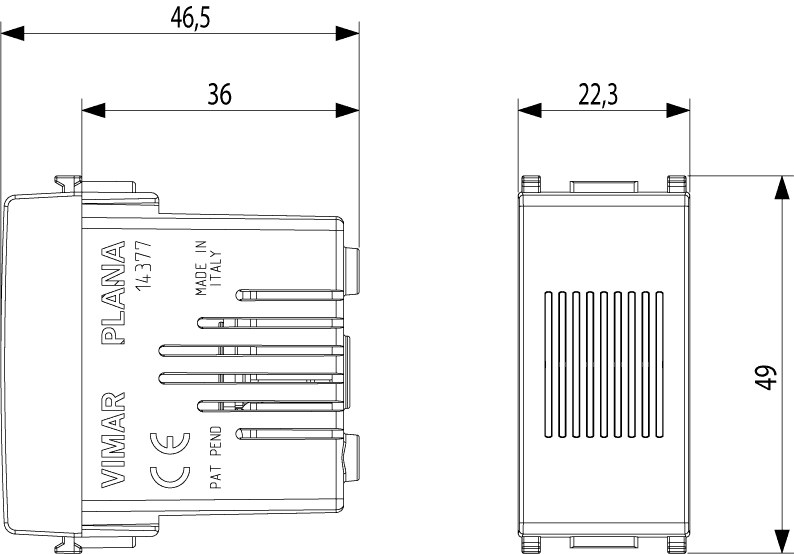

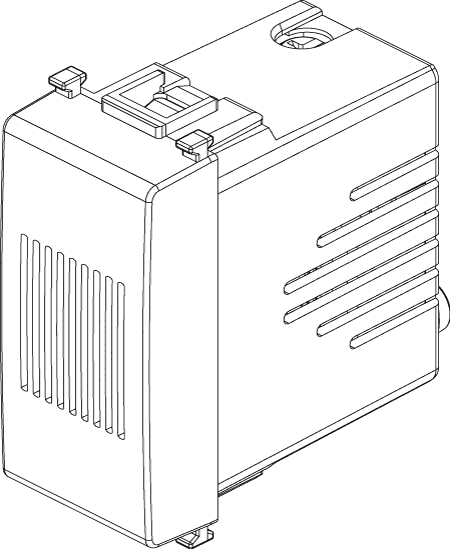

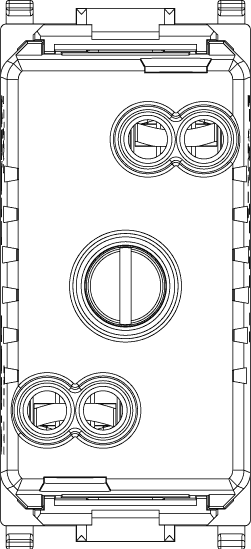

Drawings

Class group
Optical and acoustic signalling equipment
Class
Buzzer
Nominal voltage
120 V
Type of current
AC
Electricity consumption
0,07 A
Degree of protection (IP)
IP40
Loudness
75 dB
Housing material
Plastic
Housing colour
White
Mounting method
Other
Built-in transformer
No

00. CE Marking - EU

19. NOM - Mexico

37. Marking - Morocco

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352106857
1 NR
5.1x2.8x5.3 [cm]
44.27 [g]
Barcode Qty 10 NR
8007352264076
10 NR
14.4x11.6x6 [cm]
490.67 [g]
