120V 50-60Hz bell white - 14372

Pdf

14372
Wiring devices / Traditional wiring devices / PLANA / Devices

120V 50-60Hz bell white
Bell, 120 V~ 50-60 Hz, white

Product Status
2 - Will be discontinued

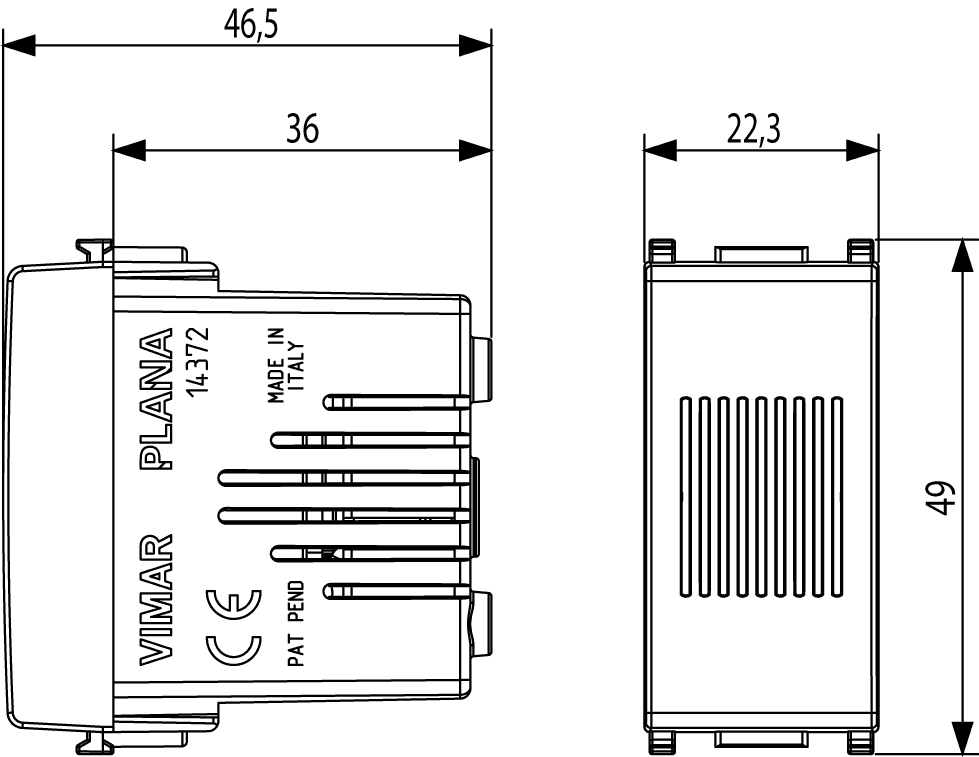

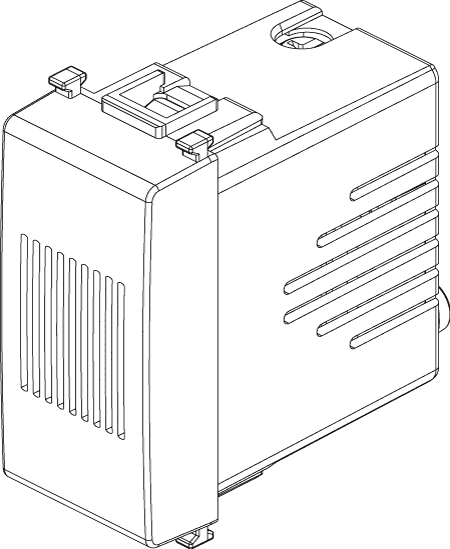

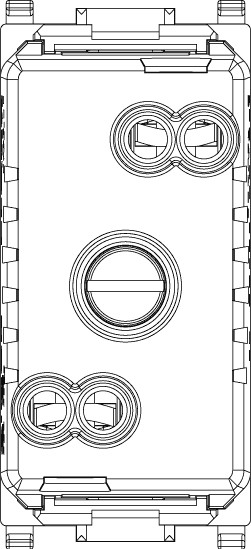

Drawings

Class group
Optical and acoustic signalling equipment
Class
Bell
Housing colour
White
Housing material
Plastic
Loudness
70 dB
Nominal voltage
120,00 - 120,01 V
Degree of protection (IP)
IP40
Type of current
AC
Built-in battery
No
Mounting method
Flush-mounted
Width in number of modular spacings
1
Wireless
No

00. CE Marking - EU

19. NOM - Mexico

37. Marking - Morocco

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352106796
1 NR
5.1x2.8x5.3 [cm]
56.33 [g]
Barcode Qty 10 NR
8007352264069
10 NR
14.4x11.6x6 [cm]
615.13 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
