HDMI 2.1b socket connector white - 14346

Pdf
Vimar - 14346 - HDMI 2.1b socket connector white
Vimar - 14346 - HDMI 2.1b socket connector white

14346
Wiring devices / Traditional wiring devices / PLANA / Devices

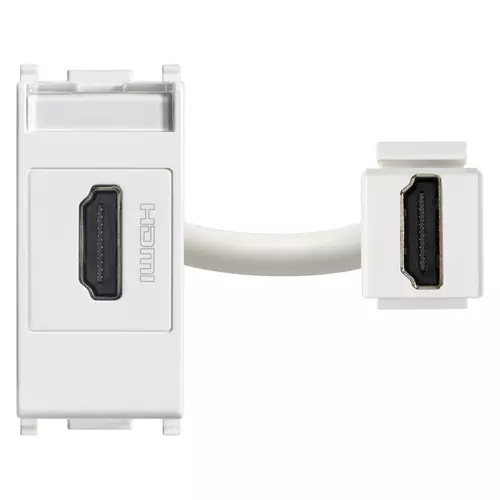

HDMI 2.1b socket connector white
Socket outlet with HDMI 2.1b connector, Keystone fixing, white

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 14346
PNG DXF
rear view art. 14346
PNG DXF
3D view art. 14346
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
HDMI
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,30 mm
Device height
49,00 mm
Device depth
46,90 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352420700
1 NR
14.2x6.7x5.9 [cm]
76.19 [g]
