USB socket connector white - 14345

Pdf
Vimar - 14345 - USB socket connector white
Vimar - 14345 - USB socket connector white

14345
Wiring devices / Traditional wiring devices / PLANA / Devices

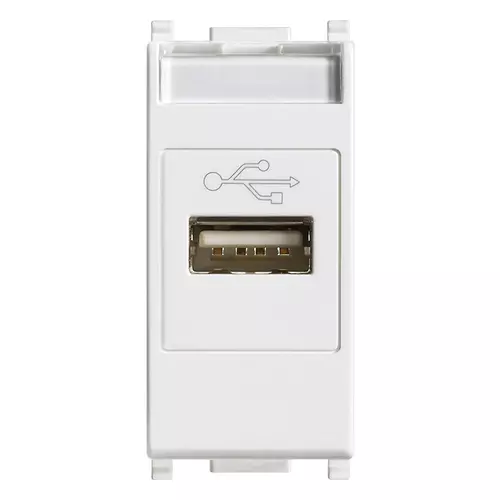

USB socket connector white
Socket outlet with USB connector, screw terminals, white

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 14345
PNG DXF
rear view art. 14345
PNG DXF
3D view art. 14345
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
USB
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Number of modules (module system)
1
With strain relief
Yes
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,30 mm
Device height
49,00 mm
Device depth
41,40 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352420724
1 NR
5.1x4.3x5.3 [cm]
25.86 [g]
Barcode Qty 10 NR
8007352420731
10 NR
26.9x11.6x4.9 [cm]
301.85 [g]
Barcode Qty 200 NR
8007352637429
200 NR
47.5x27x29 [cm]
6,337 [g]
