Israeli phone jack white - 14324

Pdf
Vimar - 14324 - Israeli phone jack white
Vimar - 14324 - Israeli phone jack white

14324
Wiring devices / Traditional wiring devices / PLANA / Devices

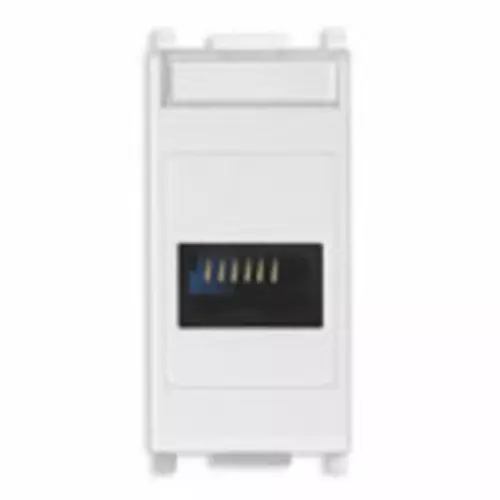

Israeli phone jack white
Phone jack, Israeli standard, screw terminals, white

Product Status
3 - Active

Drawings

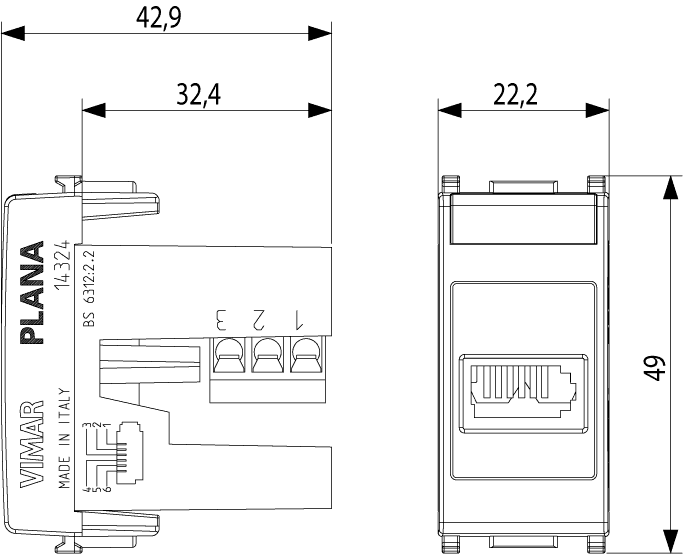

view encumbered art. 14324
PNG DXF

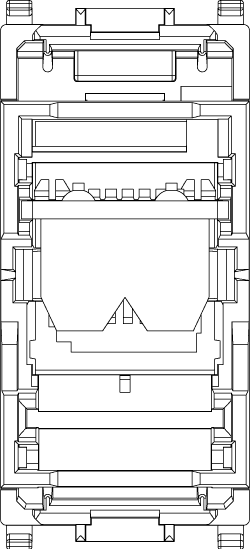

rear view art. 14324
PNG DXF
3D view art. 14324
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
Other
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,30 mm
Device height
49,00 mm
Device depth
42,90 mm
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352408142
1 NR
5.1x2.8x5.3 [cm]
22.63 [g]
Barcode Qty 10 NR
8007352408159
10 NR
14.4x11.6x6 [cm]
271 [g]
Barcode Qty 120 NR
8007352420021
120 NR
37.5x30x13.5 [cm]
3,529.6 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
