RJ11 phone jack 6/4 white - 14320

Pdf
Vimar - 14320 - RJ11 phone jack 6/4 white
Foto gallery #1
Foto gallery #2
Vimar - 14320 - RJ11 phone jack 6/4 white

14320
Wiring devices / Traditional wiring devices / PLANA / Devices

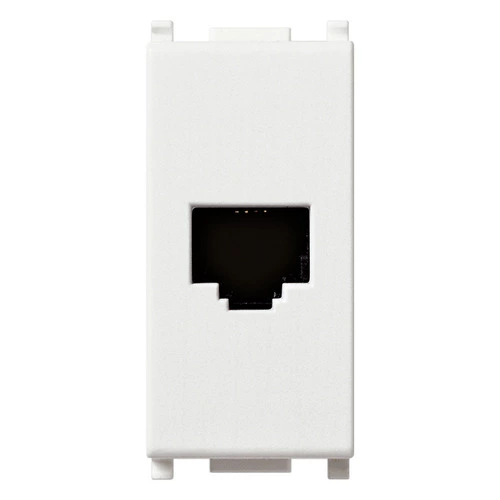

RJ11 phone jack 6/4 white
RJ11 phone jack, 6-position 4-conductor (6/4), screw terminals, white

Product Status
3 - Active

Drawings

view encumbered art. 14320
PNG DXF
rear view art. 14320
PNG DXF
3D view art. 14320
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
UAE/IAE (ISDN)
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Type of fastening
Clamp mounting
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,30 mm
Device height
49,00 mm
Device depth
43,10 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352108769
1 NR
5.1x2.8x5.3 [cm]
22.8 [g]
Barcode Qty 20 NR
8007352108776
20 NR
27x11.6x6 [cm]
520 [g]
Barcode Qty 120 NR
8007352368798
120 NR
37.5x30x13.5 [cm]
3,480 [g]
Barcode Qty 5,760 NR
8007352750425
5,760 NR
120x80x105 [cm]
168,480 [g]
