2P+E 16A P17/11 outlet +C16 CB white - 14273

Pdf
Vimar - 14273 - 2P+E 16A P17/11 outlet +C16 CB white
Vimar - 14273 - 2P+E 16A P17/11 outlet +C16 CB white

14273
Wiring devices / Traditional wiring devices / PLANA / Devices

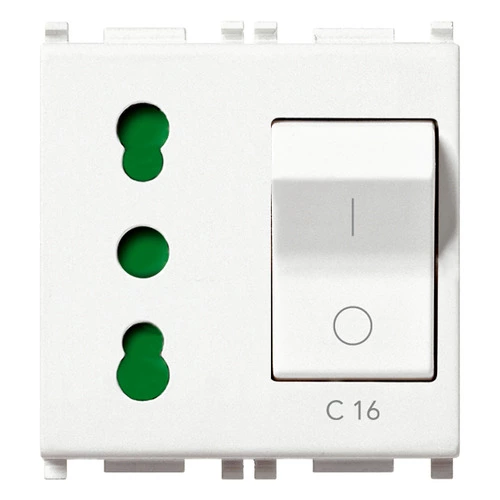

2P+E 16A P17/11 outlet +C16 CB white
2P+E 16 A 250 V~ SICURY Bpresa socket outlet, Italian standard P17/11, interlocked with 1P+N C 16 circuit breaker, supply voltage 230 V~ 50 Hz, breaking capacity 3000 A, white - 2 modules

Product Status
3 - Active

Drawings

view encumbered art. 14273
PNG DXF
rear view art. 14273
PNG DXF
3D view art. 14273
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type Bipasso
Number of units
2
Number of modules (module system)
2
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
16 A
Nominal voltage
230 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
56,30 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352112810
1 NR
6x5.4x5.3 [cm]
98.6 [g]
Barcode Qty 5 NR
8007352112827
5 NR
17.2x13.1x6 [cm]
552 [g]
