2P+E 16A USA+EU SICURY outlet white - 14248

Pdf
Vimar - 14248 - 2P+E 16A USA+EU SICURY outlet white
Vimar - 14248 - 2P+E 16A USA+EU SICURY outlet white

14248
Wiring devices / Traditional wiring devices / PLANA / Devices

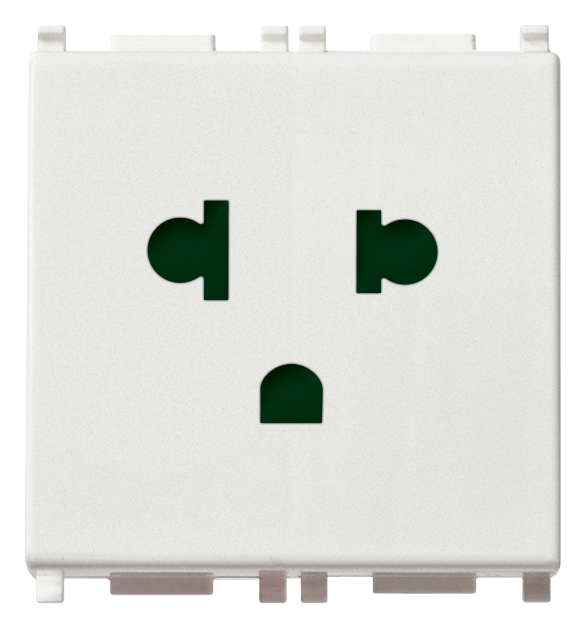

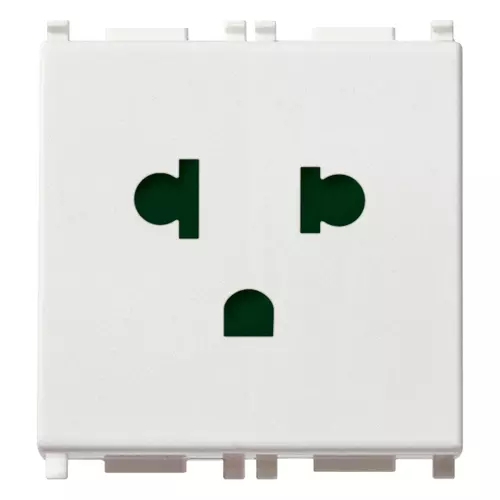

2P+E 16A USA+EU SICURY outlet white
2P+E 16 A 250 V~ SICURY socket outlet, polarized Euro-American standard, white - 2 modules

Product Status
3 - Active

Drawings

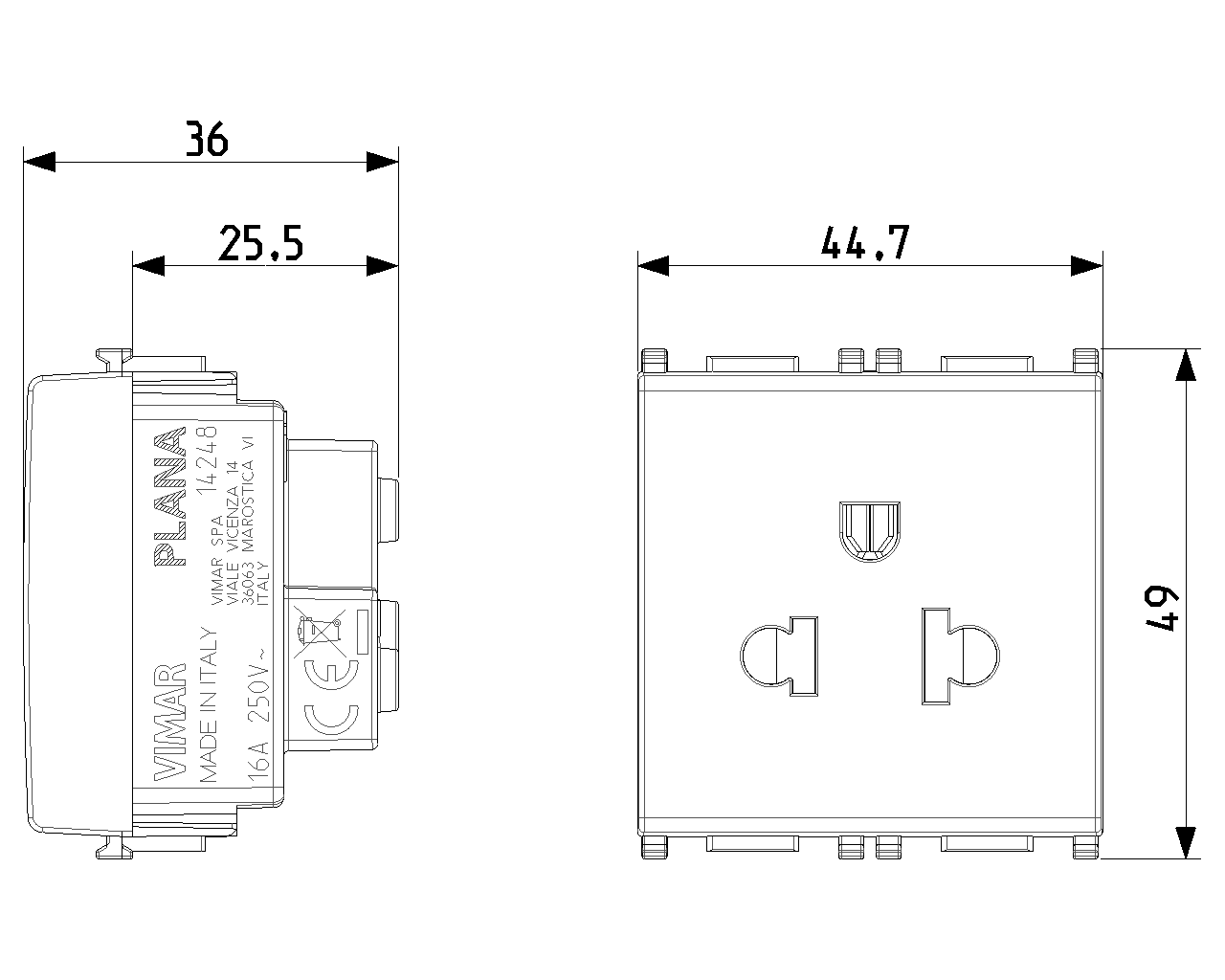

view encumbered art. 14248
PNG DXF
rear view art. 14248
PNG DXF
3D view art. 14248
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
36,00 mm

00. CE Marking - EU

00. CE Marking - EU

29. QCERT - Colombia

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352467538
1 NR
5.1x4.3x5.3 [cm]
45.2 [g]
Barcode Qty 20 NR
8007352467545
20 NR
26.9x11.6x9 [cm]
983 [g]
Barcode Qty 240 NR
8007352626171
240 NR
38x28.5x35.5 [cm]
12,336 [g]
