2P 16A USA+EU SICURY outlet ø4,8mm white - 14234

Pdf
Vimar - 14234 - 2P 16A USA+EU SICURY outlet ø4,8mm white
Vimar - 14234 - 2P 16A USA+EU SICURY outlet ø4,8mm white

14234
Wiring devices / Traditional wiring devices / PLANA / Devices

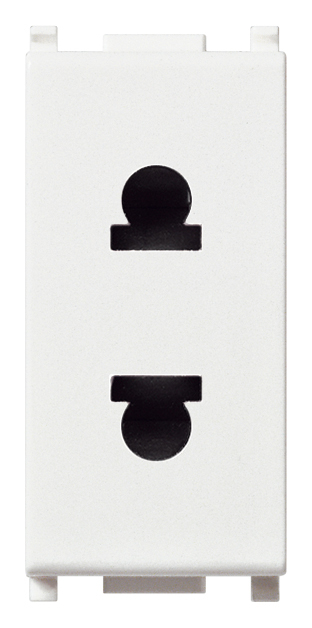

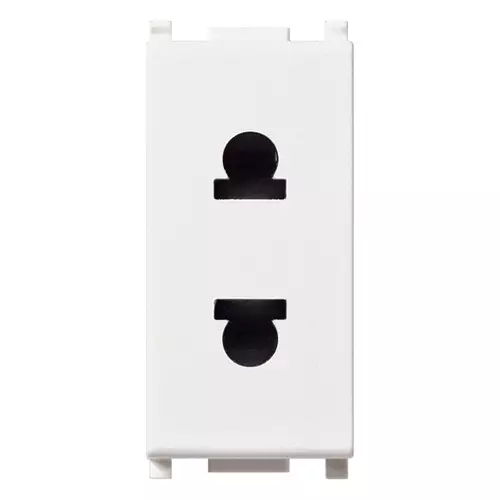

2P 16A USA+EU SICURY outlet ø4,8mm white
2P 16 A 250 V~ SICURY socket outlet, Euro-American standard (parallel flat pins and ø 4,8 mm pins), white

Product Status
3 - Active

Drawings

view encumbered art. 14234
PNG DXF
rear view art. 14234
PNG DXF
3D view art. 14234
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
1
Number of modules (module system)
1
Connection type
Screwed terminal
With hinged lid
No
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Fault current protection
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Impact strength
Other
Device width
22,30 mm
Device height
49,00 mm
Device depth
37,50 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352605169
1 NR
4.1x2.8x5.3 [cm]
29.2 [g]
Barcode Qty 20 NR
8007352605176
20 NR
21.4x11.6x6 [cm]
644.2 [g]
Barcode Qty 460 NR
8007352605183
460 NR
57.5x22.5x30 [cm]
15,330 [g]
