Switched 2P+E 5A English outlet white - 14215

Pdf
Vimar - 14215 - Switched 2P+E 5A English outlet white
Vimar - 14215 - Switched 2P+E 5A English outlet white

14215
Wiring devices / Traditional wiring devices / PLANA / Devices

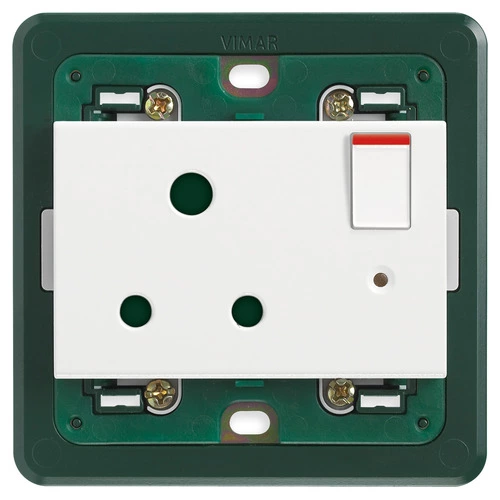

Switched 2P+E 5A English outlet white
2P switched 2P+E 5 A 250 V~ SICURY socket outlet, English standard, with built-in frame for square British standard mounting boxes, to complete with 3-module British standard cover plate, white

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 14215
PNG DXF
rear view art. 14215
PNG DXF
3D view art. 14215
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
British Standard
Number of units
2
Number of modules (module system)
3
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
5 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
82,50 mm
Device height
82,50 mm
Device depth
29,50 mm

00. CE Marking - EU

08. ASTA - UK

30. G-Mark - Gulf Countries

37. Marking - Morocco

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352399747
1 NR
8.5x3.9x8.6 [cm]
101.3 [g]
Barcode Qty 10 NR
8007352399754
10 NR
20.7x18.5x9.6 [cm]
1,112 [g]
