Antibacterial 2P+E 16A French SICURY out - 14212.AB

Pdf
Vimar - 14212.AB - Antibacterial 2P+E 16A French SICURY out
Vimar - 14212.AB - Antibacterial 2P+E 16A French SICURY out

14212.AB
Wiring devices / Traditional wiring devices / PLANA / Devices

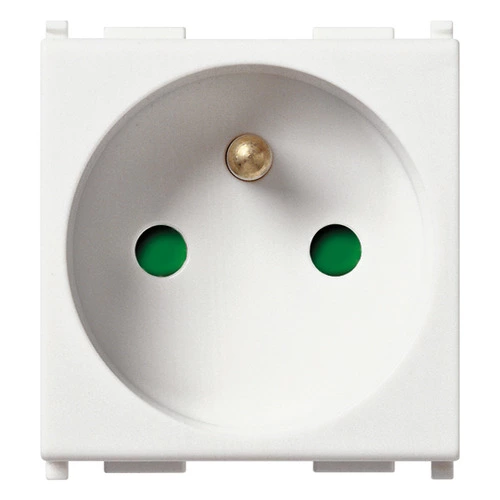

Antibacterial 2P+E 16A French SICURY out
2P+E 16 A 250 V~ SICURY socket outlet, French standard, with antibacterial treatment, white - 2 modules

Product Status
3 - Active

Drawings

view encumbered art. 14212.AB
PNG DXF
rear view art. 14212.AB
PNG DXF
3D view art. 14212.AB
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
35,90 mm

00. CE Marking - EU

04. NF - France

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352499799
1 NR
5.1x4.3x5.3 [cm]
43.8 [g]
Barcode Qty 20 NR
8007352499805
20 NR
27.4x11.5x9.2 [cm]
963.1 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
