Antibact.2P+E 16A universal+cover outlet - 14210.C.AB.R

Pdf

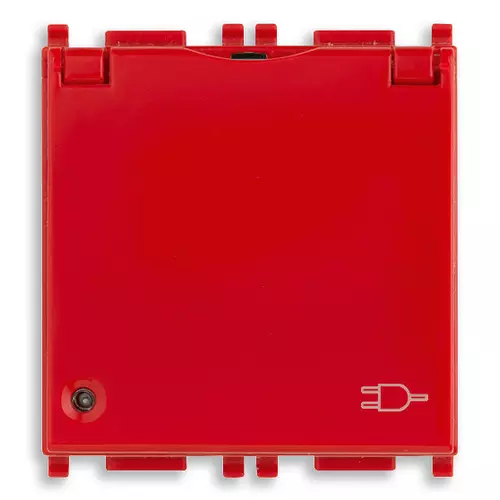

Vimar - 14210.C.AB.R - Antibact.2P+E 16A universal+cover outlet

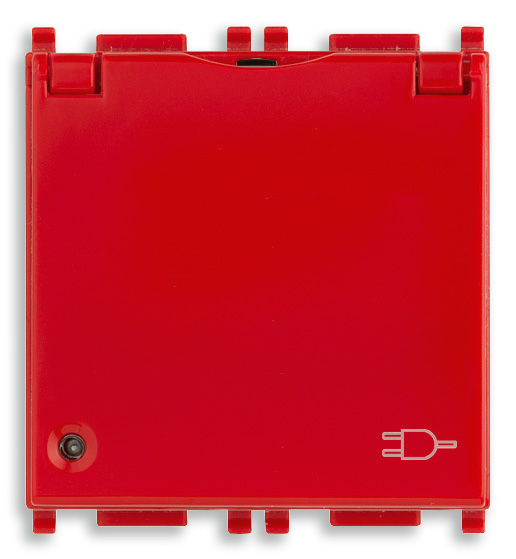

Vimar - 14210.C.AB.R - Antibact.2P+E 16A universal+cover outlet

14210.C.AB.R
Wiring devices / Traditional wiring devices / PLANA / Devices

Antibact.2P+E 16A universal+cover outlet

Product Status
3 - Active

Drawings

view encumbered art. 14210.C.AB.R
PNG DXF
rear view art. 14210.C.AB.R
PNG DXF
3D view art. 14210.C.AB.R
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of active contacts (round)
0
Number of active contacts (flat)
0
With signal lamp
Yes
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
2
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
Yes
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Red
RAL-number (similar)
3001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
Additional safety power supply (red)
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Anti-bacterial treatment
Yes
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
40,50 mm
Min. depth of built-in installation box
45 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
For heavy conditions according to VDE
No

00. CE Marking - EU

00. CE Marking - EU

03. CSv-IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352728059
1 NR
5.1x4.3x5.3 [cm]
51 [g]
Barcode Qty 10 NR
8007352728066
10 NR
26.9x11.6x4.9 [cm]
572 [g]
Barcode Qty 200 NR
8007352728073
200 NR
47.5x27x29 [cm]
11,830 [g]
