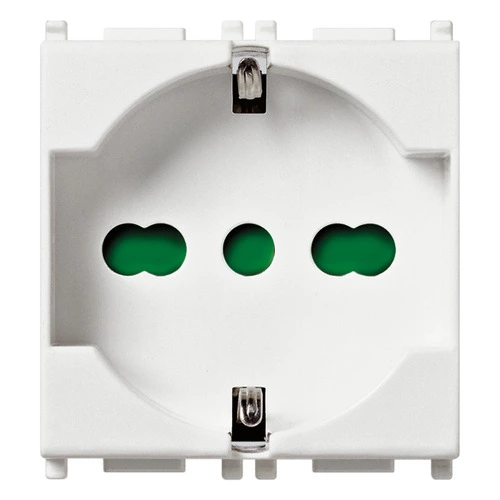

2P+E 16A universal outlet white - 14210

Pdf
Vimar - 14210 - 2P+E 16A universal outlet white
Foto gallery #1
Foto gallery #2
Foto gallery #3
Foto gallery #4
Vimar - 14210 - 2P+E 16A universal outlet white

14210
Wiring devices / Traditional wiring devices / PLANA / Devices

2P+E 16A universal outlet white
2P+E 16 A 250 V~ SICURY socket outlet, universal, P40 Italian standard, white - 2 modules

Product Status
3 - Active

Drawings

view encumbered art. 14210
PNG DXF
rear view art. 14210
PNG DXF
3D view art. 14210
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
25,00 mm

00. CE Marking - EU

03. CSv-IMQ - Italy

07. INGCER - Chile

37. Marking - Morocco

50. Product Environm. Profile

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352106994
1 NR
5.1x4.3x5.3 [cm]
46.73 [g]
Barcode Qty 20 NR
8007352107007
20 NR
26.9x11.6x9 [cm]
1,018.6 [g]
Barcode Qty 240 NR
8007352263215
240 NR
38x28.5x35.5 [cm]
12,790 [g]
Barcode Qty 5,760 NR
8007352750388
5,760 NR
120x80x105 [cm]
306,950 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
