2P+E 16A P17/11 outlet Silver - 14203.SL

Pdf
Vimar - 14203.SL - 2P+E 16A P17/11 outlet Silver

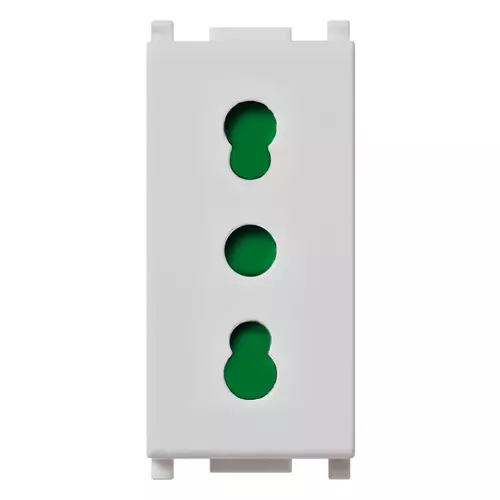

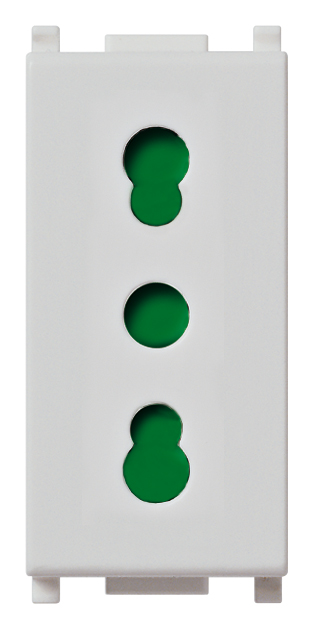

Foto gallery #1
Foto gallery #2
Vimar - 14203.SL - 2P+E 16A P17/11 outlet Silver

14203.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

2P+E 16A P17/11 outlet Silver
2P+E 16 A 250 V~ SICURY Bpresa socket outlet, Italian standard P17/11, Silver

Product Status
3 - Active

You may also be interested in

14593.SL
14593.SL - Connected actuator 16A Silver

Drawings

view encumbered art. 14203.SL
PNG DXF

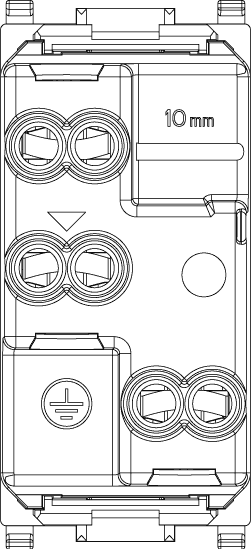

rear view art. 14203.SL
PNG DXF

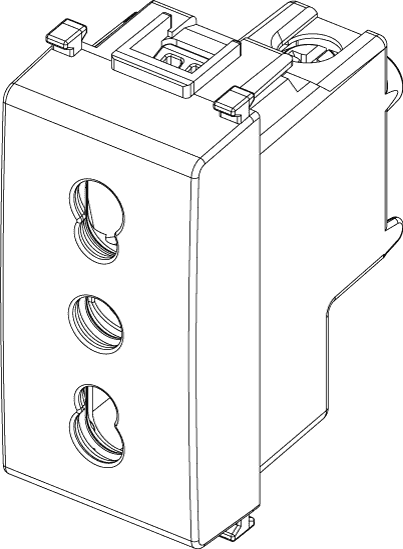

3D view art. 14203.SL
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type Bipasso
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Silver
RAL-number (similar)
9006
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
22,30 mm
Device height
49,00 mm
Device depth
34,50 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352311008
1 NR
4.1x2.8x5.3 [cm]
31.2 [g]
Barcode Qty 50 NR
8007352311015
50 NR
21.6x11.6x14.3 [cm]
1,658.07 [g]
Barcode Qty 500 NR
8007352352049
500 NR
57.5x22.5x30 [cm]
17,102 [g]
Barcode Qty 10,500 NR
8007352352056
10,500 NR
80x120x103 [cm]
366,142 [g]
