IR TRIAC-switch 230V Silver - 14184.SL

14184.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

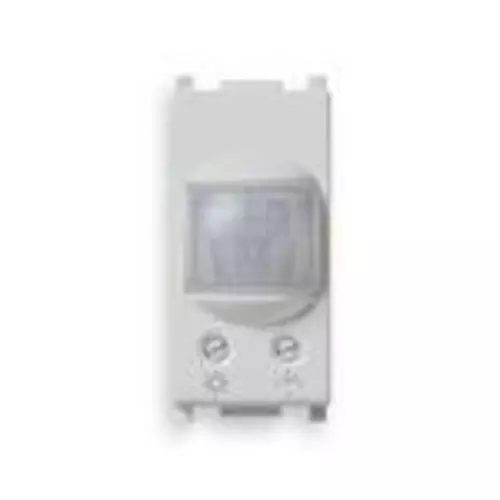

IR TRIAC-switch 230V Silver
Automatic lighting switch with IR motion sensor, supply voltage 230 V~ 50-60 Hz for 60-300 W incandescent lamps, adjustable dusk/dawn sensor threshold and time-delay cycle, Silver

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (947 kb)
• Full Multilanguage instructions sheet (1103 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Electronic insert for domestic switching devices

Model
Other

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Radio-controlled
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Surface protection
Lacquered

Surface finishing
Glossy

Colour
Silver

RAL-number (similar)
9006

Transparent
No

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

---

Barcode

8007352328389

1 NR

5.1x4.3x5.3 [cm]

56.49 [g]

8007352328396

5 NR

14.4x11.6x6 [cm]

330.93 [g]
