SET/RESET device Silver - 14183.SL

14183.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

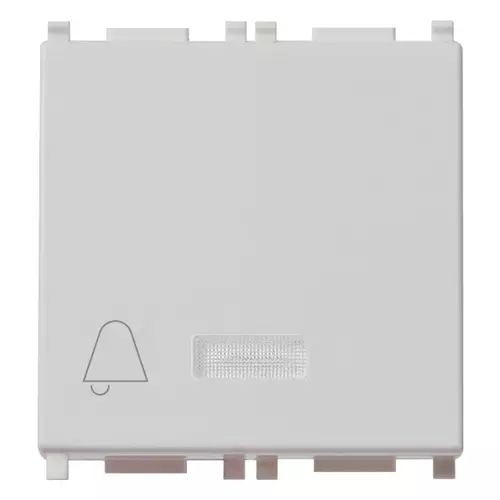

SET/RESET device Silver
SET/RESET push button for emergency call system, visible in darkness, 2 NO 5 A 250 V~ relay outputs, for acoustic and optical signals, supply voltage 12-24 V~ 50-60 Hz or 12-24 V d.c. (SELV), Silver - 2 modules. SET with built-in push button or from peripheral NC push buttons connected in series. RESET with peripheral NC buttons connected in series

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (725 kb)

---

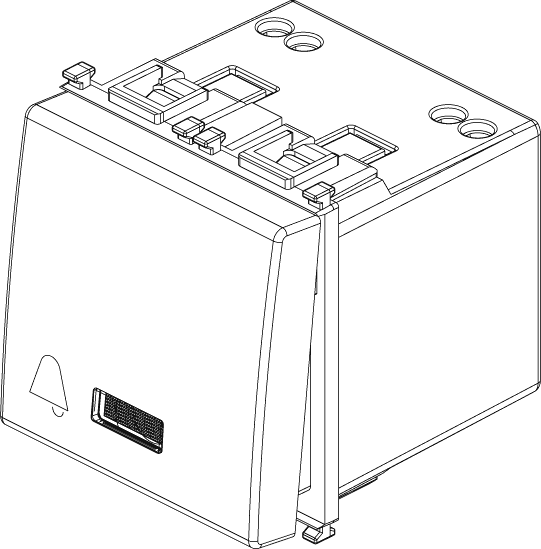

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Electronic insert for domestic switching devices

Model
Other

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
2

Radio-controlled
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Surface protection
Lacquered

Surface finishing
Glossy

Colour
Silver

RAL-number (similar)
9006

Transparent
No

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352311244

1 NR

11.2x9.6x9.8 [cm]

146.7 [g]
