IR relay-receiver 230V white - 14172

14172
Wiring devices / Traditional wiring devices / PLANA / Devices

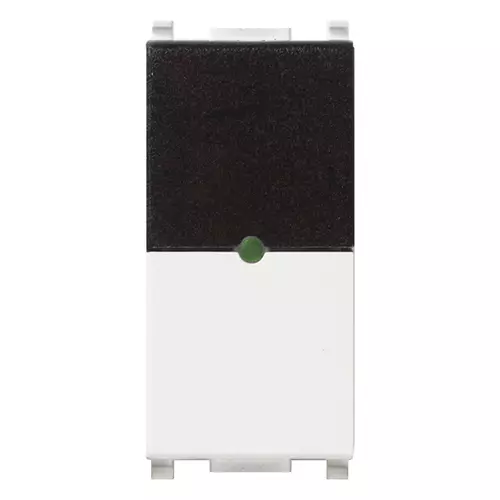

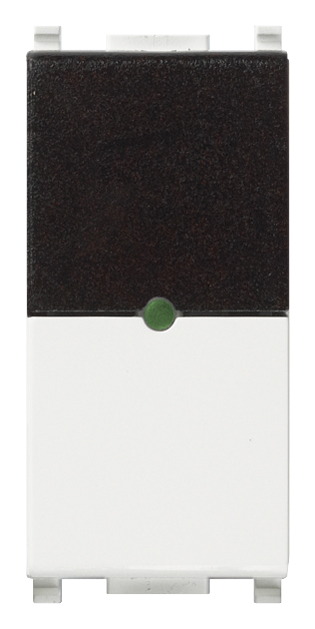

IR relay-receiver 230V white
Infrared receiver, NO 6 A 230 V~ relay output, control with built-in push button, 01849 remote control or from peripheral NO push buttons, mono-or-bistable mode, visible in darkness, supply voltage 230 V~ 50-60 Hz, white

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (661 kb)

---

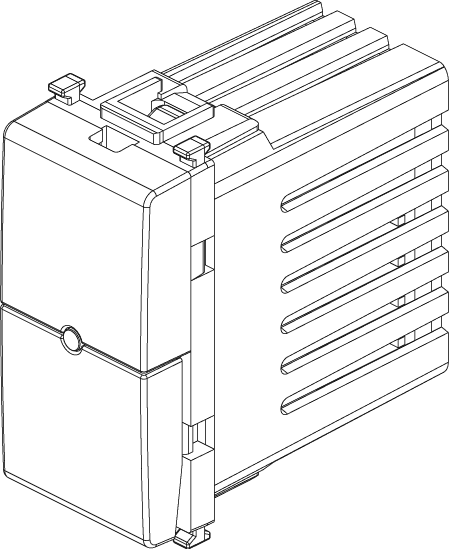

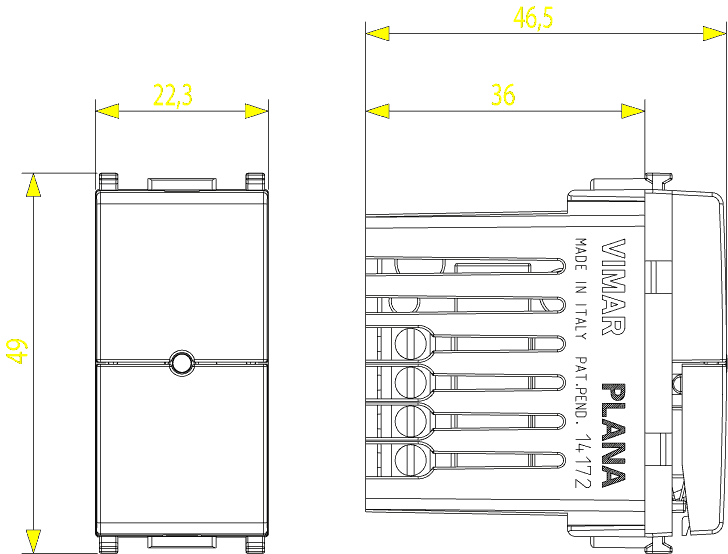

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Electronic insert for domestic switching devices

Model
Other

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Radio-controlled
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Transparent
No

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

---

Barcode

8007352301344

1 NR

5.1x4.3x5.3 [cm]

50.5 [g]

8007352301351

5 NR

14.4x11.6x6 [cm]

300.6 [g]
