MASTER dimmer 230V 500W/VA 2M white - 14165

Pdf
Vimar - 14165 - MASTER dimmer 230V 500W/VA 2M white
Vimar - 14165 - MASTER dimmer 230V 500W/VA 2M white

14165
Wiring devices / Traditional wiring devices / PLANA / Devices

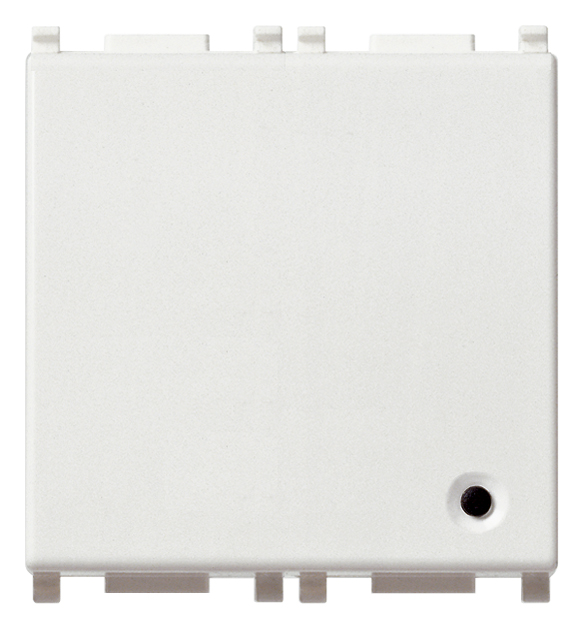

MASTER dimmer 230V 500W/VA 2M white
Dimmer, supply voltage 230 V~ for: 40-500 W to 50 Hz or 40-400 W to 60 Hz incandescent lamps, 40-500 VA to 50 Hz or 40-400 VA to 60 Hz ferromagnetic transformers, control and regulation with built-in or from peripheral NO push buttons, MASTER function for 14166 and 20166, MOSFET technology, visible in darkness, fuse protection, white - 2 modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

view encumbered art. 14165
PNG DXF
rear view art. 14165
PNG DXF

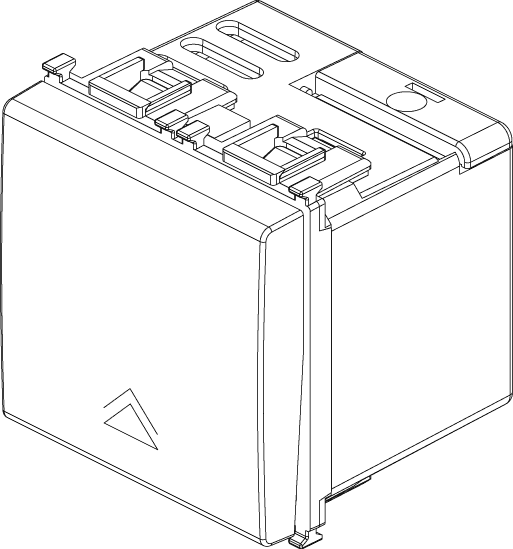

3D view art. 14165
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Push button
Type of load
Inductive load
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
230,00 - 230,01 V
Device width
44,80 mm
Device height
49,00 mm
Device depth
43,00 mm

00. CE Marking - EU

01. IMQ - Italy

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352387669
1 NR
6x5.4x5.3 [cm]
79.4 [g]
Barcode Qty 5 NR
8007352387676
5 NR
17.2x13.1x6 [cm]
453.9 [g]
