Dimmer 230V 100-500W white - 14150

Pdf
Vimar - 14150 - Dimmer 230V 100-500W white
Vimar - 14150 - Dimmer 230V 100-500W white

14150
Wiring devices / Traditional wiring devices / PLANA / Devices

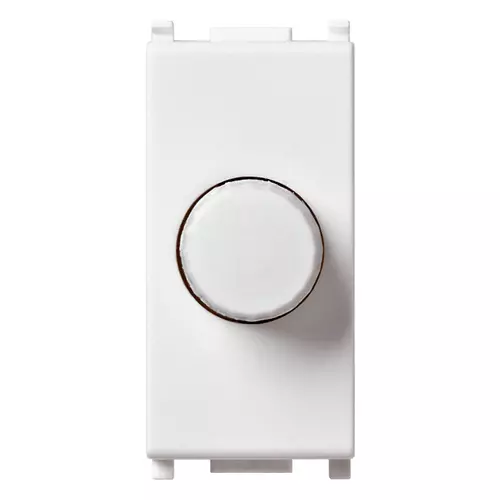

Dimmer 230V 100-500W white
Dimmer, 230 V~ 50-60 Hz, for: 100-500 W incandescent lamps, control and regulation by rotary potentiometer, visible in darkness, white

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 14150
PNG DXF
rear view art. 14150
PNG DXF

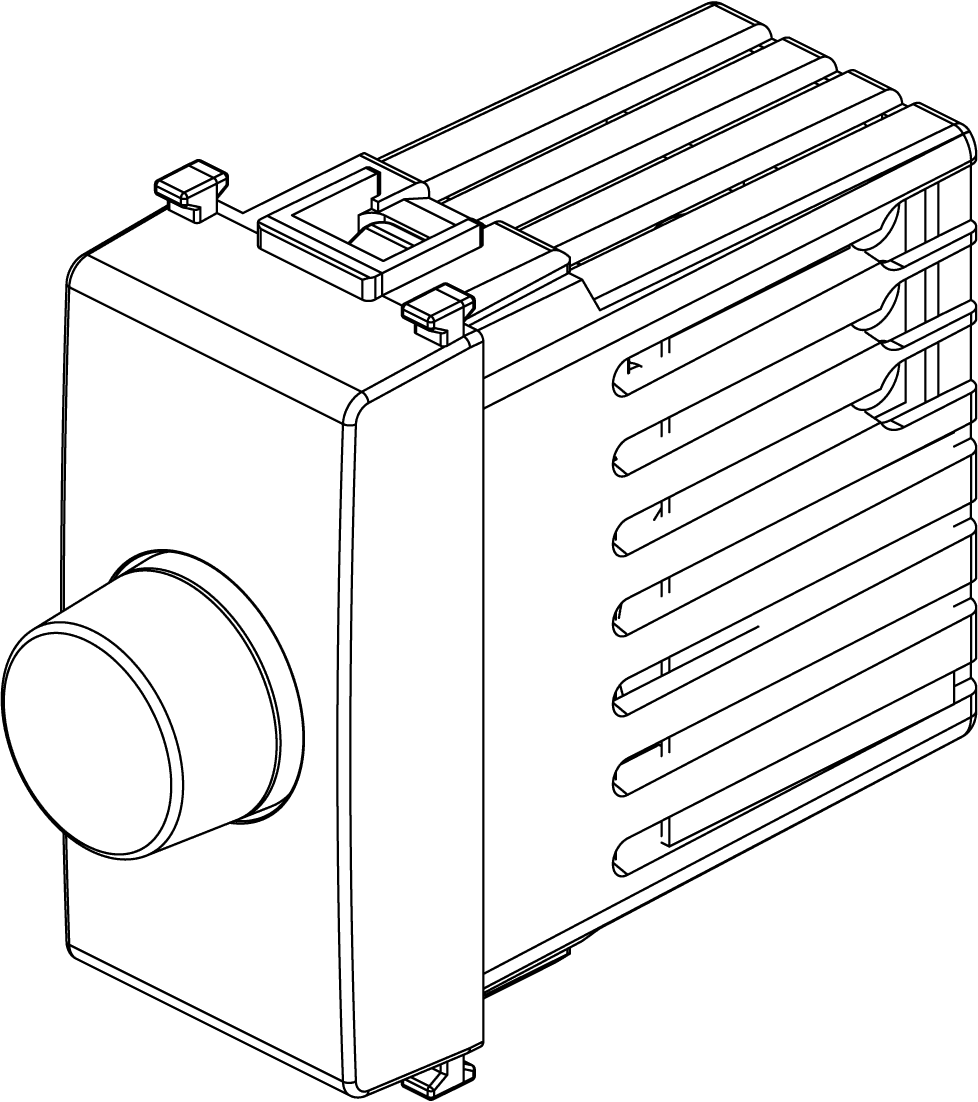

3D view art. 14150
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn button
Type of load
Resistive load
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
230,00 - 230,01 V
Device width
22,30 mm
Device height
49,00 mm
Device depth
58,50 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352117501
1 NR
6x2.8x5.3 [cm]
60.97 [g]
Barcode Qty 20 NR
8007352117518
20 NR
28.1x13.1x6 [cm]
1,285.33 [g]
