SLAVE dimmer 120-230V white - 14149

Pdf
Vimar - 14149 - SLAVE dimmer 120-230V white
Vimar - 14149 - SLAVE dimmer 120-230V white

14149
Wiring devices / Traditional wiring devices / PLANA / Devices

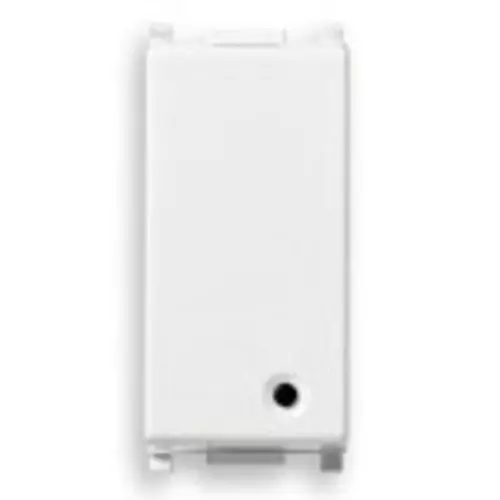

SLAVE dimmer 120-230V white
SLAVE dimmer, 120-230 V~ 50-60 Hz, for: 40-500/40-800 W incandescent lamps, 40-300/40-500 VA ferromagnetic transformers, control by 14148 dimmer, TRIAC technology, visible in darkness, white

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

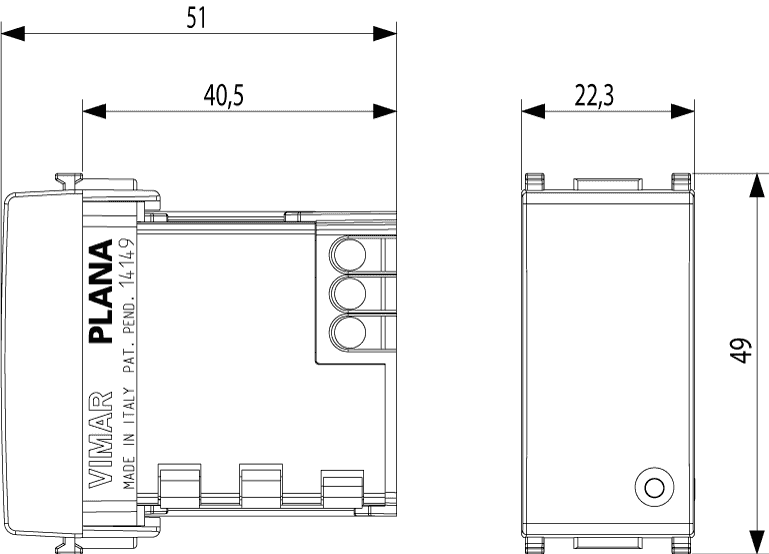

view encumbered art. 14149
PNG DXF

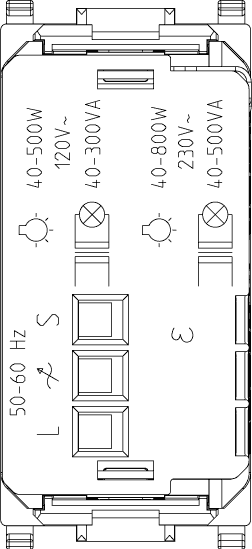

rear view art. 14149
PNG DXF

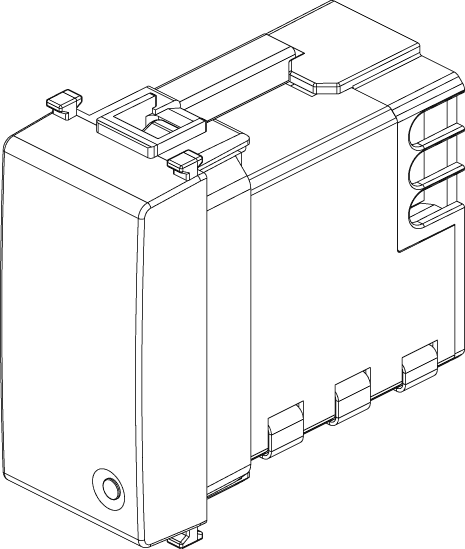

3D view art. 14149
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Other
Type of load
Inductive load
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 230,00 V
Frequency
50,00 - 60,00 HZ
Control voltage
120,00 - 230,00 V
Device width
22,30 mm
Device height
49,00 mm
Device depth
54,80 mm
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352328167
1 NR
5.1x4.3x5.3 [cm]
49.49 [g]
Barcode Qty 5 NR
8007352328174
5 NR
14.4x11.6x6 [cm]
298.4 [g]
